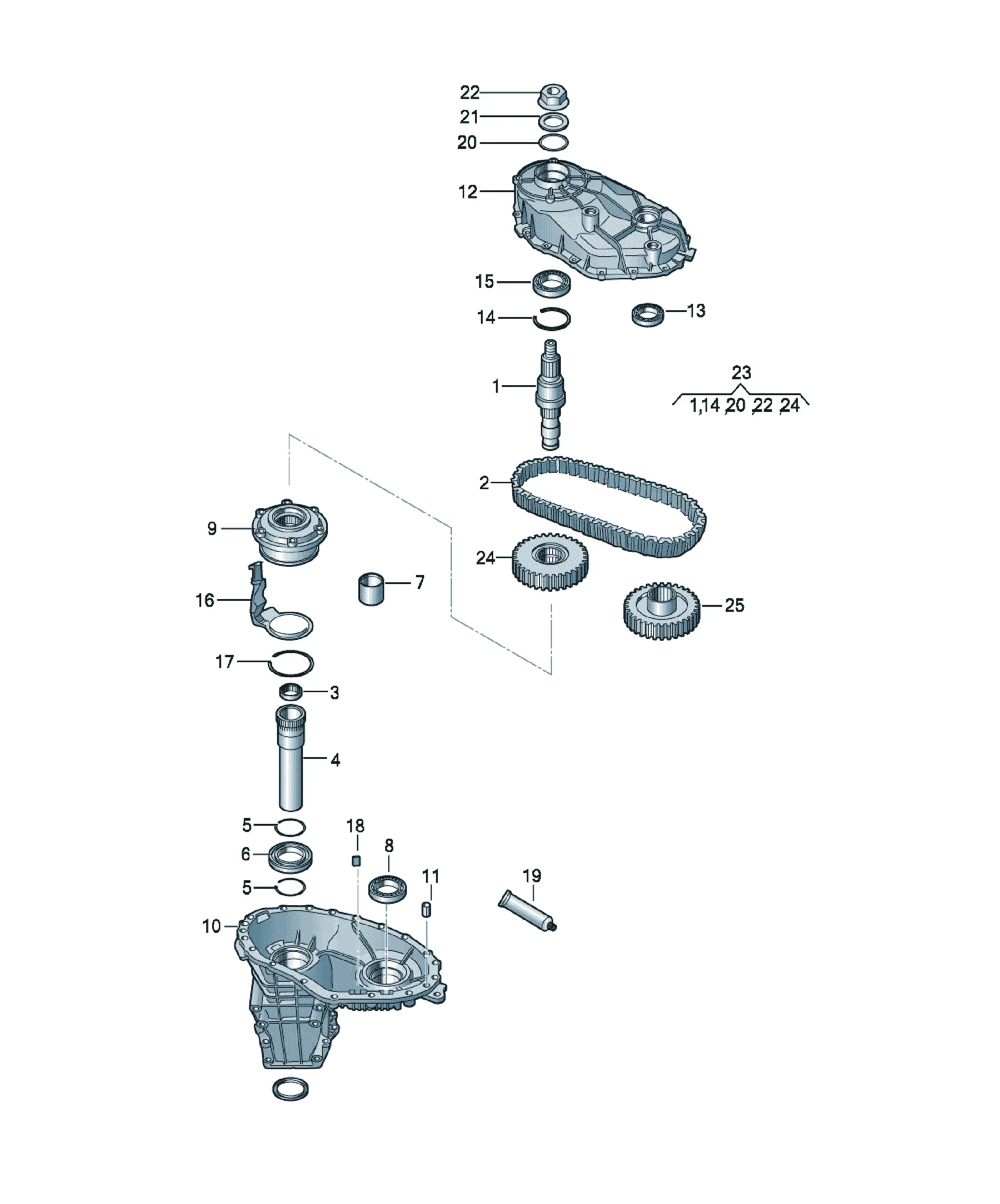

Приводная цепь

[Name] [Note] [QTY]

Repair set for drive chain sprocket 1

(for modified vehicles) 1000NM

repair set

0AQ311865A Output shaft 1

0AQ341209A Chain sprocket upper 1

0AQ341570A Chain sprocket lower 1

0AQ341125A Drive chain 1

[Name] [QTY]

1 set attachment parts 1

transfer box housing

repair set

Flat head multi-point socket bolt M8X35 16

[Name] [QTY]

Output shaft 1

[Name] [QTY]

Output shaft 1

Replacements: 0AQ398101B

[Name] [QTY]

Centre sleeve 2

[Name] [QTY]

grooved ball bearing 1

[Name] [QTY]

Securing ring 2

[Name] [QTY]

grooved ball bearing 1

[Name] [QTY]

oil drip tray 1

[Name] [QTY]

Securing ring 2

[Name] [QTY]

Magnet 1

[Name] [Note] [QTY]

Silicone sealant 80ML 1

Replacements: D 174003M2

[Name] [QTY]

Drive chain 1

[Name] [QTY]

Drive chain 1

[Name] [QTY]

O-ring 1

[Name] [Note] [QTY]

thrust washer 40X22X5 1

[Name] [Note] [QTY]

Hexagon nut M20X1,5 1

[Name] [Note] [QTY]

Repair set for drive chain sprocket 1

also use: 0BU 341 751 A 1

Accompanying details: 0BU341751A

Replacements: 0AQ398101B

repair set

ZSB KETTENRAD 1

repair set

AUSGANGSWELLE HINTEN 1

repair set

O-RING FLANSCH 1

repair set

Collar nut 1

AUDI NUMMER WHT 001 971

Securing ring 1

[Name] [Note] [QTY]

Chain sprocket upper 1

[Name] [Note] [QTY]

Chain sprocket lower 1

[Name] [Note] [QTY]

Chain sprocket lower 1

[Name] [QTY]

needle bearing - 1

[Name] [Note] [Model info] [QTY]

Input shaft for engine: PR:T8T,T41, 1

TA0,TE1

gearbox code: KJZ

contains: 0AQ 401 301

0AQ 311 321 B

0AQ 311 321 A

0AQ 409 775

[Name] [QTY]

Input shaft 1

[Name] [Note] [Model info] [QTY]

Input shaft for engine: PR:TE5 1

gearbox code: KHF

contains: 0AQ 401 301

0AQ 311 321 B

0AQ 311 321 A

0AQ 409 775

[Name] [QTY]

Securing ring 2

[Name] [QTY]

grooved ball bearing 1

[Name] [QTY]

Sleeve 1

[Name] [QTY]

grooved ball bearing 1

[Name] [Note] [QTY]

centre differential, self- locking 1

also use: 0AQ 398 101 1

Accompanying details: 0AQ398101

[Name] [QTY]

centre differential, self- locking 1
