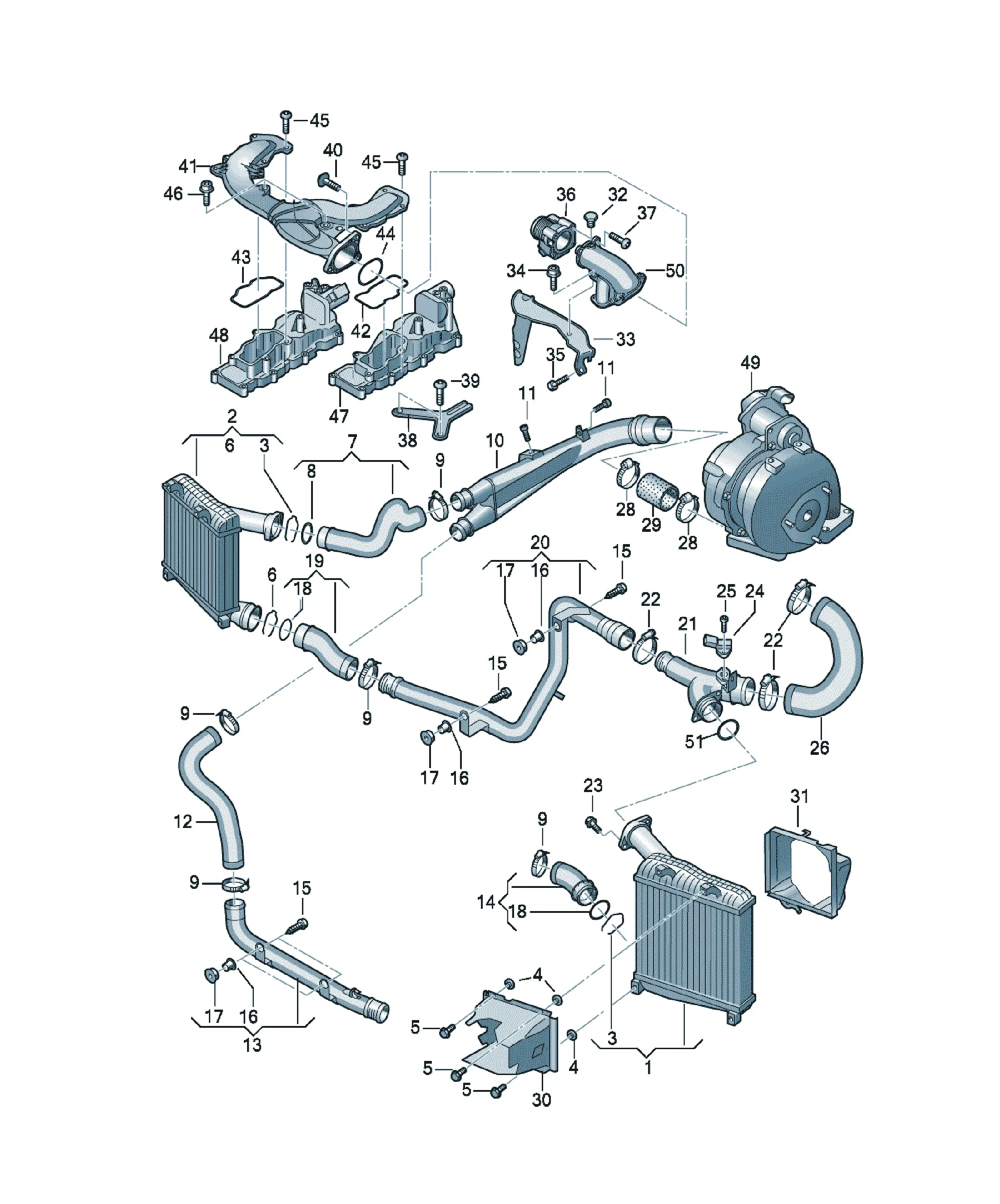

Система охлаждения наддувочного воздуха

[Name] [Note] [QTY]

Ball pin 15X12 2

Included in position: 41

[Name] [Note] [QTY]

O-ring 64,2X2 1

[Name] [Note] [QTY]

Ball pin 15X12 2

Intake manifold

Included in position: 41

[Name] [Note] [QTY]

Charge air cooler left 1

Replacements: 7L6145803F

[Name] [QTY]

charge air tube 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X12 2

[Name] [Note] [QTY]

Pressure hose 1

contains: N 106 198 01 2

[Name] [QTY]

charge air tube 1

[Name] [Note] [QTY]

Pressure hose 1

contains: N 106 198 01 2

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X25 4

[Name] [Note] [QTY]

bush 7,5MM 2

[Name] [QTY]

Grommet 2

[Name] [Note] [QTY]

seal ring 57,85MM I.D. 1

SCC52

[Name] [Note] [QTY]

Pressure hose 1

contains: N 106 198 01 2

[Name] [Note] [QTY]

Charge air cooler right 1

Replacements: 7P0145804B

[Name] [Note] [QTY]

charge air tube 1

contains: N 105 444 01 2

[Name] [QTY]

Air pipe 1

[Name] [QTY]

Air pipe 1

[Name] [Note] [QTY]

Hose clamp 60-80X12 2

D >> - 16.11.2009

[Name] [Note] [QTY]

Spring band clamp 60X80X12 1

D - 16.11.2009>>

[Name] [Note] [QTY]

Hose clamp 60-80X12 1

D - 16.11.2009>>

[Name] [Note] [QTY]

Hose clamp 50-70X12 1

[Name] [Note] [QTY]

Hexagon socket head bolt (combi) M6X20 2

[Name] [QTY]

Pressure sensor 1

Replacements: 03G906051M

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

optional: X

8K0973704 Flat contact housing with contact locking mechanism 4 pin 1

black

[Name] [Note] [QTY]

oval head panel screw 5X22 2

[Name] [Note] [QTY]

Pressure hose 1

contains: N 107 352 01 1

N 107 359 01 1

[Name] [QTY]

Pressure hose 1

[Name] [Note] [QTY]

Hose clamp 45-65X12 2

[Name] [QTY]

Pressure hose 1

[Name] [Note] [QTY]

Retaining clip SCA52 2

[Name] [Note] [QTY]

Retaining clip 2

only for: 7L6 145 803 D

lower

[Name] [Note] [QTY]

Retaining clip 2

only for: 7P0 145 804 A

upper

[Name] [Note] [QTY]

Air guide right 1

[Name] [Note] [QTY]

Air guide left 1

[Name]

Not for this model

[Name] [Note] [QTY]

Air guide for charge air cooler left 1

[Name] [Note] [QTY]

Air guide for charge air cooler right 1

[Name] [Note] [QTY]

sealing plug M8X1 1

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X45 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X25 1

[Name] [Note] [QTY]

Throttle valve 4 pin 1

mating connector

8K0973704 Flat contact housing with contact locking mechanism 4 pin 1

black

[Name] [Note] [QTY]

Hexagon socket head bolt M6X30 3

[Name] [QTY]

Bracket 1

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 2

[Name] [QTY]

bush 6

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X42 1

[Name] [QTY]

pressure pipe 1

Replacements: 059145762EA

[Name] [QTY]

Seal 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Semi round bolt (combi) with hexagon socket head M6X22 8

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X30 2

[Name] [Note]

see illustration: 129-040

[Name] [Note]

see illustration: 129-050

[Name] [Note]

see illustration: 129-040

[Name] [Note]

see illustration: 129-050

[Name] [Note]

see illustration: 145-020

[Name] [Note]

see illustration: 145-025

[Name] [Note] [QTY]

Hexagon bolt M6X20 6

[Name] [QTY]

throttle valve adapter 1

[Name] [Note] [QTY]

O-ring 57X3,5 1

[Name] [QTY]

Retaining clip 1

[Name] [Note] [QTY]

Pressure hose upper front 1

contains: 3C0 145 117 B 1

[Name] [Note] [QTY]

seal ring SCA41 1

[Name] [Note] [QTY]

Hose clamp 45-65X12 2
