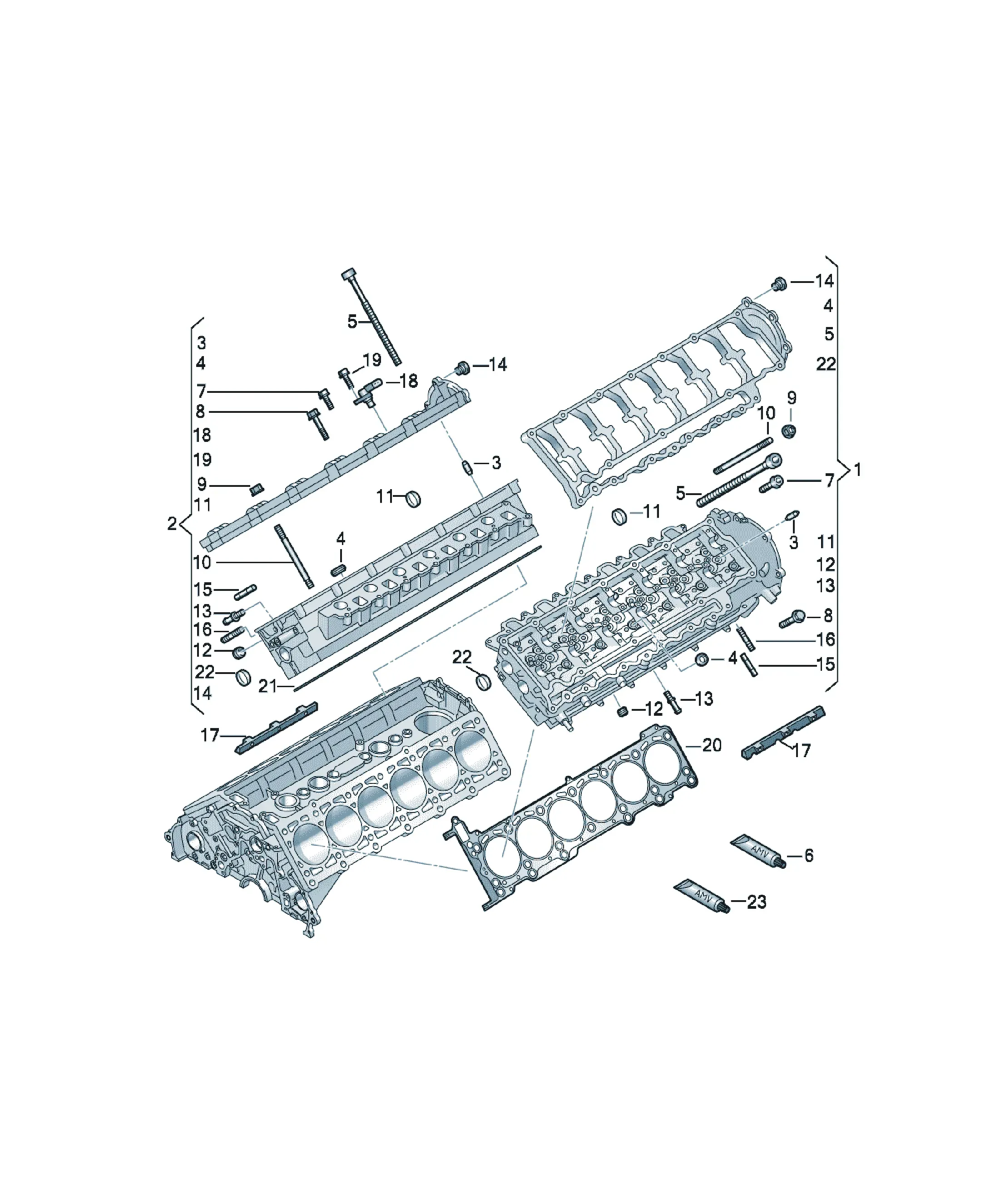

Головка блока цилиндров

[Name] [Note] [QTY]

Cylinder head with valves, camshaft and glow plugs cylinders 7-12 1

also use: D 174 003 A2

Accompanying details: D 174003A2

[Name] [Note] [QTY]

Cylinder head with valves, camshaft and glow plugs cylinders 7-12 1

also use: D 174 003 A2

Accompanying details: D 174003A2

Replacements: 05A103063D

Old part

05A103063DX Cylinder head with valves, camshaft and glow plugs 1

With hydraulic compensation element

With roller rocker finger

[Name] [Note] [QTY]

Threaded pin M6 24

[Name] [Note] [QTY]

End cap 18 6

[Name] [Note] [QTY]

sealing plug M8X1 14

[Name] [QTY]

connection piece 1

[Name] [Note] [QTY]

sealing plug M10X1X8 1

[Name] [Note] [QTY]

Threaded pin M8X56 12

[Name] [Note] [QTY]

Threaded pin M8X30 14

[Name] [Note]

angled bracket

see illustration: 253-040

[Name] [Note]

impulse sender

see illustration: 905 30

[Name] [Note]

Socket head bolt with hexagon socket head (combination)

see illustration: 905-030

[Name] [Note] [QTY]

Cylinder head with valves, camshaft and glow plugs Cylinder 1-6 1

also use: D 174 003 A2

Accompanying details: D 174003A2

[Name] [Note] [QTY]

Cylinder head with valves, camshaft and glow plugs Cylinder 1-6 1

also use: D 174 003 A2

Accompanying details: D 174003A2

Replacements: 05A103064D

Old part

05A103064DX Cylinder head with valves, camshaft and glow plugs 1

With hydraulic compensation element

With roller rocker finger

[Name] [Note] [QTY]

Cylinder head gasket (metal) 1,1MM 1

1 hole

[Name] [Note] [QTY]

Cylinder head gasket (metal) 1,15MM 1

2 holes

[Name] [Note] [QTY]

Cylinder head gasket (metal) 1,20MM 1

3 holes

[Name] [Note] [QTY]

Cylinder head gasket (metal) 1,15MM 1

2 holes

[Name] [Note] [QTY]

Cylinder head gasket (metal) 1,20MM 1

3 holes

[Name] [Note] [QTY]

Cylinder head gasket (metal) 1,1MM 1

1 hole

[Name] [QTY]

End cap 4

[Name] [Note] [QTY]

Locking fluid 18ML X

only to be used for: 03L 103 113 A

Replacements: D 200005A2

[Name] [Note] [QTY]

Cylinder pin 6M6X20 4

[Name] [QTY]

Washer 28

[Name] [Note] [QTY]

Socket head bolt M12X1,5X30 28

[Name] [Note] [QTY]

Silicone sealant 80ML X

MAT. NR. AMV 174 003

adhesives and sealing compound black

Replacements: D 174003M2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X45 28

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X32 52

[Name] [Note] [QTY]

Hexagon collar nut M6 24
