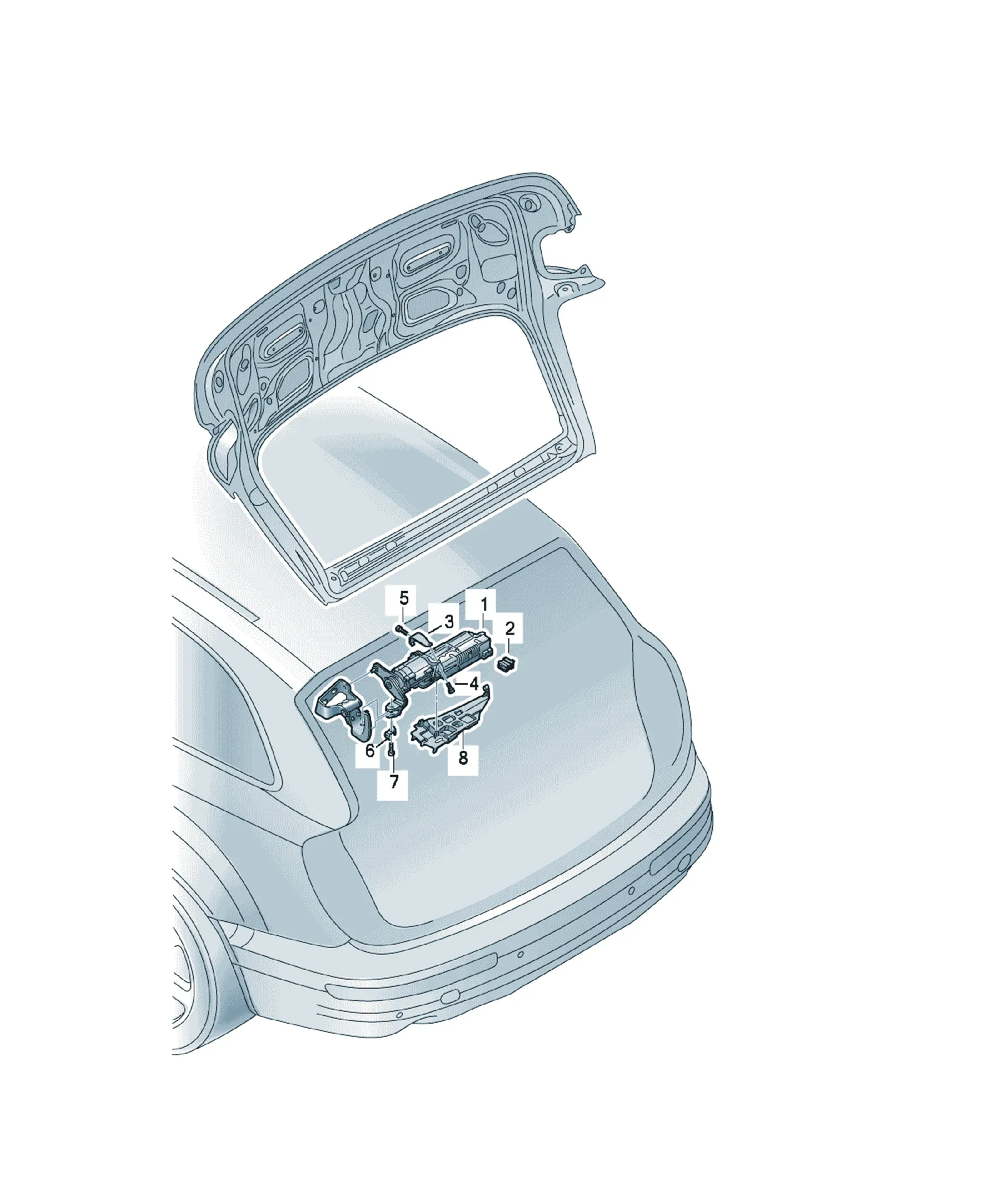

Привод крышки багажника

[Name] [Note] [QTY]

repair kit for drive unit M5 2

repair set

flat round head bolt 2

[Name] [QTY]

bush 2

[Name] [Note] [QTY]

Drive unit left 1

for rear lid

D - 09.12.2013>>

[Name] [Note] [QTY]

Drive unit left 1

for rear lid

also use: N 106 855 01 1

use if required: 1K0 972 924 1

also use: >>MJ2010

4L0 827 852 E 1

use in pairs

D >> - 09.12.2013

Accompanying details: N 10685501; 1K0972924; 4L0827852E

mating connector

1K0972924 Flat contact housing with contact locking mechanism 8 pin 1

black

Possible single wire: 000 979 026 X

000 979 026 A X

000 979 242 X

000 979 009 X

[Name] [Note] [QTY]

Drive unit right 1

for rear lid

also use: N 106 855 01 1

use if required: 3C0 972 725 1

also use: >>MJ2010

4L0 827 851 E 1

use in pairs

D >> - 09.12.2013

Accompanying details: N 10685501; 3C0972725; 4L0827851E

mating connector

3C0972725 Flat contact housing with contact locking mechanism 10 pin 1

black

Possible single wire: 000 979 009/A 0,5 X

000 979 026/A 0,5 X

000 979 151/A 1,0 X

000 979 242/A 1,0 X

matching contact housing: 3C0 972 710

[Name] [Note] [QTY]

Drive unit right 1

for rear lid

D - 09.12.2013>>

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism left 1

8 pin

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 EA

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism right 1

10 pin

mating connector

5G0972735 Flat connector housing with contact locking mechanism 10 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

[Name] [Note] [QTY]

Bracket left 1

[Name] [Note] [QTY]

Bracket right 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M6X12 2

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X20 2

[Name] [Note]

Bracket left a. right

see illustration: 972-085

[Name] [Note] [QTY]

round hd. screw M6X30 2

[Name] [Note] [Model info] [QTY]

deformation element left upper PR:A8U 1

[Name] [Note] [Model info] [QTY]

deformation element right upper PR:A8U 1
