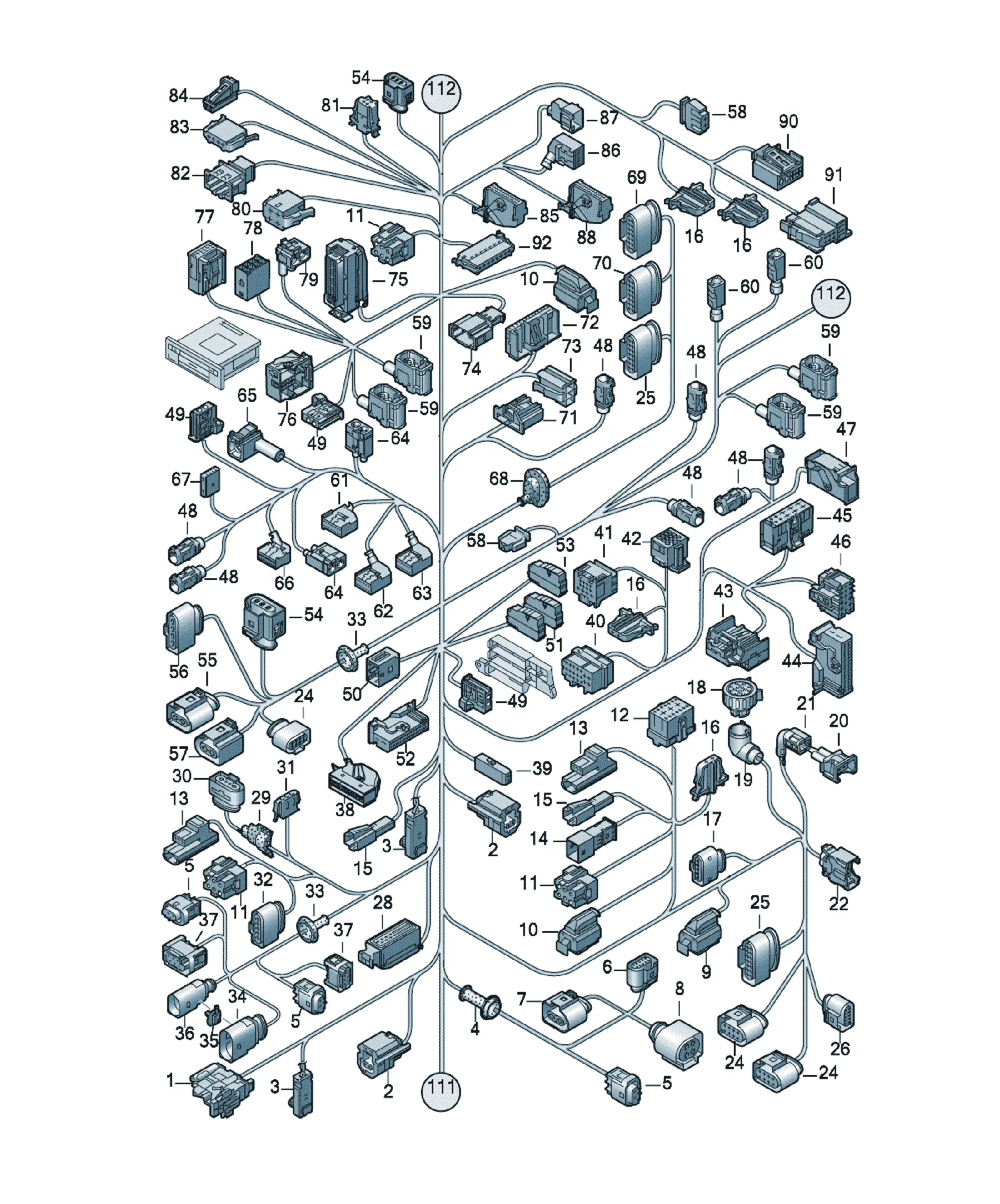

Электрические разъемы

[Name] [Note]

wiring harness for speed sensor

see illustration: 927-000

[Name] [Note] [QTY]

flatcontact housing with cable 2 pin 1

Connection piece black

Injector for reduction agent

[Name] [Note]

adapter aerial wire

see catalogue: electr.connec- ting elements

[Name] [Note]

Cable guide

and

relay plate

see illustration: 971-080

[Name]

* Corrug. tubes, T-pieces, * clips, holders, grommets, * cable ties, insulating * hose, wiring, * single wires and seals * see special catalogue: * ELECTRICAL * CONNECTING ELEMENTS

------------------------------

[Name] [Note]

Main fuse socket

see illustration: 971-080

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 20 pin 1

black

Coupling element

Wiring set for door right rear

Possible single wire:

000979012E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 0,63

counterpart to: 000 979 009 E

000979012EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 0,63

counterpart to: 000 979 009 A

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 021 E

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979024E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979136E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 4,8

000979165E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

Flat male connector with detent lug 0,63

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979228E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1

-40C/+105C

Flat male connector with detent lug 4,8

000979307E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

Flat male connector with detent lug 4,8

[Name] [Note] [QTY]

flat contact housing with cap 40 pin 1

Connection piece black

Power mod. f. onboard pow. sup passenger side

Control unit for adaptive suspension

Possible single wire:

000979018E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

000979018EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [Model info] [QTY]

Flat contact housing with contact locking mechanism 6 pin X

black

also to be used for: green

Coupling element

Wiring light for seat heating front and rear

right 2

harness for two-way radio PR:F4Z 1

mating connector

4F0937741 Flat contact housing 6 pin 1

black

also to be used for: green

violet

Possible single wire:

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

flat contact with retaining lug 0,5

4,8-6,3MM

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979243EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979308EC 1 set single wires each with 2 silver-plated contacts, in bag of 4 'Order qty. 4' X

-40C/+125C

with cable crosssection: 4,0

flat contact with retaining lug 4,8-6,3MM

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979425EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

[Name] [Note]

Individual parts

area: Dash panel

right

see illustration: 971-082

[Name] [Note]

Individual parts

area: left

see illustration: 971-083

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 17-pin 1

red

Coupling element

seat frame wiring harness

mating connector

4F0972575B Flat connector housing with contact locking mechanism 17-pin 1

red

also to be used for: Grey

light-green

Possible single wire:

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

[Name] [Note] [QTY]

Flat contact housing 3 pin 2

Coupling element yellow

side airbag wiring harness front and rear

right

mating connector

4E0972576 Flat contact housing 3 pin X

Side airbag unit yellow

Possible single wire:

000979010EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979010FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat insert sleeve with locking lug, Nyogel filled 0,63

(Copper wires galvanised)

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

Coupling element black

Wiring set for multimedia equipment

'RSE'

mating connector

8E0971833 Flat contact housing 6 pin X

black

Possible single wire:

000979012E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 0,63

counterpart to: 000 979 009 E

000979012EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 0,63

000979165E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

Flat male connector with detent lug 0,63

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 2 pin X

black

Coupling element

Wiring set for multimedia equipment

'RSE' 1

Glass breakage sensor for side window

Replacements: 8W0972575

mating connector

8E0972623 Flat contact housing with contact locking mechanism 2 pin 1

black

8W0971832 Flat contact housing 2 pin 1

black

Possible single wire:

000979012E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 0,63

counterpart to: 000 979 009 E

000979012EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 0,63

000979165E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

Flat male connector with detent lug 0,63

[Name] [Note] [QTY]

flat connector housing 2 pin X

Coupling element black

Wiring set for multimedia equipment

'RSE' 1

For power supply 'RSE' 1

Loudspeakers (surround) left a. right 2

mating connector

3B0972712 Flat connector housing with contact locking mechanism 2 pin X

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 5 pin 1

black

Connection piece

NOx-Sensor for emissions control

Possible single wire:

000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

[Name] [Note] [QTY]

round connector housing 16 pin 1

black

use if required: 4L0 971 921

Connection piece

multi-function switch for automatic gearbox

Accompanying details: 4L0971921

Possible single wire:

000979154E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

1,0

1,6

[Name] [Note] [QTY]

Bracket protective cover 1

for contact housing: 4L0 973 716

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 2

yellow

Connection piece

Lateral acceleration sensor -CRASHSENSOR-

'SAEULE B/C'

Possible single wire:

000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979025FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

flat contact with retaining lug 0,5

1,5

(Copper wires galvanised)

000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 1,5

000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979255E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [Model info] [QTY]

flat contact housing with gasket 2 pin diesel eng. 1

black

use if required: 1J0 971 921 D

Connection piece

fuel metering pump

for models with supplementary heater

Accompanying details: 1J0971921D

mating connector

701971907 Support 2 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Bracket protective cover 1

for contact housing: 037 906 240

[Name] [Note] [Model info] [QTY]

flat contact housing with gasket 2 pin Petr. engine 1

Connection piece black

fuel metering pump

Possible single wire:

000979121E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact 2,4

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing 8 pin X

Coupling element black

wiring harness for automatic gearbox

1

Pump for reduction agent 1

mating connector

1J0973814 Flat contact housing 8 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 14 pin 1

Coupling element black

wiring harness for automatic gearbox

Wiring set for bumper 'EPH-SENSOREN'

mating connector

6X0973817 Flat contact housing with contact locking mechanism 14 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing 10 pin 1

black

Coupling element

wiring harness adapter for automatic gearbox

mating connector

1J0973835 Flat contact housing with contact locking mechanism 10 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note]

wiring harness adapter for automatic gearbox

see illustration: 971-075

[Name] [Note] [QTY]

flat contact housing with cap 30 pin 1

black

use if required: 1S0 971 904 A

Connection piece

Control unit for reduction agent metering system

Accompanying details: 1S0971904A

Possible single wire:

000979030E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 0,63

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

flat contact with retaining lug 0,5

4,8-6,3MM

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979243EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979308EC 1 set single wires each with 2 silver-plated contacts, in bag of 4 'Order qty. 4' X

-40C/+125C

with cable crosssection: 4,0

flat contact with retaining lug 4,8-6,3MM

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979425EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

1S0971904A Sealing pin 0,63 X

[Name] [Note] [QTY]

Sealing pin 0,63 X

[Name] [Note] [QTY]

Grommet 1

wiring harness for fuel pump right

[Name] [Note] [Model info] [QTY]

flatcontact housing with cable 2 pin X

for vehicles with pyrotech- nischen seat belt tensioner Yellow/violet

Connection piece

Seat belt with belt tensioner unit

right front 1

Seat belt with belt tensioner unit

right rear PR:4UB 1

[Name] [Note] [QTY]

Flat contact housing 4 pin 1

Connection piece black

Fuel pump right

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [Note] [QTY]

Flat contact housing 3 pin 1

Coupling element black

Refrigerator

mating connector

191972763 Flat contact housing 3 pin 1

1J0972763 Flat contact housing 3 pin 1

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [Note] [QTY]

Flat contact housing 5 pin 1

Connection piece black

Fuel pump with sensor for fuel display

mating connector

6N0973855 Flat connector housing with contact locking mechanism 5 pin 1

black

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [Note] [QTY]

Grommet 36/8 X

right rear

[Name] [Note] [QTY]

Grommet 36/3 1

right rear

[Name] [Note] [Model info] [QTY]

Flat connector housing with contact locking mechanism 6 pin PR:1BK,2MB 1

black

use if required: N 906 851 01

Coupling element

Wiring set f. shock absorber right

Accompanying details: N 90685101

mating connector

1J0973713 Flat contact housing 6 pin 1

black

4H0973713 Flat contact housing with contact locking mechanism 6 pin 1

black

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

bracket for connector housing 6,5 1

for contact housing: 3B0 973 813

7L0 973 812

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 4 pin 1

black

If required use also item:

35

Connection piece

Wiring set f. shock absorber right

mating connector

4B0973712 Flat contact housing with contact locking mechanism 4 pin 1

4H0973712 Flat contact housing with contact locking mechanism 4 pin 1

black

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

Connection piece black

Level sensor

for models with air suspension

right rear

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

flat contact housing with cap 32 pin 1

black

Connection piece

Amplifier for sound system

Possible single wire:

000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 0,5

flat contact with retaining lug 4,8-6,3MM

000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 1,5

000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

black

Connection piece

Servo element for central locking in tank flap

mating connector

1J0973332 Flat contact housing 2 pin 1

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [QTY]

Grommet 1

For vehicles with adaptive suspension

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 16 pin 1

black

Connection piece

Control unit for trailer detection

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 12 pin 1

red

Connection piece

Control unit for trailer detection

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 12 pin 1

blue

Connection piece

Control unit for trailer detection

Possible single wire:

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 20 pin 1

black

Connection piece

Central control unit for convenience system rear

'BCM2'

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

flat contact with retaining lug 0,5

4,8-6,3MM

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979243EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979308EC 1 set single wires each with 2 silver-plated contacts, in bag of 4 'Order qty. 4' X

-40C/+125C

with cable crosssection: 4,0

flat contact with retaining lug 4,8-6,3MM

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979425EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

[Name] [Note] [QTY]

flat contact housing with cap 32 pin 1

blue

Connection piece

Power mod. f. onboard pow. sup rear

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979044EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 10 pin 1

Connection piece black

Power mod. f. onboard pow. sup rear

mating connector

7L0972762 Flat contact housing with contact locking mechanism 10 pin 1

black

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 15 pin 1

brown

Connection piece

Power mod. f. onboard pow. sup rear

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 2,8MM

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 2,8MM

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact 2,8MM

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact 2,8MM

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5QMM

flat contact 2,8MM

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5QMM

flat contact 2,8MM

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 54-pin 1

black/blue

Connection piece

Control unit for reversing camera system

Possible single wire:

000979010E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979010EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979010FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat insert sleeve with locking lug, Nyogel filled 0,63

(Copper wires galvanised)

[Name] [Note] [Model info] [QTY]

Removable housing for aerial female connector 1 point X

light blue

only to be used for: all colours

Connection piece

Control unit for reversing camera system

2

Coupling element

roof antenna X

Amplifiers 'GSM' PR:9ZF 2

Receiver module for auxiliary heater

mating connector

6Q0035575K Removable housing for aerial pin connector 1 point X

water blue

only to be used for: all colours

use if required aerial wire adapter:

000 098 692 X

Possible single wire:

Remove if required: 6Q0.035.576.K 1

------------------------------

000098650 Aerial connection line 300MM X

000098651 Aerial connection line 500MM X

000098652 Aerial connection line 1000MM X

000098652A Aerial connection line 1500MM X

000098653 Aerial connection line 2000MM X

000098653A Aerial connection line 2500MM X

000098654 Aerial connection line 3000MM X

000098654A Aerial connection line 3500MM X

000098655 Aerial connection line 4000MM X

000098655A Aerial connection line 4500MM X

000098656 Aerial connection line 5000MM X

000098656A Aerial connection line 5500MM X

000098657 Aerial connection line 6000MM X

000098657A Aerial connection line 6500MM X

000098658 Aerial connection line 7000MM X

000098658A Aerial connection line 7500MM X

000098659 Aerial connection line 8000MM X

000098703 aerial intermediate wire with earthing clip 300MM X

000098703A adapter aerial wire 300MM 1

[Name] [Note] [QTY]

flat connector 2 pin 1

fibre optic wave conductor black

mating connector

4E0973302 Coupling element 2 pin 1

flat connector black

fibre optic wave conductor

counterpart to: 4E0 973 702

4E0 973 202

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin X

black

Connection piece

Aerial

tyre pressure control system 1

Sender for tyre pressure monitoring system

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 EA

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [Model info] [QTY]

Flat contact housing 6 pin PR:9WP 1

Coupling element blue

For power supply 'RSE-HIGH'

mating connector

4F0937731D Flat contact housing with contact locking mechanism 6 pin 1

blue

also to be used for: orange

dark brown

light pink

4F0937731H Flat contact housing with contact locking mechanism 6 pin 1

orange

4F0937731J Flat contact housing with contact locking mechanism 6 pin 1

dark brown

4F0937731D Flat contact housing with contact locking mechanism 6 pin 1

blue

Assoc. part -> -> -> -> -> -> orange

dark brown

light pink

Possible single wire:

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 021 E

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979024E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979136E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 4,8

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979228E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 2,5

Flat male connector with detent lug 4,8

000979307E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

Flat male connector with detent lug 4,8

[Name] [Note] [QTY]

fuse holder 12 pin 1

black

contact bridge 8-pin

also to be used for: brown

red

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

Flat male connector with detent lug 0,5

4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

flat contact with retaining lug 1,0

4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

flat contact with retaining lug 2,5

4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

flat contact with retaining lug 2,5

4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' X

-40C/+125C

flat contact with retaining lug 4,0

4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' X

-40C/+125C

flat contact with retaining lug 6,0

4,8

[Name] [Note] [QTY]

flat contact housing with cap 32 pin 1

black

Connection piece

Amplifier for sound system

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

fuse holder 12 pin 1

black

contact bridge 12 point

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin X

black

Connection piece

diagnosis pump for fuel system

1

Acceleration sensor for air spring damper

mating connector

1J0973803 Flat contact housing with contact locking mechanism 3 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

black

Connection piece

Storage container

mating connector

8D0973822 Flat connector housing with contact locking mechanism 2 pin 1

Possible single wire:

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 1

black

Connection piece

Storage container

mating connector

1K0973804 Flat contact housing with contact locking mechanism 4 pin 1

black

Possible single wire:

000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979025FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

flat contact with retaining lug 0,5

1,5

(Copper wires galvanised)

000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 1,5

000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979255E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

black

Connection piece

Metering line

mating connector

1J0973802 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979025FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

flat contact with retaining lug 0,5

1,5

(Copper wires galvanised)

000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 1,5

000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979255E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing 2 pin 2

Connection piece black

luggage compartment light

(3rd seat row)

mating connector

893971992 flat connector housing 2 pin X

4B0971992 flat connector housing 2 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Removable housing for aerial bracket female connector 1 point X

light blue

only to be used for: all colours

Connection piece

Aerial amplifier right rear 2

Radio unit 2

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 10 pin 1

Connection piece black

Valve unit

mating connector

6X0973815 Flat contact housing with contact locking mechanism 10 pin 1

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Removable housing for aerial female connector 1 point 2

light blue

only to be used for: all colours

use if required: 4L0 971 733 A

Connection piece

Aerial amplifier 'HECKSPOILER'

Accompanying details: 4L0971733A

mating connector

420035575K Removable housing for aerial pin connector 1 point 1

light blue

also to be used for: all colours

[Name] [QTY]

Adapter wiring set for rear spoiler aerial 1

(for repairs only)

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 16 pin 1

Connection piece brown

Control unit for parking aid

mating connector

8K0972416 Flat contact housing with contact locking mechanism 16 pin 1

brown

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 12 pin 1

Connection piece brown

Control unit for parking aid

Replacements: 8W0972112A

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 12 pin 1

Connection piece black

Control unit for parking aid

mating connector

4F0972112 Flat contact housing with contact locking mechanism 12 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Removable housing for aerial female connector 2 point 2

light blue

only to be used for: all colours

Connection piece

TV tuner

mating connector

4E0035671K Removable housing for aerial pin connector 2 point X

[Name] [Note] [QTY]

Removable housing for aerial bracket female connector 1 pin 1

blue

only to be used for: all colours

Connection piece

TV tuner

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 20 pin X

red

also to be used for: blue

Connection piece

TV tuner 1

Control unit for access and start authorisation

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [Model info] [QTY]

Flat contact housing with contact locking mechanism 4 pin PR:9ZF 1

black

Connection piece

Amplifiers 'KOMPENSER'

mating connector

8E0972643 Flat contact housing with contact locking mechanism 4 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [QTY]

Grommet 1

Wiring set for bumper

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 14 pin 1

black

Coupling element

Wiring set for bumper

mating connector

1J0973837 Flat contact housing with contact locking mechanism 14 pin 1

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

black

Connection piece

Air supply unit

mating connector

1J0973852 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 14 pin 1

Coupling element brown

Wiring set for bumper

mating connector

6X0973817A Flat contact housing with contact locking mechanism 14 pin 1

brown

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 6 pin 1

blue

Connection piece

Receiver module for auxiliary heater

mating connector

6Q0972716 Flat contact housing with contact locking mechanism 6 pin 1

blue

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 12 pin 1

Connection piece black

Switch for electric folding tow hitch and load edge lowering

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing 3 pin 1

Connection piece transparent

Socket 12V

mating connector

357919321 Flat contact housing 3 pin 1

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 2 pin 1

black

Coupling element

Preparation for electric trailer brake

mating connector

1J0972923 Flat contact housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

[Name] [Note] [QTY]

flat contact housing with cap 81-pin 1

Connection piece black

Control unit for adaptive suspension

Possible single wire:

000979018E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

000979018EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

000098670 adapter aerial wire 300MM 1

Control unit for central locking with remote control

[Name] [Note] [QTY]

Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

Connection piece

Radio unit

mating connector

3B7035447 Flat contact housing with contact locking mechanism 8 pin 1

brown

3B7035447A Flat contact housing with contact locking mechanism 12 pin 1

blue

radio

3B7035447B Flat contact housing with contact locking mechanism 12 pin 1

green

radio

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

flat contact with retaining lug 0,5

4,8-6,3MM

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979243EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979308EC 1 set single wires each with 2 silver-plated contacts, in bag of 4 'Order qty. 4' X

-40C/+125C

with cable crosssection: 4,0

flat contact with retaining lug 4,8-6,3MM

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979425EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 12 pin 1

blue

Connection piece

Radio unit

mating connector

3B7035444 Flat contact housing with additional contact lock and additional connector housing mountings 8 pin 1

black

RADIO

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 EA

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 8 pin 1

brown

Connection piece

Radio unit

mating connector

3B7035444 Flat contact housing with additional contact lock and additional connector housing mountings 8 pin 1

black

RADIO

3B7035444A Flat contact housing with additional contact lock and additional connector housing mountings 8 pin 1

black

RADIO

4E0035444 Flat contact housing with additional contact lock and additional connector housing mountings 10 pin 1

black

4E0035444A Flat contact housing with additional contact lock and additional connector housing mountings 42 pin 1

black

8X0035444 Flat contact housing with additional contact lock and additional connector housing mountings 52 pin 1

black

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Removable housing for aerial bracket female connector 2 point 1

light blue

only to be used for: all colours

Connection piece

Radio unit

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 1

black

Connection piece

Air supply unit

mating connector

4B0973812 Flat connector housing with contact locking mechanism 4 pin X

7L0973812 Flat connector housing with contact locking mechanism 4 pin X

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

[Name] [Note] [QTY]

Flat contact housing 4 pin 1

Coupling element black

Wiring set for multimedia equipment

For power supply 'RSE'

mating connector

1J0972782 Flat contact housing 4 pin 1

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [Note] [QTY]

Flat contact housing 4 pin 1

Connection piece black

For vehicles with power latch for rear lid

mating connector

3B0972732 Flat contact housing 4 pin 1

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

[Name] [Note] [QTY]

Flat contact housing 4 pin 1

Coupling element black

Wiring set for multimedia equipment

For power supply 'RSE'

mating connector

1J0972772 Flat contact housing 4 pin 1

191972772 Flat contact housing 4 pin X

Possible single wire:

000979024E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979136E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 4,8

000979228E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1

-40C/+105C

Flat male connector with detent lug 4,8

000979307E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

Flat male connector with detent lug 4,8

[Name] [Note] [QTY]

Flat contact housing 4 pin 1

Connection piece black

Loudspeaker housing with loudspeaker

'SUBWOOFER'

mating connector

191972714 flat connector housing 4 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

black

Connection piece

Aerial for access and start authorisation (KESSY)

mating connector

4E0972575 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979044EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

flat contact housing with cap 26 pin 1

Dark green

Connection piece

Audio/video control unit

For vehicles with multimedia equipment

'RSE'

Possible single wire:

000979010E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979010EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979010FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat insert sleeve with locking lug, Nyogel filled 0,63

(Copper wires galvanised)

000979014EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 12 pin 1

Connection piece black

DVD changer

For vehicles with multimedia equipment

'RSE'

mating connector

4F0972112 Flat contact housing with contact locking mechanism 12 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 12 pin 1

Coupling element black

LCD screen

For vehicles with multimedia equipment

'RSE'

mating connector

8Z0972112 flat contact housing with cap 12 pin 1

black

Possible single wire:

000979012E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 0,63

counterpart to: 000 979 009 E

000979012EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 0,63

000979165E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

Flat male connector with detent lug 0,63

[Name] [Note] [QTY]

flat contact housing with cap 26 pin 1

black

Connection piece

Audio/video control unit

For vehicles with multimedia equipment

'RSE'

Possible single wire:

000979010E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979010EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979010FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat insert sleeve with locking lug, Nyogel filled 0,63

(Copper wires galvanised)

000979014EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

flat contact housing with gasket 52 pin 1

black

Connection piece

Control unit for automatic gearbox

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact 1,5MM

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 10 pin 1

black

Connection piece

Drive unit

for models with electrically operat. boot lid/tailgate lock

right

mating connector

5G0972735 Flat connector housing with contact locking mechanism 10 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 8 pin 1

black

Connection piece

Drive unit

for models with electrically operat. boot lid/tailgate lock

left

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 EA

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

[Name] [Note] [QTY]

Flat contact housing 5 pin 1

Connection piece black

For vehicles with power latch for rear lid

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5
