Насос топливный, ТНВД

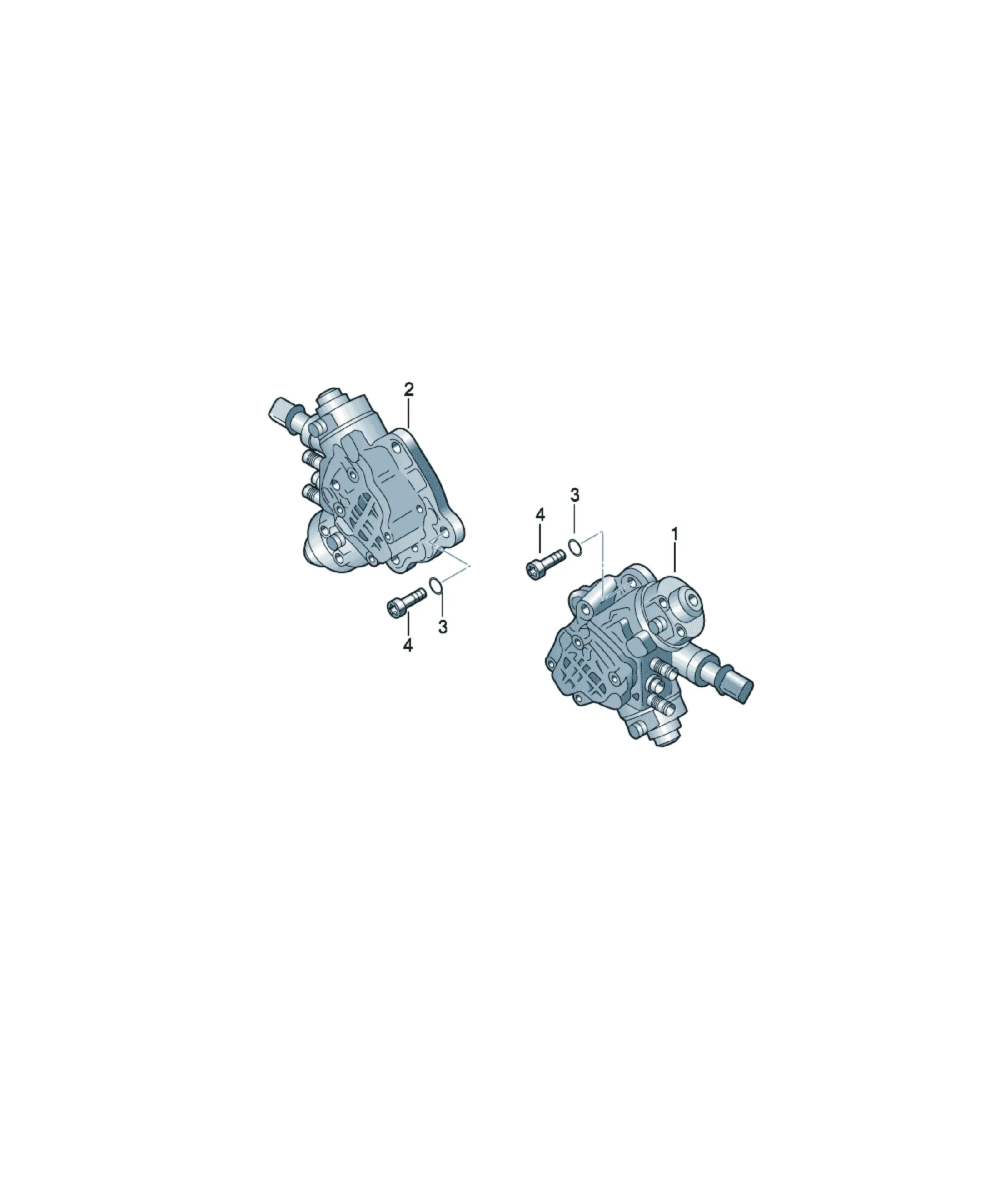

Топливный насос высокого давления

Схемы узла

6 схем

6 деталей

Seal Ring
4L0130519 Предложения

[Name] [Note] [QTY]
seal ring 45X2,5 2
05A130755C Предложения

[Name] [Note] [QTY]
high pressure pump left 1
2000 BAR
mating connector
4D0971992 Flat connector housing with contact locking mechanism 2 pin 1
black/violet
05A130755C Предложения

[Name] [Note] [QTY]
high pressure pump right 1
2000 BAR
mating connector
4D0971992 Flat connector housing with contact locking mechanism 2 pin 1
black/violet
05A130851X Предложения

[Name] [Note] [QTY]
high pressure pump left a. right 2
2000 BAR
Replacements: 05A130755C
mating connector
4D0971992 Flat connector housing with contact locking mechanism 2 pin 1
black/violet
N0138304 Предложения

[Name] [Note] [QTY]
seal ring 8X14 6
N91068601 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X32 6
