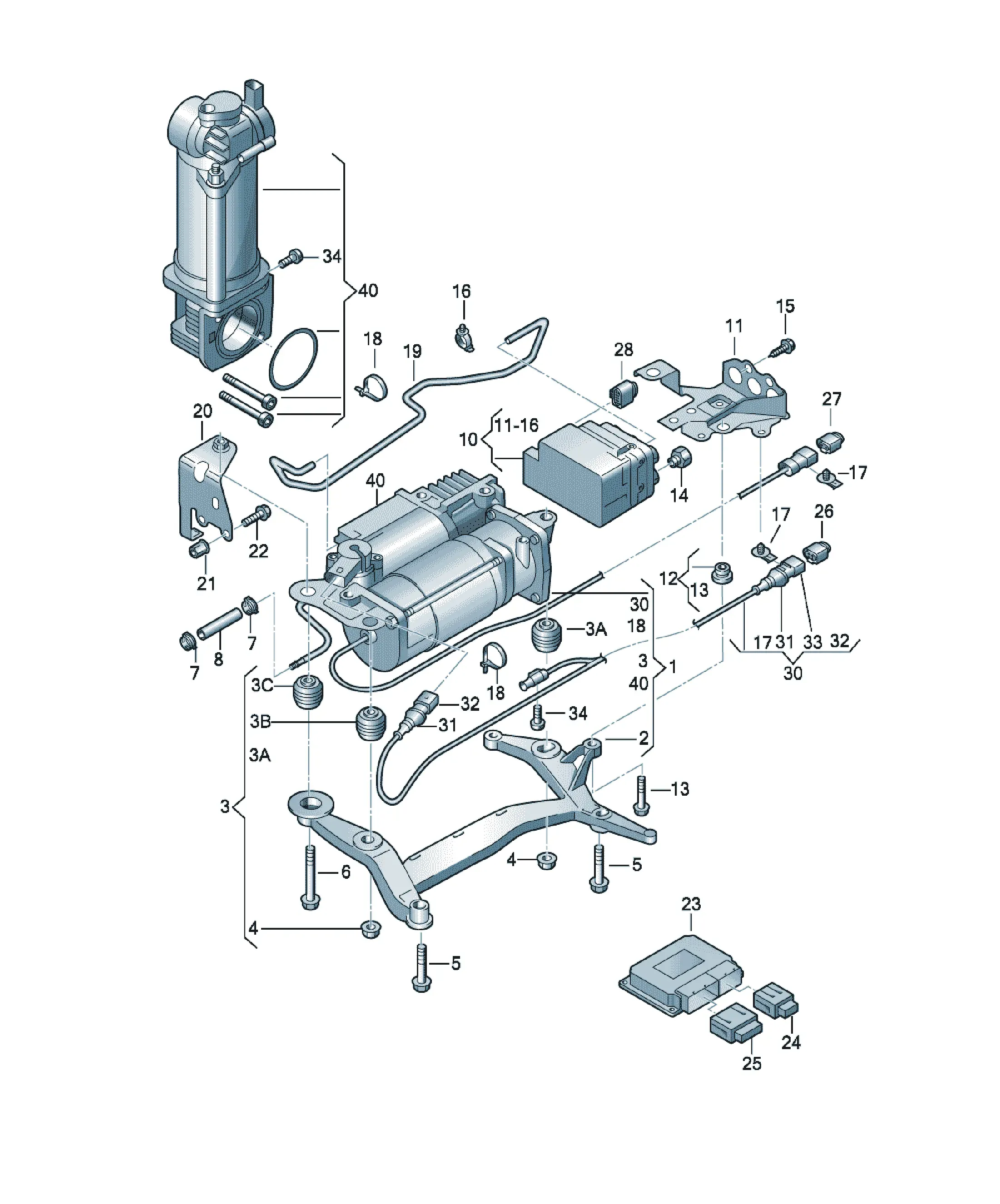

Блок подготовки воздуха

[Name] [Note] [QTY]

Solid lubricant paste 160 gram 1

[Name] [Note] [QTY]

Relay 40A 1

relay location/code no.: 1/643

to be used for code no.: 373

[Name] [Note] [QTY]

Air supply unit 1

also use: 4H0 951 253 A 1

Accompanying details: 4H0951253A

repair set

7L8616007F Air supply unit 1

7L0616853C Mounting 2

7L0616854B Mounting 1

N 02300213 hexagon nut, self-locking M6 2

7L0616879 Bracket for compressor 1

mating connector

1J0973852 Flat connector housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Valve unit 1

Replacements: 7L0698014C

repair set

7L0616014 Valve unit 1

7L0616251 Retainer for valve 1

N 10655401 Hex collared bolt M6X40 3

06B971845 Cable holder 1

mating connector

1J0973715 Flat contact housing with contact locking mechanism 10 pin 1

[Name]

Bracket

Valve unit

No replacement part

[Name] [QTY]

1 set of attachment parts for valve unit 1

repair set

7L0616349 Rubber bush 3

N 10655401 Hex collared bolt M6X40 3

[Name] [Note] [QTY]

Hex collared bolt M6X40 3

[Name] [Note] [QTY]

Connection piece M10X1 X

[Name] [Note] [QTY]

hex. hd. self-tap bolt (combi) 6X16 2

[Name] [Note] [QTY]

Cable holder 2 point 1

[Name] [QTY]

bracket for connector housing 2

flat connector housing

[Name] [Note] [QTY]

Cable ties 3,6X246 2

Replacements: N 10647801

[Name] [QTY]

Air line 1

[Name]

Bracket

Air supply unit

No replacement part

[Name] [QTY]

Bracket mount 1

[Name] [Note] [QTY]

rivetted cap nut M8/0,5-3 3

[Name] [Note] [QTY]

Screw with int. serrations M8X20 4

[Name] [Note] [Model info] [QTY]

Control unit with software for adaptive suspension PR:2MB 1

hardware: 4L0 907 553

4L0 907 553 E

D >> - 21.05.2012

Replacements: 4L0910553L

mating connector

038906379B Flat contact housing 40 pin 1

Control unit

1J0906385C flat contact housing with cap 81-pin 1

[Name] [Note] [Model info] [QTY]

Control unit with software for adaptive suspension 6, 8-cyl.+ 1

PR:1BK

hardware: 4L0 907 553

4L0 907 553 E

mating connector

1J0906385C flat contact housing with cap 81-pin 1

038906379B flat contact housing with cap 40 pin 1

[Name] [Note] [Model info] [QTY]

Control unit with software for adaptive suspension 12-cylinder+ 1

PR:1BK

hardware: 4L0 907 553

4L0 907 553 E

D >> - 21.05.2012

Replacements: 4L0910553L

mating connector

038906379B Flat contact housing 40 pin 1

Control unit

1J0906385C flat contact housing with cap 81-pin 1

[Name] [Note] [Model info] [QTY]

Control unit with software for adaptive suspension 12-cylinder+ 1

PR:1BK

hardware: 4L0 907 553

4L0 907 553 E

D - 21.05.2012>>

mating connector

038906379B flat contact housing with cap 40 pin 1

1J0906385C flat contact housing with cap 81-pin 1

[Name] [Note] [Model info] [QTY]

Control unit with software for adaptive suspension PR:2MB 1

hardware: 4L0 907 553

4L0 907 553 E

D - 21.05.2012>>

mating connector

038906379B flat contact housing with cap 40 pin 1

1J0906385C flat contact housing with cap 81-pin 1

[Name] [Note] [QTY]

flat contact housing with cap 40 pin 1

Possible single wire:

000979018E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

000979018EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

flat contact housing with cap 81-pin 1

Possible single wire:

000979018E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

000979018EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

000098670 adapter aerial wire 300MM 1

Control unit for central locking with remote control

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 4 pin X

mating connector

4B0973712 Flat contact housing with contact locking mechanism 4 pin 1

4H0973712 Flat contact housing with contact locking mechanism 4 pin 1

black

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 E

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 EA

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 2 pin 1

black

counterpart to: 1J0 973 752

mating connector

1J0973752 Flat contact housing with contact locking mechanism 2 pin 1

black

5C6973752 Flat contact housing 2 pin 1

black

Possible single wire:

000979024E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979136E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 4,8

000979228E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1

-40C/+105C

Flat male connector with detent lug 4,8

000979307E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

Flat male connector with detent lug 4,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 10 pin 1

counterpart to: 6X0 973 815

mating connector

6X0973815 Flat contact housing with contact locking mechanism 10 pin 1

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [QTY]

1 set of fastening parts for compressor 1

repair set

7L0616853B Mounting 2

7L0616854A Mounting 1

N 02300213 hexagon nut, self-locking M6 2

[Name] [QTY]

Wire set 1

Air supply unit

Replacements: 7L0971291B; G 060751A2

Items supplied

Wire set 1

with:

Temperature sensor

Hexagon socket head bolt 1

[Name] [Note] [QTY]

Grommet 11,9X53 2

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 2 pin 1

black/violet

Possible single wire:

000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 2,8

000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 1,0 X

-40C/+105C

flat contact 2,8

000979237EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact 2,8

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 4 pin X

mating connector

4B0973712 Flat contact housing with contact locking mechanism 4 pin 1

4H0973712 Flat contact housing with contact locking mechanism 4 pin 1

black

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X20 1

[Name] [Note] [QTY]

hexagon nut, self-locking M6 1

[Name] [Note] [QTY]

Repair set for air dryer unit 1

also use: G 060 751 A2 1

repair set

Drier 1

O-ring 1

Hexagon socket head bolt M6X105 2

Hexagon socket head bolt M6X20 1

mating connector

4D0971992 Flat connector housing with contact locking mechanism 2 pin 1

black/violet

[Name] [Note] [QTY]

bolt,hex.hd.with shoul.(combi) M8X50 2

[Name] [Note] [QTY]

Hex collared bolt M8X70X41 1

[Name] [Note]

see illustration: 616-035

[Name] [Note]

see illustration: 616-035
