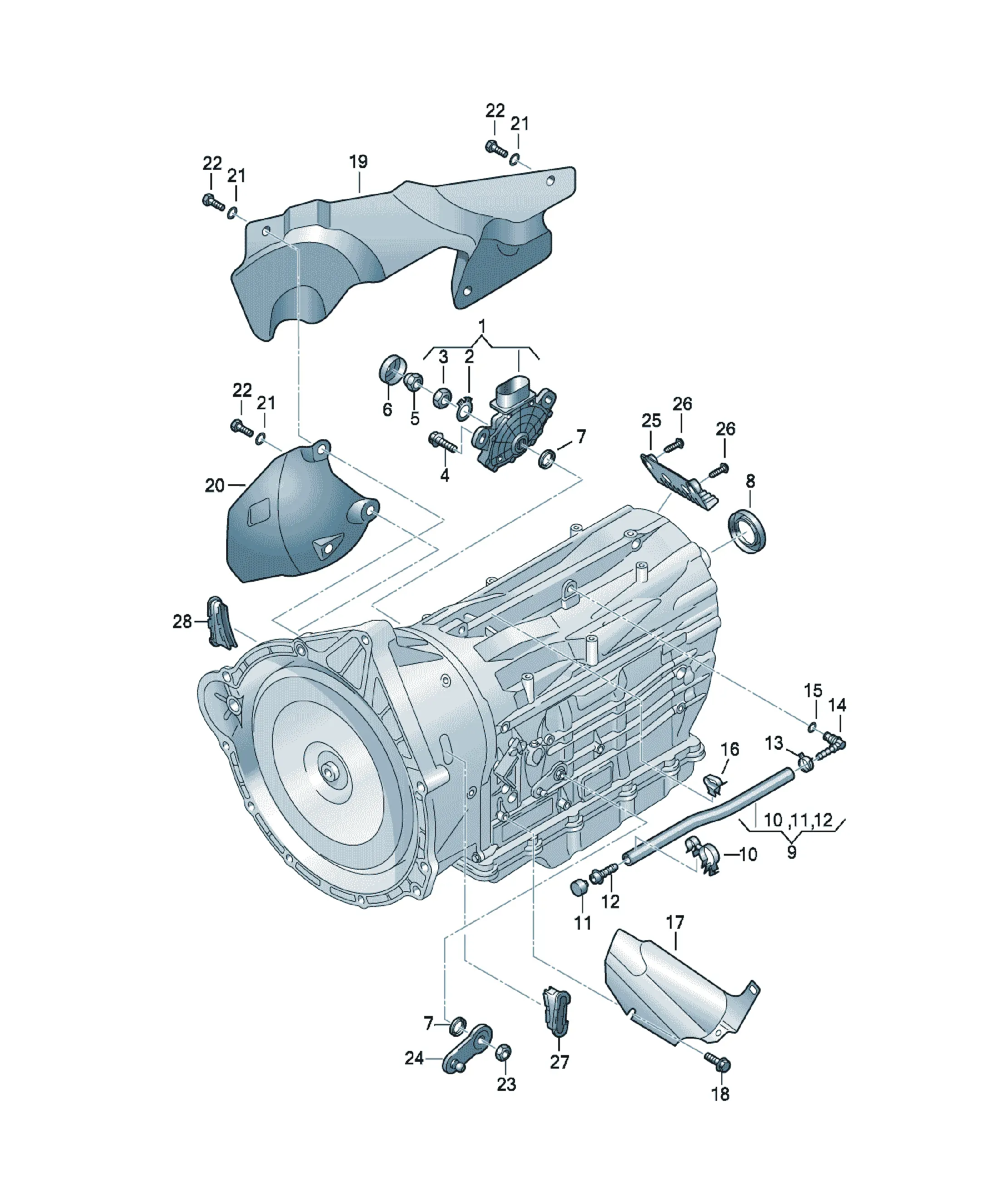

Картер коробки передач

[Name] [Note] [Model info]

cover for starter KMB

see illustration: 103-050

[Name] [Note]

multi-function switch for automatic gearbox

see illustration: 927-070

[Name] [Note] [QTY]

Bracket 13,5X13,5 1

[Name] [QTY]

Cap for venting the gearbox 1

[Name] [QTY]

ventilation union 1

[Name] [Note] [QTY]

Clip D=13,2 1

[Name] [QTY]

Angled connector 1

[Name] [Note] [QTY]

seal ring 8,2X1,9 1

[Name] [QTY]

Clip 1

[Name] [Note] [Model info] [QTY]

Guard plate left KMF 1

[Name] [Note] [Model info] [QTY]

Guard plate left KMB,KRK 1

[Name] [Note] [Model info] [QTY]

Hexagon bolt M6X15 KMB,KRK 3

[Name] [Note] [Model info] [QTY]

hexagon head bolt (combi) M6X12 KMF 3

[Name] [Note] [Model info] [QTY]

Guard plate right KME,KMF 1

[Name] [Note]

Collar nut

see illustration: 927-070

[Name] [Note] [QTY]

Washer 6,4X12,5X1,6 6

[Name] [Note] [QTY]

Hexagon bolt M6X15 6

[Name] [Model info] [QTY]

selector lever KMB,KRK 1

[Name] [Model info] [QTY]

selector lever KME 1

[Name] [Model info] [QTY]

selector lever KMF 1

[Name] [Note] [Model info] [QTY]

Cover cap left KME,KRK,KMB 1

[Name] [Note] [Model info] [QTY]

Cover cap left KMF 1

[Name] [Note] [Model info] [QTY]

Cover cap right KMF 1

[Name] [Note] [Model info] [QTY]

Cover cap right KME,KRK,KMB 1

[Name] [Note]

Retaining washer

see illustration: 927-070

[Name] [Note] [QTY]

Hexagon bolt M6X20 1

[Name] [Note]

domed cap nut

see illustration: 927-070

[Name] [Note]

Cover cap

see illustration: 927-070

[Name] [Note] [QTY]

radial shaft seal 11X22X7 2

[Name] [Note] [QTY]

radial shaft seal 41X72X11 1

[Name] [Note] [QTY]

breather assy. 1360MM 1

shorten to: 350MM 1

also use: N 107 548 01 1

Accompanying details: N 10754801
