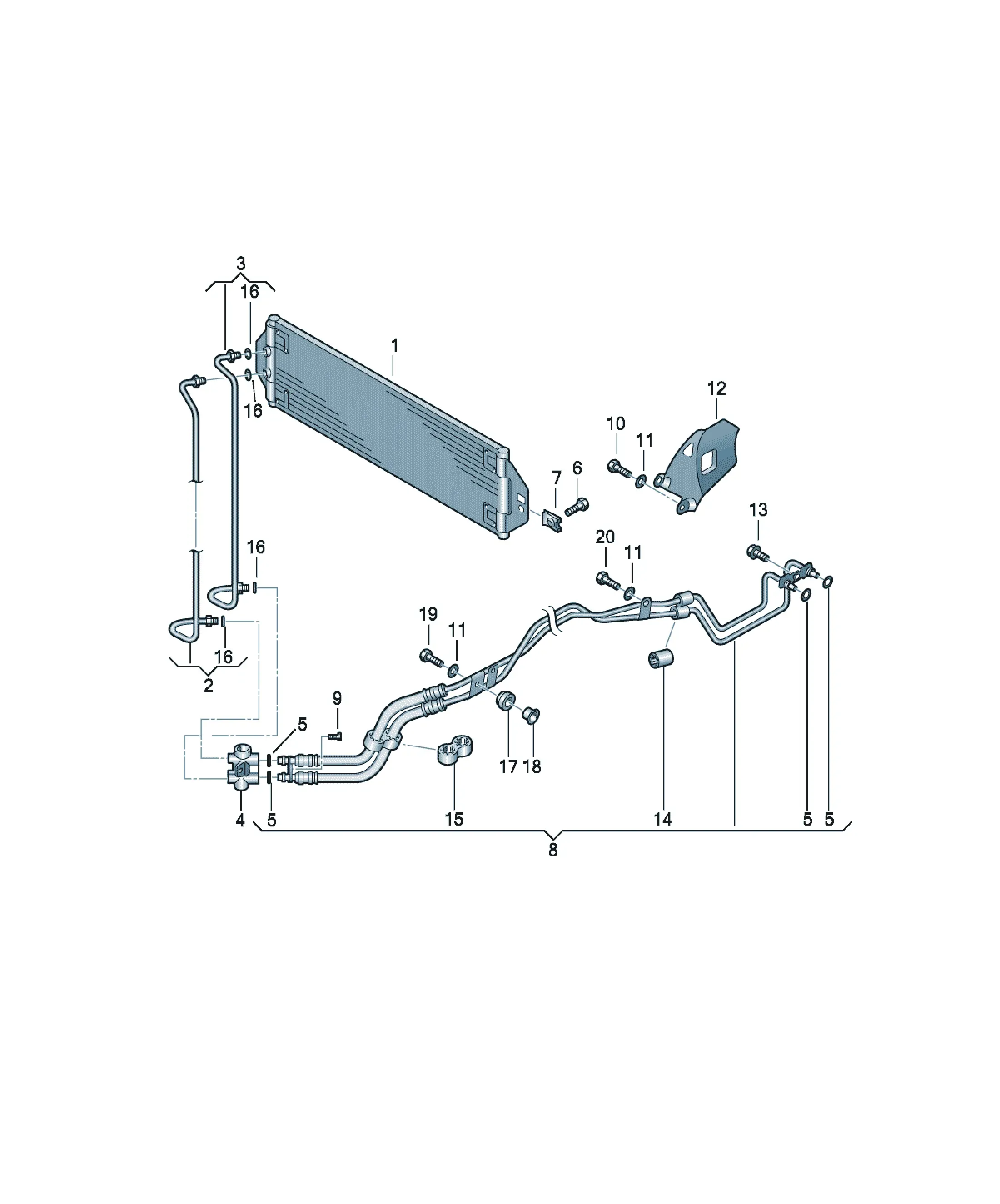

Система охлаждения масла КП

[Name] [QTY]

toothed lock washer 1

[Name] [QTY]

Distance piece 1

[Name] [Note] [QTY]

Gear oil cooler 1

use if required: >>D26.10.2009

7L0 317 821 D 1

7L0 317 822 D 1

Accompanying details: 7L0317821D; 7L0317822D

[Name] [Note] [QTY]

Hexagon bolt M6X15 2

[Name] [Note] [QTY]

Washer 6,4X12,5X1,6 2

[Name] [Note]

Guard plate

see illustration: 321-065

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X26 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X25 1

[Name] [QTY]

Grommet 1

[Name] [QTY]

Protective hose 1

[Name] [Note] [QTY]

O-ring 11,1X1,75 4

[Name] [Note] [QTY]

bolt, hex. hd. (combi.) self-locking M6X16 1

[Name] [Note] [QTY]

Oil pressure line 1

only to be used for: 7L0 317 021

D >> - 26.10.2009

[Name] [Note] [QTY]

Oil pressure line 1

only to be used for: 7L0 317 021 C

D - 26.10.2009>>

[Name] [Note] [QTY]

bolt, hex. hd. (combi.) self-locking M6X16 1

[Name] [Note] [QTY]

Oil pressure line 1

only to be used for: 7L0 317 021 C

D - 26.10.2009>>

[Name] [Note] [QTY]

Oil pressure line 1

only to be used for: 7L0 317 021

D >> - 26.10.2009

[Name] [QTY]

Oil temperature controller 1

[Name] [Note] [QTY]

O-ring 11,5X3 4

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

[Name] [Note] [QTY]

Retaining washer 8X0,50 2

[Name] [QTY]

Oil pressure line 1

[Name] [QTY]

Oil pressure line 1

[Name] [QTY]

Oil pressure line 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X22 1
