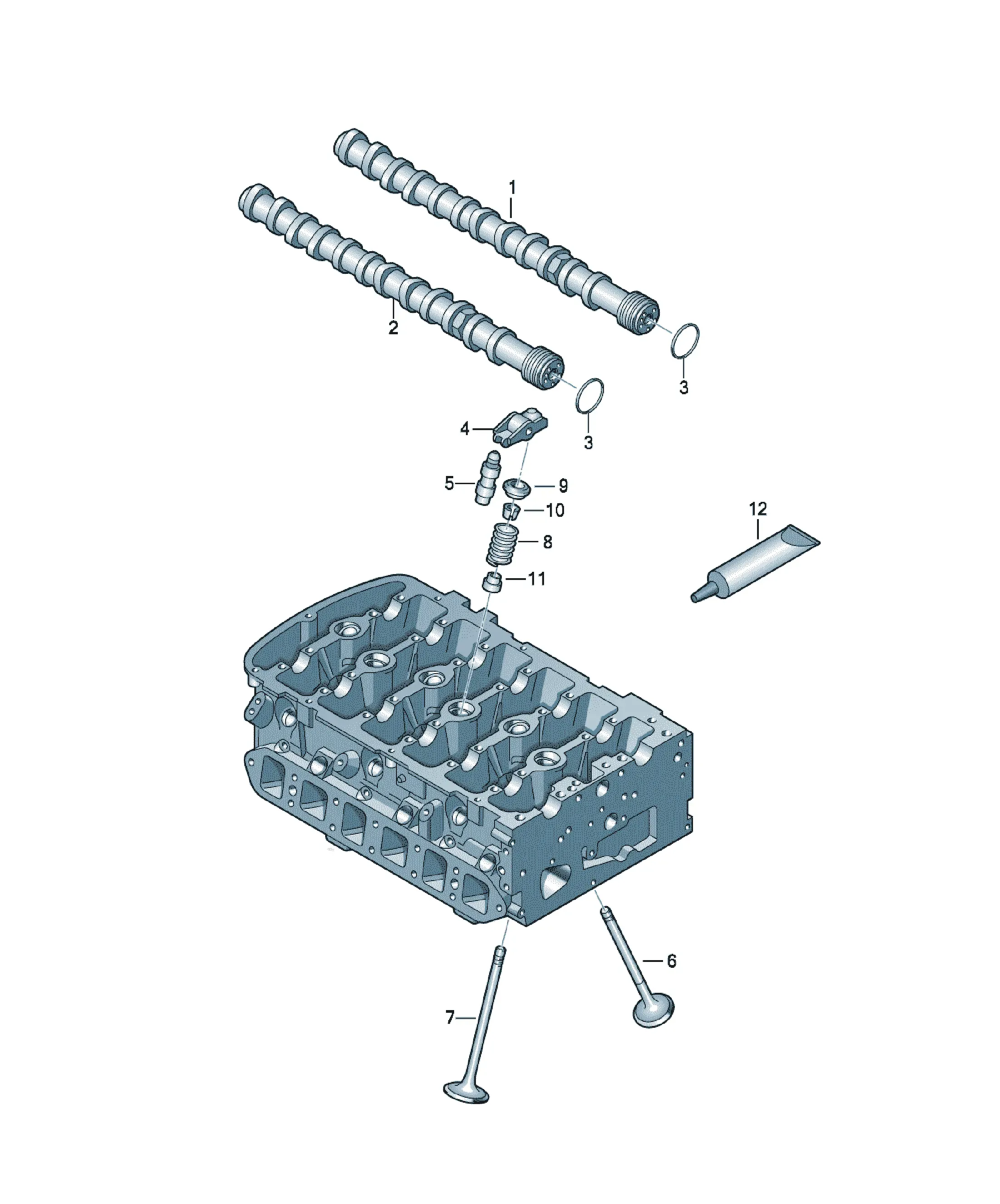

Распределительный вал и клапанный механизм

[Name] [Note] [QTY]

Camshaft Outlet 1

Replacements: 03H109101L

[Name] [QTY]

cotter, split 48

Replacements: 036109651A

[Name] [Note] [QTY]

Valve stem seal 6MM 24

[Name] [Note] [QTY]

molypaste, lubricating paste 50ML X

see workshop manual

Replacements: G 052750A2

[Name] [Note] [QTY]

Camshaft Inlet 1

Replacements: 03H109102L

[Name] [Note] [QTY]

seal ring 40X1,5 6

Replacements: 066109345B

[Name] [QTY]

roller rocker arm 24

[Name] [QTY]

equalizing element, hydraulic 24

[Name] [Note] [QTY]

Inlet valve 136 6

Replacements: 022109601AK

[Name] [Note] [QTY]

Inlet valve 102 6

Replacements: 022109601AJ

[Name] [Note] [QTY]

exhaust valve 136 6

Replacements: 022109611AB

[Name] [Note] [QTY]

exhaust valve 103 6

Replacements: 022109611AA

[Name] [QTY]

Valve spring 24

(use only as set)

Replacements: 03H109623C

[Name] [Note] [QTY]

spring disc upper 24
