Ремень ГРМ

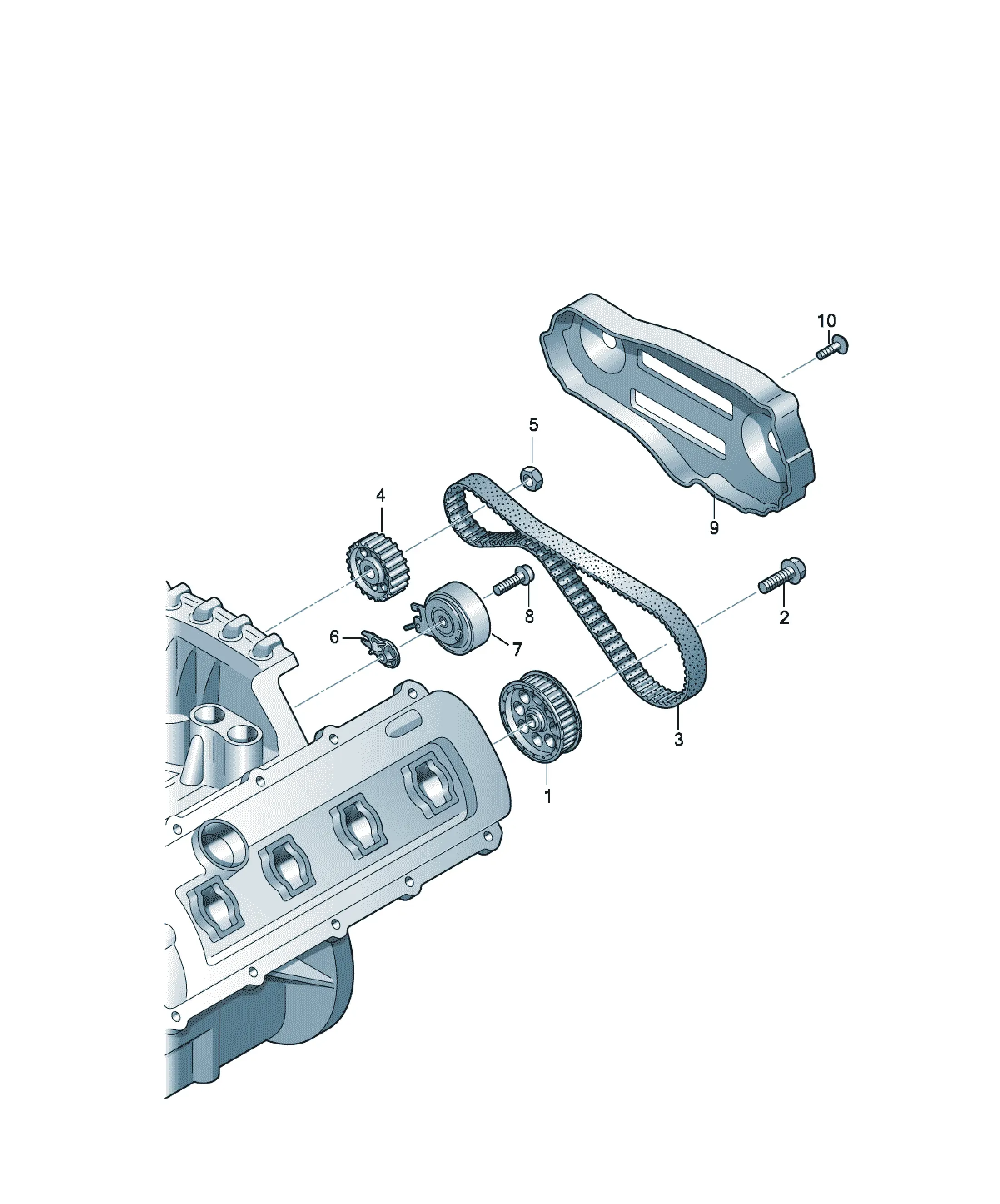

Привод газораспределительного механизма

Схемы узла

3 схемы

14 деталей

057109105L Предложения

[Name] [QTY]
toothed belt pulley 1
N10405604 Предложения

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X14 2
D >> - 10.10.2013
N10405604 Предложения

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X14 1
D - 10.10.2013>>
N10700201 Предложения

[Name] [Note] [QTY]
Hexagon socket head bolt M6X22 1
D - 10.10.2013>>
N10687501 Предложения

[Name] [Note] [QTY]
Hex collared bolt M14X1,50X72 1
057109119K Предложения

[Name] [Note] [QTY]
toothed belt Z=86 1
Replacements: 057109119L
057130111R Предложения

[Name] [QTY]
toothed belt pulley 1
Replacements: 057130111S
WHT002244 Предложения

[Name] [Note] [QTY]
Hexagon collar nut M18X1,5 1
057109185 Предложения

[Name] [QTY]
Retaining plate 1
Replacements: 057109185A
057109243M Предложения

[Name] [QTY]
Tensioning roller 1
N10666401 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X75 1
D - 01.10.2010>>
N91131601 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X70 1
D >> - 01.10.2010
057109123AE Предложения

[Name] [QTY]
Toothed belt guard 1
D >> - 10.10.2013
Replacements: 057109123AF; N 10700201
057109123AF Предложения

[Name] [QTY]
Toothed belt guard 1
D - 10.10.2013>>
