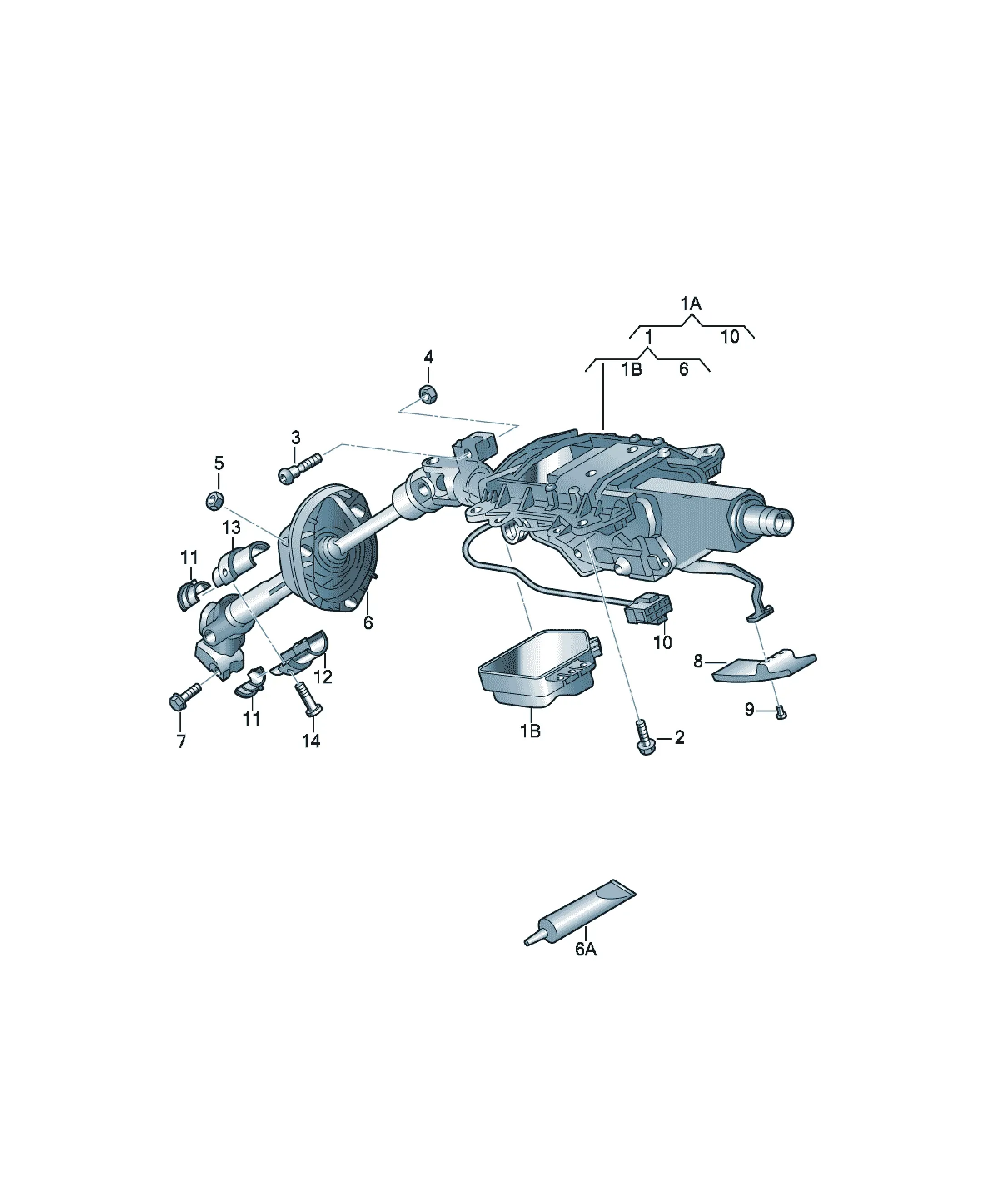

Рулевая колонка

[Name] [Note] [QTY]

Steering column rhd 1

for veh. with mech. height adjustable steering column

* Note technical * product information

mating connector

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

1J0972924 Flat contact housing 3 pin 1

[Name] [Note] [QTY]

Steering column lhd 1

for veh. with mech. height adjustable steering column

* Note technical * product information

mating connector

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

1J0972924 Flat contact housing 3 pin 1

[Name] [Note] [QTY]

Flat contact housing 4 pin 1

for vehicles with electic height-adjust. steering column

Possible single wire:

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

[Name] [Note] [QTY]

flat contact housing with retainer guide 4 pin 1

for vehicles with electic height-adjust. steering column

Possible single wire:

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

[Name] [Model info] [QTY]

locking sleeve PR:TE1,TF1, 2

D - MJ 2011>> TH1

[Name] [Model info] [QTY]

Balance weight PR:TE1,TF1, 1

D - MJ 2011>> TH1

[Name] [Model info] [QTY]

Balance weight PR:TE1,TF1, 1

D - MJ 2011>> TH1

[Name] [Note] [Model info] [QTY]

Oval hexagon socket head bolt M6X25 PR:TE1,TF1, 2

D - MJ 2011>> TH1

[Name] [Note] [QTY]

Steering column rhd 1

for vehicles with electic height-adjust. steering column

* Note technical * product information

mating connector

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

1J0972924 Flat contact housing 3 pin 1

3B0937741 Flat connector housing with contact locking mechanism 8 pin 1

[Name] [Note] [QTY]

Steering column lhd 1

for vehicles with electic height-adjust. steering column

* Note technical * product information

mating connector

8E0972420C Flat contact housing with contact locking mechanism 20 pin 1

black

1J0972924 Flat contact housing 3 pin 1

3B0937741 Flat connector housing with contact locking mechanism 8 pin 1

[Name] [Note]

Control unit for electronic steering column lock

No replacement part

Included in position: 1

[Name] [Note] [QTY]

Hex collared bolt M8X28 4

[Name] [Note] [QTY]

Oval head locating bolt with multi-point socket head M8X10X45 1

[Name] [Note] [QTY]

Hexagon collar nut self-locking M8 1

[Name] [Note] [QTY]

Hexagon flange nut, self-locking M6 3

[Name] [QTY]

Gaiter 1

[Name] [Note] [QTY]

special lubricant 30ML 1

[Name] [Note] [QTY]

Hex collared bolt M10X35 1

[Name] [QTY]

handle 1

for mechanical height- adjustable steering column

[Name] [Note] [QTY]

Oval hexagon socket head bolt M5X8 2

for veh. with mech. height adjustable steering column
