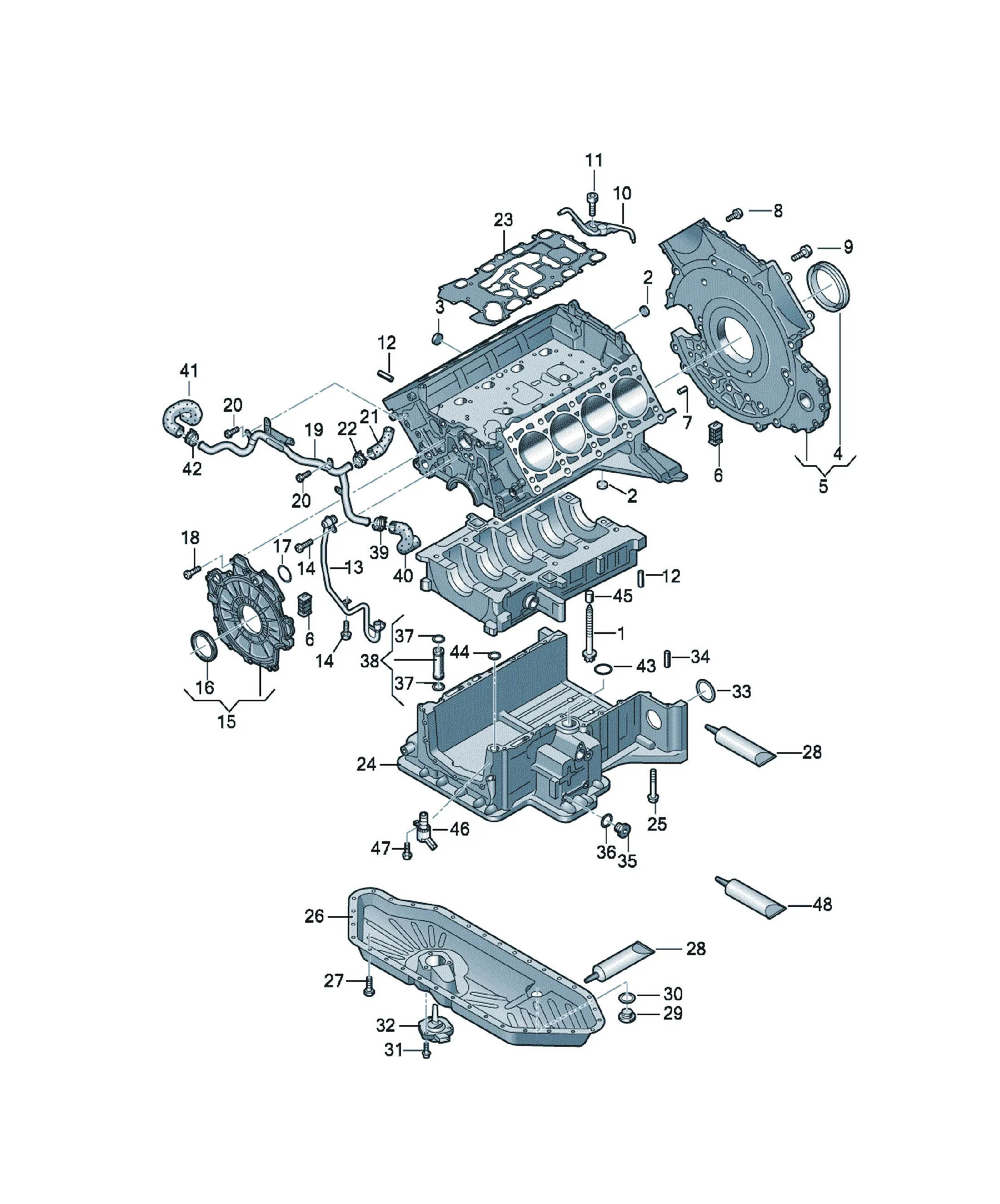

Система смазки двигателя

[Name] [Note] [QTY]

O-ring 12X2 1

to be used for item: 46

[Name] [Note] [QTY]

Hexagon head bolt M11X112 20

[Name] [QTY]

jet 4

[Name] [Note] [QTY]

Hex socket head locating bolt M6X6X12 4

[Name] [Note] [QTY]

spring pin 6,2X22 8

[Name] [QTY]

oil pipe 1

[Name] [Note] [QTY]

round hd. screw M6X10 2

[Name] [Note] [QTY]

Sealing flange front 1

also use: D 176 501 A1

Accompanying details: D 176501A1

[Name] [QTY]

Shaft oil seal 1

[Name] [Note] [QTY]

O-ring 17,3X1,5 1

[Name] [Note] [QTY]

O-ring 8X2 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 16

[Name] [Model info] [QTY]

Breather line CCFC 1

[Name] [Model info] [QTY]

Breather line CCFA 1

[Name] [Note] [QTY]

End cap 12 5

also use: D 000 600 A2

Accompanying details: D 000600A2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 2

[Name] [Note] [QTY]

air hose 1

see illustration, item: 129-025,26

[Name] [Note] [QTY]

clamp 23,5X7X0,6 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Engine oil sump 1

D >> - 16.09.2010

Replacements: 057103601T

[Name] [QTY]

Engine oil sump upper part 1

D - 16.09.2010>>

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M7X50 7

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M7X105X39 9

[Name] [QTY]

Engine oil sump lower part 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X18 24

[Name] [Note] [QTY]

Silicon sealant 50ML *

[Name] [Note] [QTY]

sealing plug M14X1,50 1

[Name] [Note] [QTY]

End cap 20 3

also use: D 000 600 A2

Accompanying details: D 000600A2

[Name] [Note] [QTY]

seal ring 14X20 1

[Name] [Note] [QTY]

Hexagon collar nut M6 3

[Name] [QTY]

oil level sensor 1

Replacements: 03C907660T

mating connector

3D0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

O-ring 42X2,5 1

[Name] [Note] [QTY]

spring pin 6,2X22 8

[Name] [Note] [QTY]

sealing plug M18X1,50 1

[Name] [Note] [QTY]

seal ring 18X22 2

[Name] [Note] [QTY]

O-ring 7,65X1,78 2

[Name] [QTY]

oil pipe 1

[Name] [Note] [QTY]

Spring band clamp 27X12 1

[Name] [QTY]

Shaft oil seal 1

[Name] [QTY]

Hose 1

[Name] [Note] [QTY]

Hose right 1

[Name] [Note] [QTY]

Ear crimp hose clamp 28,6X7X0,6 1

[Name] [Note] [QTY]

O-ring 35X3 1

[Name] [Note] [QTY]

O-ring 20X2,5 1

[Name] [QTY]

dowel sleeve 2

[Name] [Model info] [QTY]

control valve CCFA 1

with:

O-ring

Replacements: 06E115243G

mating connector

4H0973702A Flat contact housing 2 pin 1

Connection piece black

thermostat

Possible single wire:

[Name] [Model info] [QTY]

control valve CCFC 1

with:

O-ring

Replacements: 06E115243H

mating connector

4H0973702A Flat contact housing 2 pin 1

Connection piece black

thermostat

Possible single wire:

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 2

[Name] [Note] [QTY]

Locking fluid 18ML X

to be used for item: 2,3

Replacements: D 200005A2

[Name] [Note] [Model info] [QTY]

Sealing flange rear CCFC 1

also use: D 176 501 A1

Accompanying details: D 176501A1

Replacements: 057103171AG

[Name] [Note] [Model info] [QTY]

Sealing flange rear CCFA 1

also use: D 176 501 A1

Accompanying details: D 176501A1

[Name] [Note] [QTY]

Seal 13,6X11,6 1

[Name] [Note] [QTY]

Seal 19,6X11,6 3

[Name] [Note] [QTY]

dowel sleeve 16X13,5 2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X30 21

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X32 6
