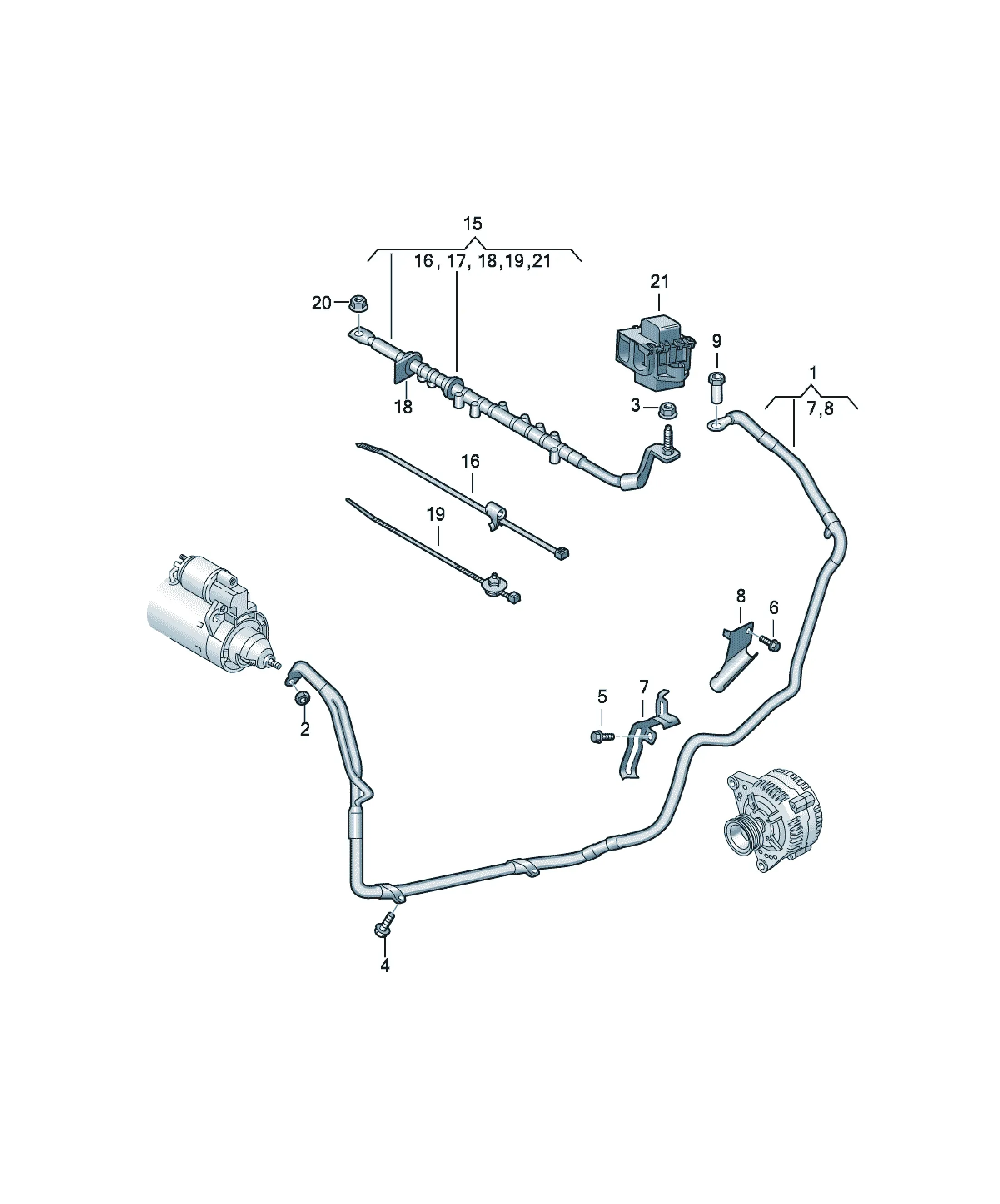

Жгут проводов стартера и генератора

[Name] [QTY]

wiring harness for starter and alternator 1

[Name] [QTY]

wiring harness for jumper cable socket 1

[Name] [Note] [QTY]

Cable tie with holder for weld pin: 5X200MM X

5MM

[Name] [Note] [QTY]

Grommet 36/8 1

[Name]

Grommet

** not exchangeable **

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 1

toothed quadrant outer

For hole/material thickness: 6,5/0,3-3MM

[Name] [Note] [QTY]

hexagon nut, self-locking M8 1

[Name] [Note] [QTY]

Hexagon collar nut M8 1

[Name]

housing for cable connector

** not exchangeable **

[Name] [Note] [QTY]

hexagon nut, self-locking M10 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X20 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X18 1

[Name] [QTY]

holder for wiring harness 1

No replacement part

[Name] [QTY]

holder for wiring harness 1

No replacement part

[Name] [Note]

Slave start socket

see illustration, item: 972-000,13
