ТНВД (топливный насос высокого давления)

Топливный насос высокого давления

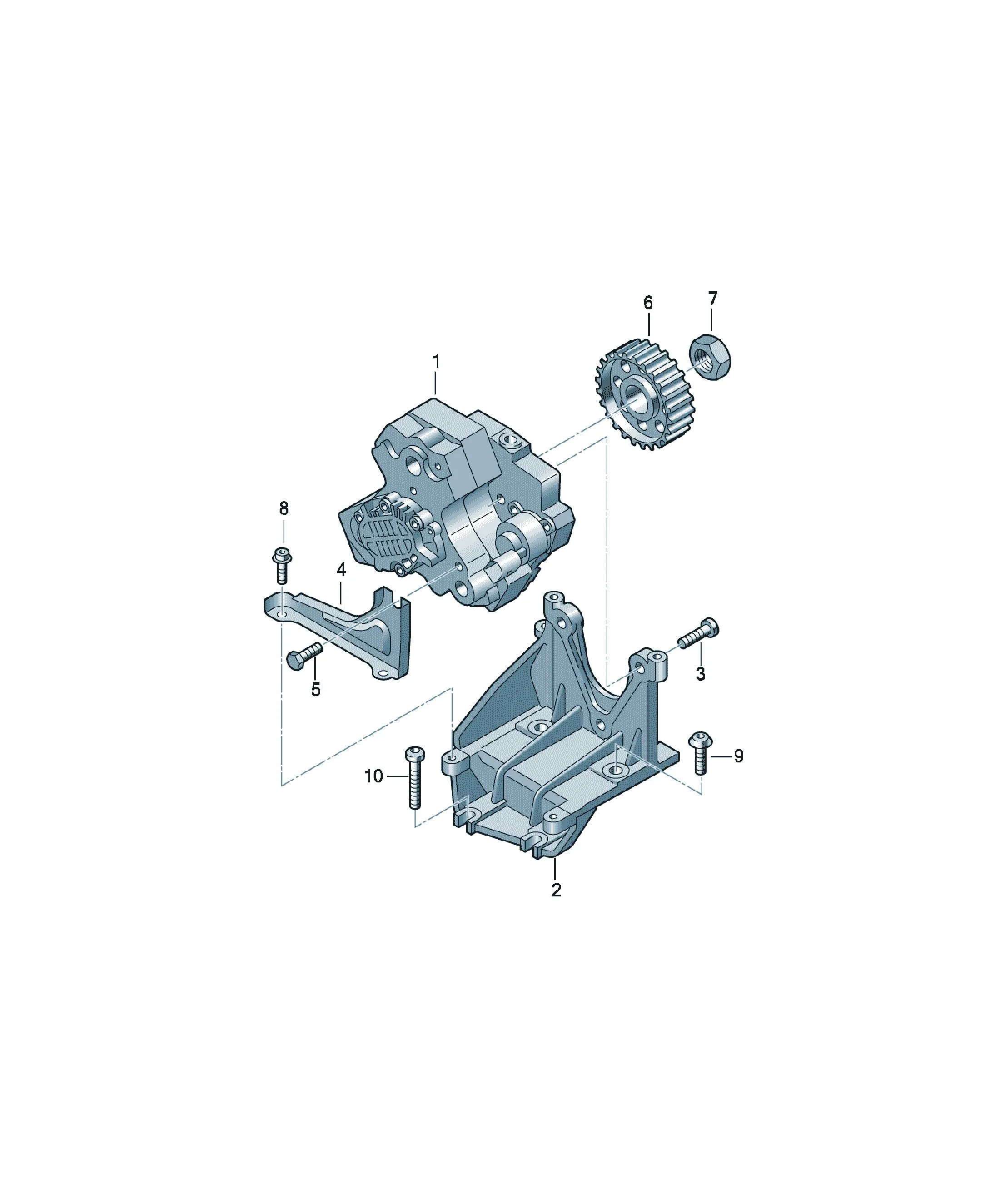

Схемы узла

4 схемы

13 деталей

Втулка центрирующая
03L260817 Предложения

[Name] [Note] [QTY]
Centre sleeve 11,15X6,5 2
057130755AC Предложения

[Name] [QTY]
high pressure pump 1
without:
pre-supply pump
Caution: Before ordering, check the part number in the vehicle.
D - MJ 2011>>
mating connector
1J0973722 Flat contact housing with contact locking mechanism 2 pin 1
black
057130851CX Предложения

[Name] [QTY]
high pressure pump 1
without:
pre-supply pump
Caution: Before ordering, check the part number in the vehicle.
D - MJ 2011>>
Replacements: 057130755AC
Old part
057130755AC high pressure pump 1
Labelled with part number
057130755S high pressure pump 1
Labelled with part number
N91104701 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X80 2
057130147AE Предложения

[Name] [QTY]
Console 1
[Name]
No replacement part
[Name]
No replacement part
[Name]
No replacement part
057130111R Предложения

[Name] [QTY]
toothed belt pulley 1
D >> - 10.03.2010
Replacements: 057130111S
057130111S Предложения

[Name] [QTY]
toothed belt pulley 1
D - 10.03.2010>>
WHT002244 Предложения

[Name] [Note] [QTY]
Hexagon collar nut M18X1,5 1
[Name]
No replacement part
N10686001 Предложения

[Name] [Note] [QTY]
flat round head bolt M8X20 2
