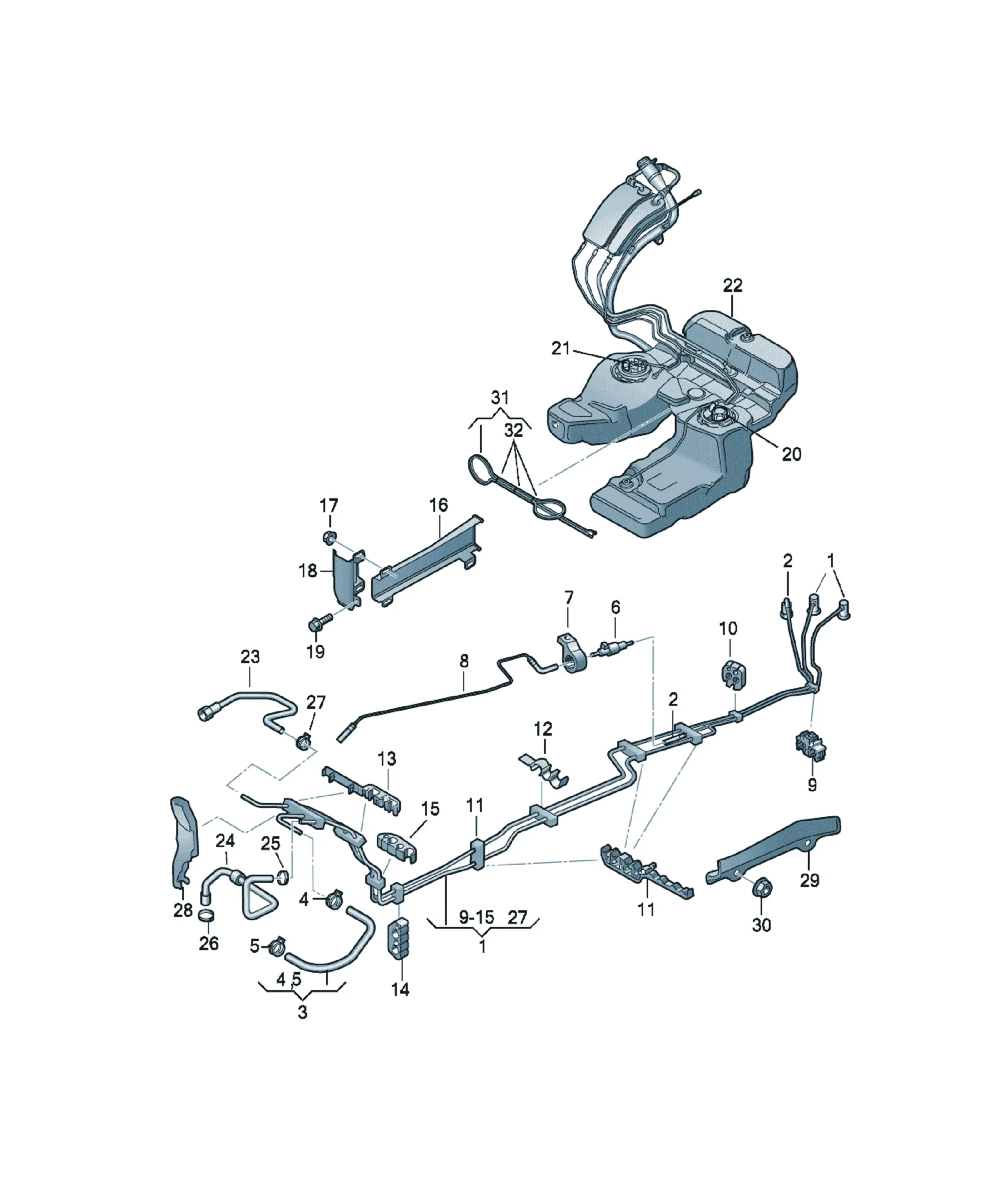

Топливопровод

[Name] [Note] [QTY]

Double clip 16X10 X

[Name] [Note] [QTY]

Fuel hose feed 1

rear

D >> - 15.11.2010

Replacements: 7L8201217A

[Name] [Note] [QTY]

Double clip 16X10 1

[Name] [Note] [QTY]

Spring band clamp 16X12 2

only for: 7L8 201 217

[Name] [Note] [QTY]

Fuel hose feed 1

rear

D - 15.11.2010>>

[Name] [Note] [QTY]

Fuel line with breather pipe feed 1

use if required: 7L8 201 355 A 1

D >> - 15.11.2010

Accompanying details: 7L8201355A

Replacements: 7L8201080AM

[Name] [Note] [QTY]

Fuel line with breather pipe feed 1

use if required: 7L8 201 355 A 1

Accompanying details: 7L8201355A

[Name] [Note] [Model info] [QTY]

Fuel line with breather pipe feed "ROK","USA" 1

[Name] [Note] [Model info] [QTY]

Fuel line with breather pipe feed "ROK","USA" 1

2

D >> - 15.11.2010

Replacements: 7L8201080AP

[Name] [Note] [Model info] [QTY]

Fuel line with breather pipe feed "ROK","USA" 1

2

D - 15.11.2010>>

[Name] [Note] [QTY]

Fuel line with breather pipe feed 1

use if required: 7L8 201 355 A 1

D - 15.11.2010>>

Accompanying details: 7L8201355A

[Name] [QTY]

Retainer for fuel line 1

[Name] [QTY]

Securing clip 3

Replacements: 7P0201449

[Name] [QTY]

Retainer for fuel line 1

[Name] [QTY]

Clip X

[Name] [QTY]

Retainer for fuel line 1

[Name] [QTY]

Retainer for fuel line 1

[Name] [QTY]

Protective plate 1

[Name] [Note] [QTY]

Hexagon collar nut self-locking M6 3

[Name] [QTY]

Protective plate 1

[Name] [Model info] [QTY]

Protective plate BAR 1

[Name] [Model info] [QTY]

Protective plate BHK 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X20 1

[Name] [QTY]

fuel pipe 1

for additional heater

[Name] [Note]

Fuel filter with flange

see illustration: 919-035

[Name] [Note]

Fuel delivery unit and sender for fuel gauge

see illustration: 919-035

[Name] [Note]

Fuel tank

see illustration: 201-000

[Name] [Note]

Connecting hose

see illustration: 133-022

[Name] [Note] [Model info] [QTY]

Connecting hose BAR 1

see illustration: 133-063

[Name] [Note]

Vacuum hose

see illustration: 133-022

[Name] [Model info] [QTY]

Vacuum hose BAR+PR:A8U 1

[Name] [Note] [Model info]

Vacuum hose BHK+PR:A8U

see illustration: 133-042

[Name] [Note]

Spring band clamp

see illustration: 133-022

[Name] [Note] [Model info] [QTY]

clamp 11,9X7X0,6 BAR+PR:A8U 1

[Name] [Note]

Spring band clamp

see illustration: 133-022

[Name] [Note] [Model info] [QTY]

Clamp 14,8X7X0,60 BAR+PR:A8U 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note]

Spring band clamp

see illustration, item: 133-024,34

[Name] [QTY]

Retainer for fuel line 1

[Name] [QTY]

Protective plate 1

[Name] [Note] [Model info] [QTY]

Fuel hose feed BHK 1

[Name] [Note] [Model info] [QTY]

Fuel hose feed BAR 1

[Name] [Note] [QTY]

hexagon nut, self-locking M8 2

[Name] [QTY]

fuel pipe 1

D - 09.08.2010>>

[Name] [Note] [QTY]

Cable ties A2,5X144 3

D - 09.08.2010>>

Replacements: N 10835201

[Name] [Note] [QTY]

Spring band clamp 16X12 1

[Name] [Note]

Spring band clamp

see illustration: 133-024

[Name] [Note] [Model info] [QTY]

Spring band clamp 14,5X12 BAR 1

[Name] [Note] [Model info]

fuel metering pump PR:A8S

see illustration: 819-046

[Name] [Note] [Model info]

rubber support ring PR:A8S

see illustration: 819-046

[Name] [Note] [Model info]

fuel pipe PR:A8S

for models with supplementary heater

see illustration: 819-046

[Name] [QTY]

Clip X
