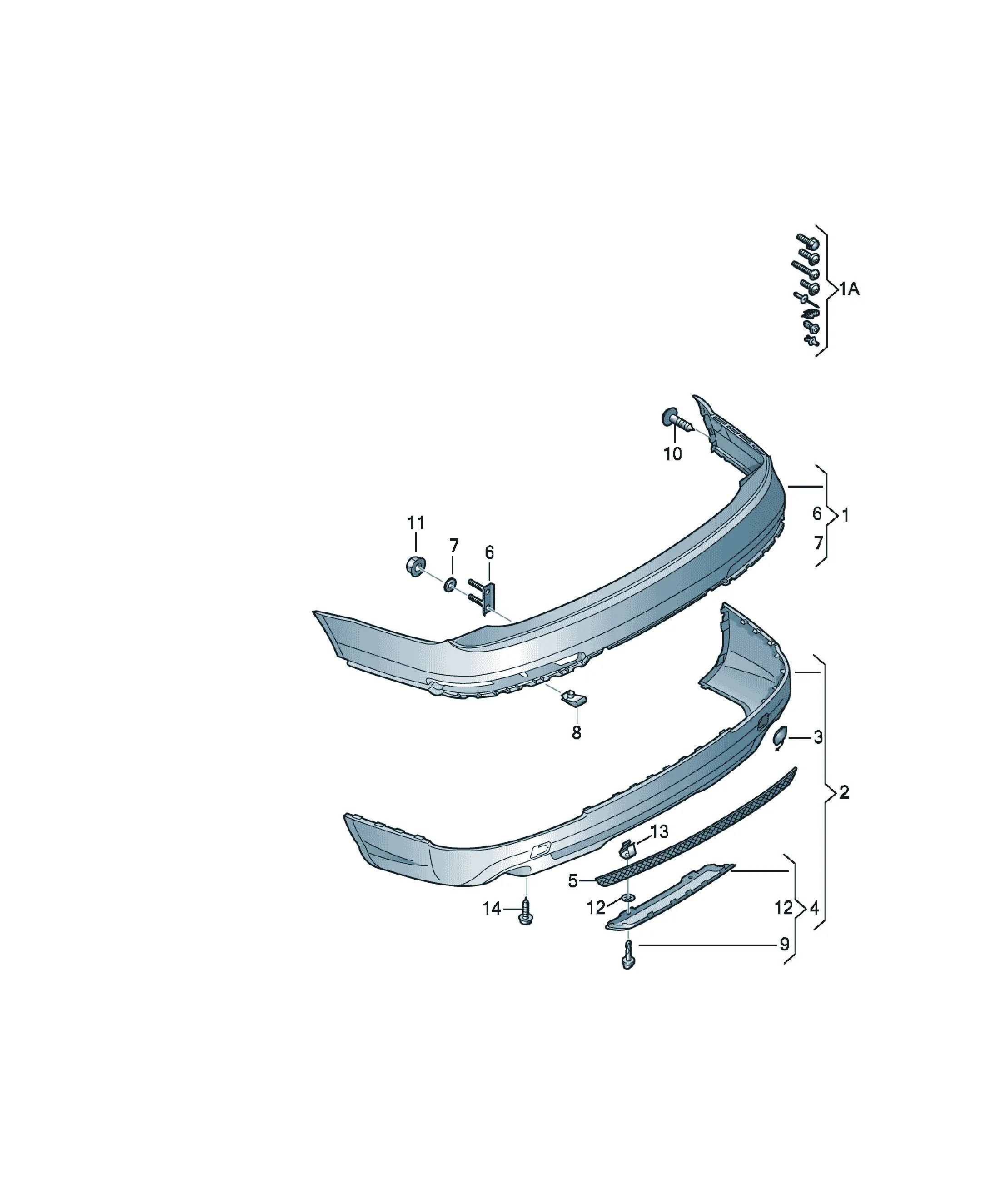

Задний бампер

[Name] [Note] [QTY]

Speed nut 4,8X16,5X11 2

[Name] [Note] [QTY]

Hexagon socket head panel bolt 4,8X16 2

[Name]

primed

Items supplied

4L0807511G bumper 1

4L0807511G GRU primed

4L0807385A Closing element 1

Securing plate 2

Seal 4

[Name] [QTY]

Bumper cover 1

[Name] [Note] [QTY]

oval head panel screw 5X16 2

[Name] [Note] [QTY]

hex. nut with washer M6 4

[Name] [Note] [QTY]

Clamping washer 18X1MM 2

[Name] [QTY]

Clip 2

[Name] [Note] [QTY]

Hexagon socket head panel bolt 4,8X19 5

[Name] [QTY]

1 set fixing parts for bumper 1

repair set

N 91103802 Hex collared bolt M12X1,5X50 8

N 91029202 Hex collared bolt M12X1,5X100X49 8

N 10621301 expanding nut 5X13,2 16

WHT003954 Hexagon socket flat head bolt 5X16 16

N 90570802 hex. nut with washer M6 2

WHT003286B Washer 20X7,4X0,05 2

8T0827310A Clip 9MM 4

N 90974701 Hexagon socket head panel bolt 5X16 4

N 90488005 hex. nut with washer M6 4

N 91057001 oval head panel screw 5X16 6

N 90651304 Hexagon socket head panel bolt 4,8X22 5

N 90368203 Speed nut M5X20,8X15 8

N 90808201 Hexagon socket head panel bolt 6X18,5 3

6Q0807180 Clip 2

N 90847501 Spring clip 12X10,4 2

[Name]

primed

Items supplied

4L0807521AL Spoiler 1

4L0807521ALGRU primed

4L0807449G cover for towing eye 1

4L0807449G GRU primed

4L0807450G cover for towing eye 1

4L0807450G GRU primed

4L0807819M End cap 1

4L0807819M 1RR Platinum grey

4L0919289H Retainer for ultrasound sensor 1

4L0919290H Retainer for ultrasound sensor 1

4L0919289J Retainer for ultrasound sensor 1

4L0919290J Retainer for ultrasound sensor 1

[Name] [Model info] [QTY]

Spoiler PR:7X0,7X9 1

[Name]

primed

Items supplied

4L0807521AK Spoiler 1

4L0807521AKGRU primed

4L0807449G cover for towing eye 1

4L0807449G GRU primed

4L0807450G cover for towing eye 1

4L0807450G GRU primed

4L0807819M End cap 1

4L0807819M 1RR Platinum grey

[Name] [Model info] [QTY]

Spoiler PR:7X1,7X2, 1

7X4,7X8

[Name] [Note] [QTY]

cover for towing eye left 1

[Name]

primed

[Name] [Note] [QTY]

cover for towing eye right 1

[Name]

primed

[Name] [Note] [Model info]

Platinum grey

paint if required

use if required: N 015 437 4 "USA"

N 907 750 01

[Name] [QTY]

End cap 1

[Name]

Black

[Name] [QTY]

Trim for bumper 1

[Name] [Note]

Pin

Included in position: 1

[Name] [Note]

Seal

Included in position: 1

[Name] [Note] [QTY]

Speed nut M5X20,8X15 2

[Name] [Note] [QTY]

Pin black 2

(plastic)
