Рулевая рейка, тяги, наконечники, пыльники

Рулевой механизм

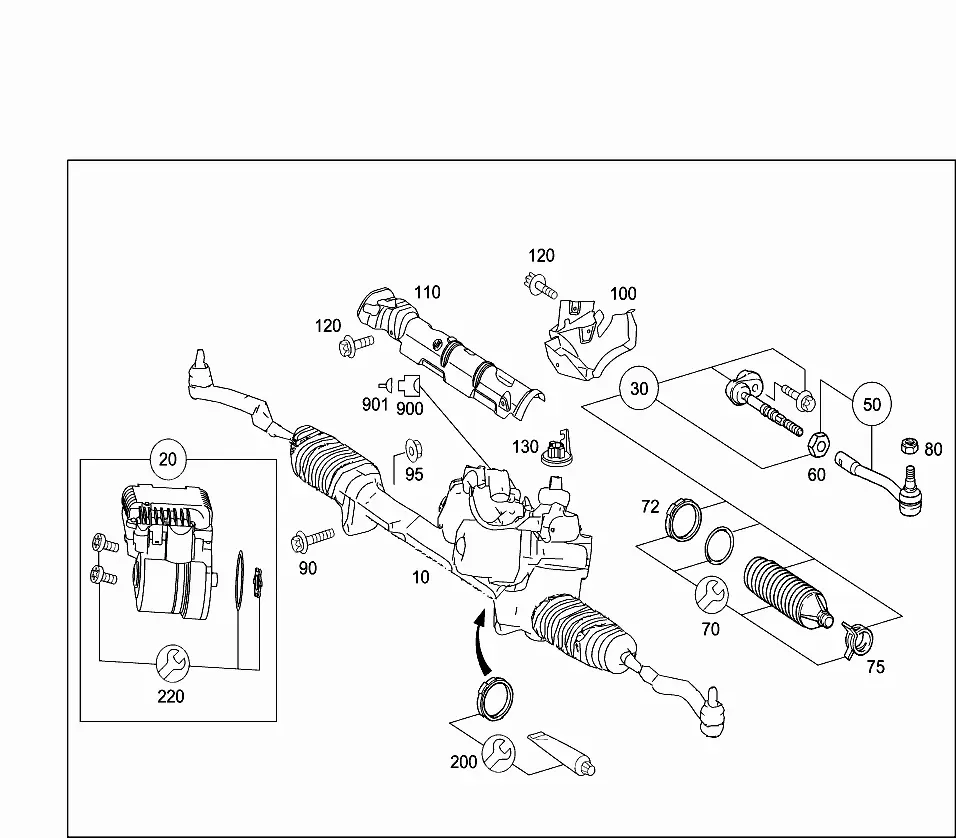

Схемы узла

2 схемы

Детали

32 детали

A1694601700 Предложения

Replaced by A 1694602100
697: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Version: L
QTY: 001
A1694603000 Предложения

697: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Version: L
QTY: 001
A1694600700 Предложения

RACK-AND-PINION STEERING
Replaced by A 1694601700
697: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Version: L
QTY: 001
A1694602100 Предложения

Replaced by A 1694602700
697: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Version: L
QTY: 001
A1694602700 Предложения

Replaced by A 1694603100
697: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Version: L
QTY: 001
A1694603100 Предложения

Replaced by A 1694603000
697: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Version: L
QTY: 001
A1694660438 Предложения

STEERING GEAR
QTY: 001
A1694660538 Предложения

TUNNEL
QTY: 001
N000000001114 Предложения

ATTACHMENT SHIELD
M6X15
QTY: 005
A1694600364 Предложения

STEERING GEAR
011: From Chassis: J 231888
011: From Date: 27.09.2005
Version: L
QTY: 001
A1699010600 Предложения

STEERING AID
672: PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
QTY: 001
A1694600036 Предложения

RACK-AND-PINION STEERING
QTY: 001
A1694602000 Предложения

STEERING GEAR
QTY: 001
A1693300903 Предложения

INSIDE LEFT
006: From Chassis: J 126740
006: From Date: 31.03.2005
003: OBSERVE WIS
004: READ OFF STEERING NUMBER DIRECTLY AT STEERING
007: NOT VALID FOR STEERING A 169 460 11 00/12 00
Version: L
QTY: 001
A1693300803 Предложения

INSIDE RIGHT
006: From Chassis: J 126740
006: From Date: 31.03.2005
003: OBSERVE WIS
004: READ OFF STEERING NUMBER DIRECTLY AT STEERING
007: NOT VALID FOR STEERING A 169 460 11 00/12 00
Version: L
QTY: 001
A1693300503 Предложения

OUTSIDE LEFT
QTY: 001
A1693300603 Предложения

OUTSIDE RIGHT
QTY: 001
N308673014001 Предложения

TIE ROD TO STEERING ARM
M14X1.5
QTY: 002
A1694600396 Предложения

RIGHT TRACK ROD
QTY: 001
A1694600196 Предложения

TRACK ROD LEFT
QTY: 001
A1684630017 Предложения

INNER BOOT ON STEERING
403: NOT USED
QTY: 002
A2104630817 Предложения

OUTER BOOT ON STEERING
15.2-18.5 MM
403: NOT USED
QTY: 002
N000000005272 Предложения

TIE ROD TO STEERING KNUCKLE
Replaced by N000000003281
414: THE OLD PART MUST NO LONGER BE INSTALLED
QTY: 001
or
TIE ROD TO STEERING KNUCKLE
Replaced by N000000003281
QTY: 001
N000000003281 Предложения

TIE ROD TO STEERING KNUCKLE
M14X1,5
QTY: 002
A1689900117 Предложения

RACK-AND-PINION STEER. TO INT. SUPPORT
QTY: 002
A2105402181 Предложения

LH CONTROL UNIT
3-PIN MQS;N68/1
QTY: 001
A0465459628 Предложения

LH CONTROL UNIT
2-PIN YAZAKI 9.5 Y TYPE;N68/1
QTY: 001
A0195455126 Предложения

LH CONTROL UNIT
N68/1; 9.5MM
A0005456980 Предложения

LH CONTROL UNIT
1.4-1.9 MM;N68/1
A0065450926 Предложения

LH CONTROL UNIT
0.2-0.5 MM2;N68/1
Replaced by A 0085456326
A0085456326 Предложения

LH CONTROL UNIT
0.5-0.75 MM2 MQS;N68/1
N913023010002 Предложения

RACK-AND-PINION STEER. TO INT. SUPPORT
M10
QTY: 002
