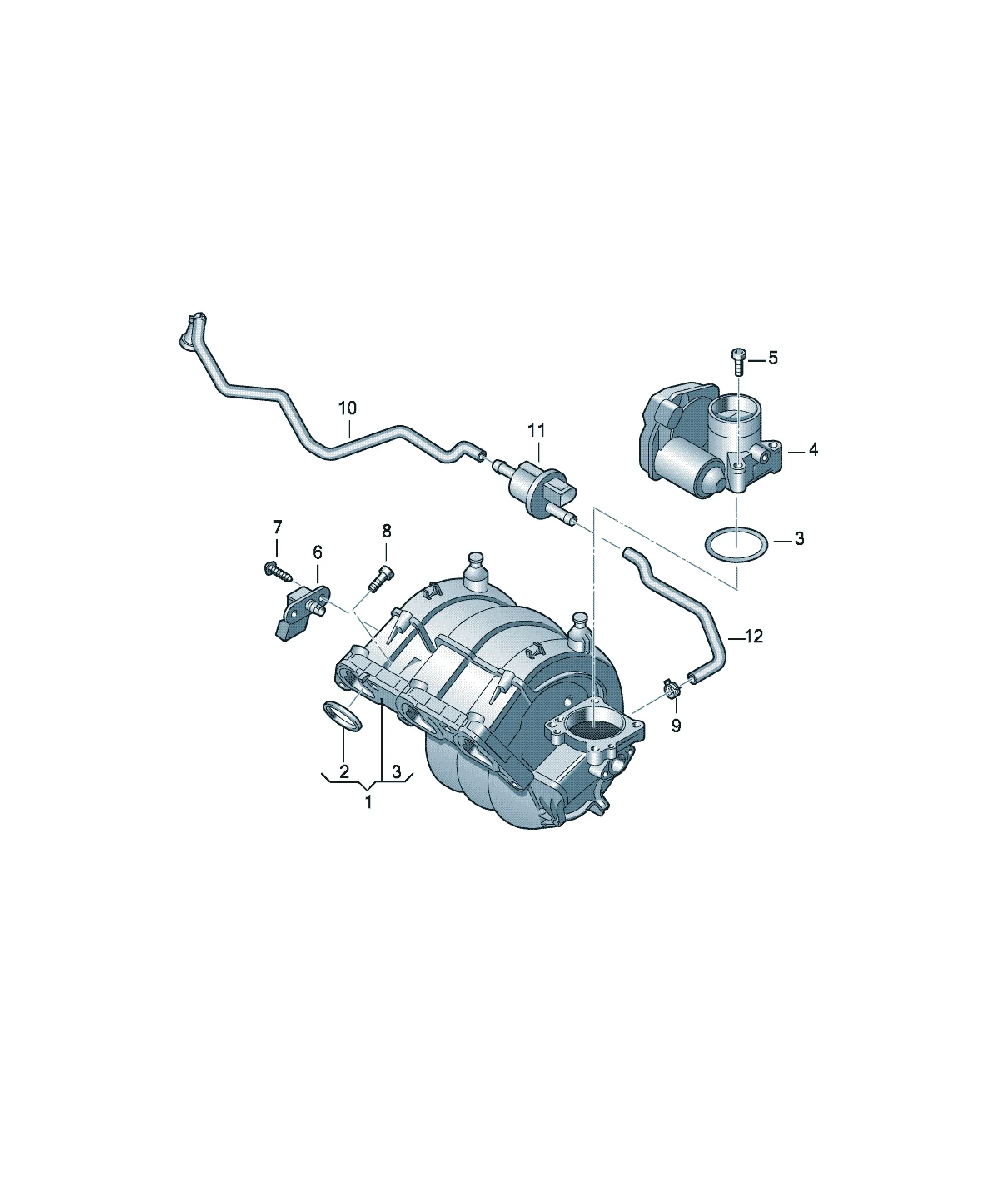

Система впуска

[Name] [QTY]

Intake manifold 1

[Name] [QTY]

Connecting hose 1

[Name] [QTY]

Valve 1

mating connector

1J0973722A Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Connecting hose 1

[Name] [QTY]

Seal 3

[Name] [QTY]

Seal 3

[Name] [QTY]

Throttle valve control element 1

mating connector

1J0973713 Flat contact housing 6 pin 1

black

[Name] [Note] [QTY]

Hexagon socket flat head bolt 6X55 4

[Name] [QTY]

Pressure sensor 1

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

8K0973704 Flat contact housing with contact locking mechanism 4 pin 1

black

[Name] [Note] [QTY]

self-tapping screw 5X16 2

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M8X38 5

[Name] [Note] [QTY]

Spring band clamp 14X12 1
