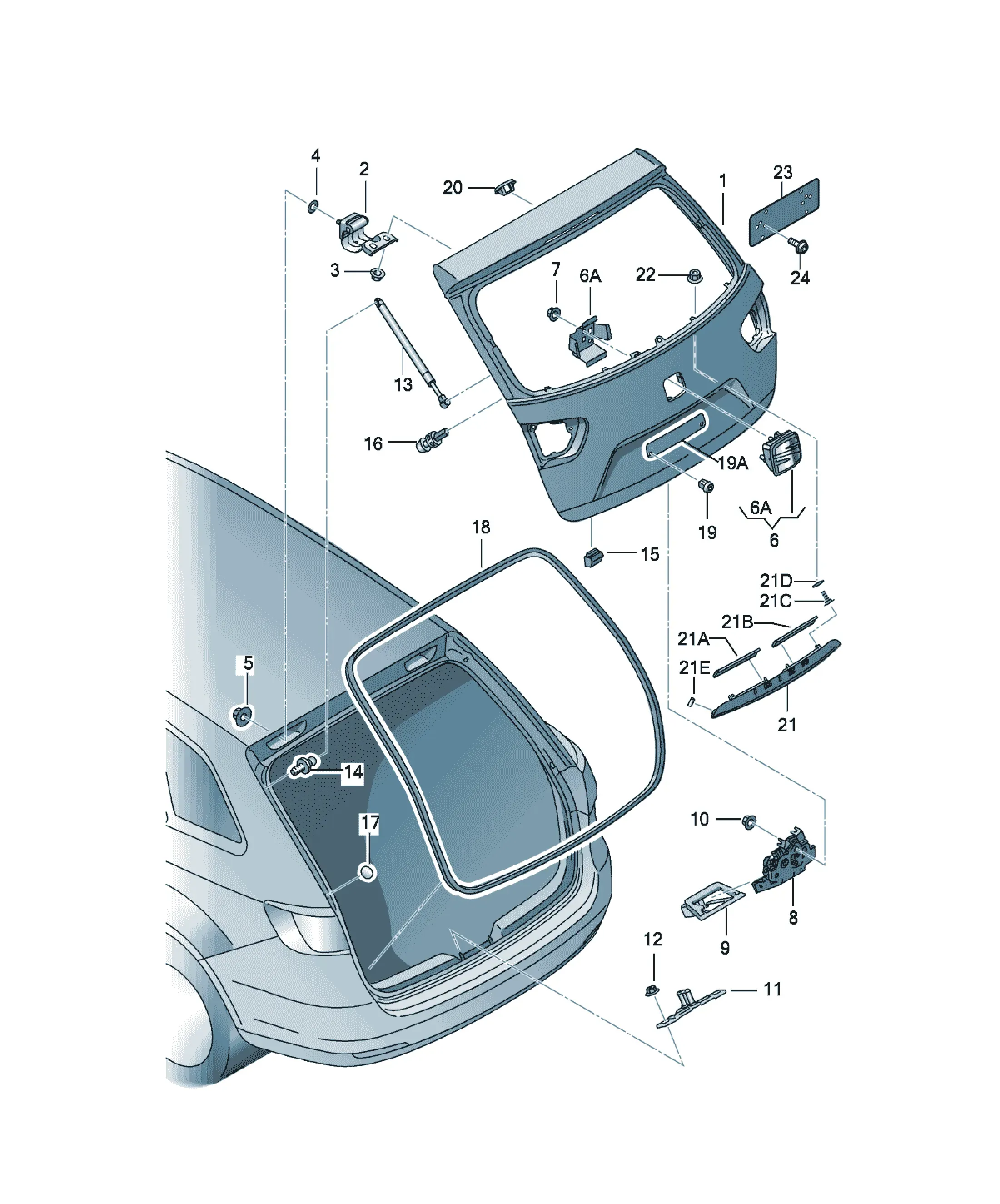

Крышка багажника

[Name] [Note] [QTY]

Static mixer X

only to be used for: D 004 600 M2

Window replacement

[Name] [Note]

Bungs

Additional brake light

see illustration, item: 945-010,16

[Name] [Note] [QTY]

2-pack epoxy adhesive 48ML X

[Name] [QTY]

Rear lid 1

D - 04.11.2013>>

[Name] [QTY]

Rear lid 1

D >> - 04.11.2013

[Name] [Note] [QTY]

Hexagon collar nut M8 4

[Name] [QTY]

Striker plate 1

[Name] [Note] [QTY]

Hexagon collar nut self-locking M8 2

[Name] [QTY]

Gas filled strut 2

[Name] [Note] [QTY]

Ball stud M8/T30 2

[Name] [QTY]

Stop buffer 2

[Name] [QTY]

stop buffer, adjustable 2

[Name] [Note] [QTY]

Protective film 290X210MM 2

[Name]

Satin black

[Name] [QTY]

gasket for flap 1

[Name]

Satin black

[Name] [QTY]

gasket for flap 1

[Name] [Note] [QTY]

expanding nut 5X14,4 2

[Name] [Note] [QTY]

packing, adhesive 2,5MM 1

Noise insulation

Shorten if necessary

[Name] [QTY]

Lid hinge 2

[Name] [Note] [QTY]

Bungs 12X4MM 1

[Name] [Note] [QTY]

grip molding 1

Rework if necessary

also use: 6J8 853 687 1

(739)

see illustration, item: 853-030,4

also use: 5N0 943 021 A 2

>>D10.11.2014

5N0 943 021 B 2

D11.11.2014>>

see illustration, item: 945-010,20

Accompanying details: 6J8853687 739

[Name]

primed

[Name] [Note] [QTY]

Seal left rear 1

[Name] [Note] [QTY]

Seal right rear 1

[Name] [Note] [QTY]

Securing element M6 4

contents of package: 5

D - 30.04.2012>>

[Name] [Note] [QTY]

Securing element M6 4

contents of package: 5

D >> - 30.04.2012

[Name] [Note] [QTY]

Washer plastic 4

[Name] [QTY]

Sealing element 3

[Name] [Note] [QTY]

Hexagon collar nut M6 3

[Name] [Model info] [QTY]

Licence plate holder PR:6P5 1

D - 03.09.2012>> - 24.06.2013

[Name] [Model info] [QTY]

Licence plate holder PR:6P5 1

D >> - 03.09.2012

[Name] [Note] [Model info] [QTY]

Hexagon socket head panel bolt 5X16 PR:6P5 2

D >> - 24.06.2013

[Name] [Note] [QTY]

Hexagon collar nut M8 4

[Name] [QTY]

Sealing plate 2

[Name] [Note] [QTY]

Hexagon nut M8 2

[Name] [QTY]

handle 1

[Name]

Satin black/high chrome

D - 04.11.2013>>

[Name] [QTY]

handle 1

[Name]

Satin black/high chrome

D >> - 04.11.2013

[Name]

Securing element

[Name] [Note] [QTY]

Hexagon collar nut M6 3

[Name] [Note] [QTY]

Lid lock inner 1

oper.mechan.with micro switch

D >> - 27.05.2013

mating connector

3B0972722 Flat contact housing 4 pin 1

black

Possible single wire: 000 979 131 X

000 979 131 A X

matching contact housing: 3B0 972 732

[Name] [Note] [QTY]

Lid lock inner 1

without:

Micro switch

D - 27.05.2013>>

[Name] [QTY]

cover - lock 1

[Name]

Carbon black
