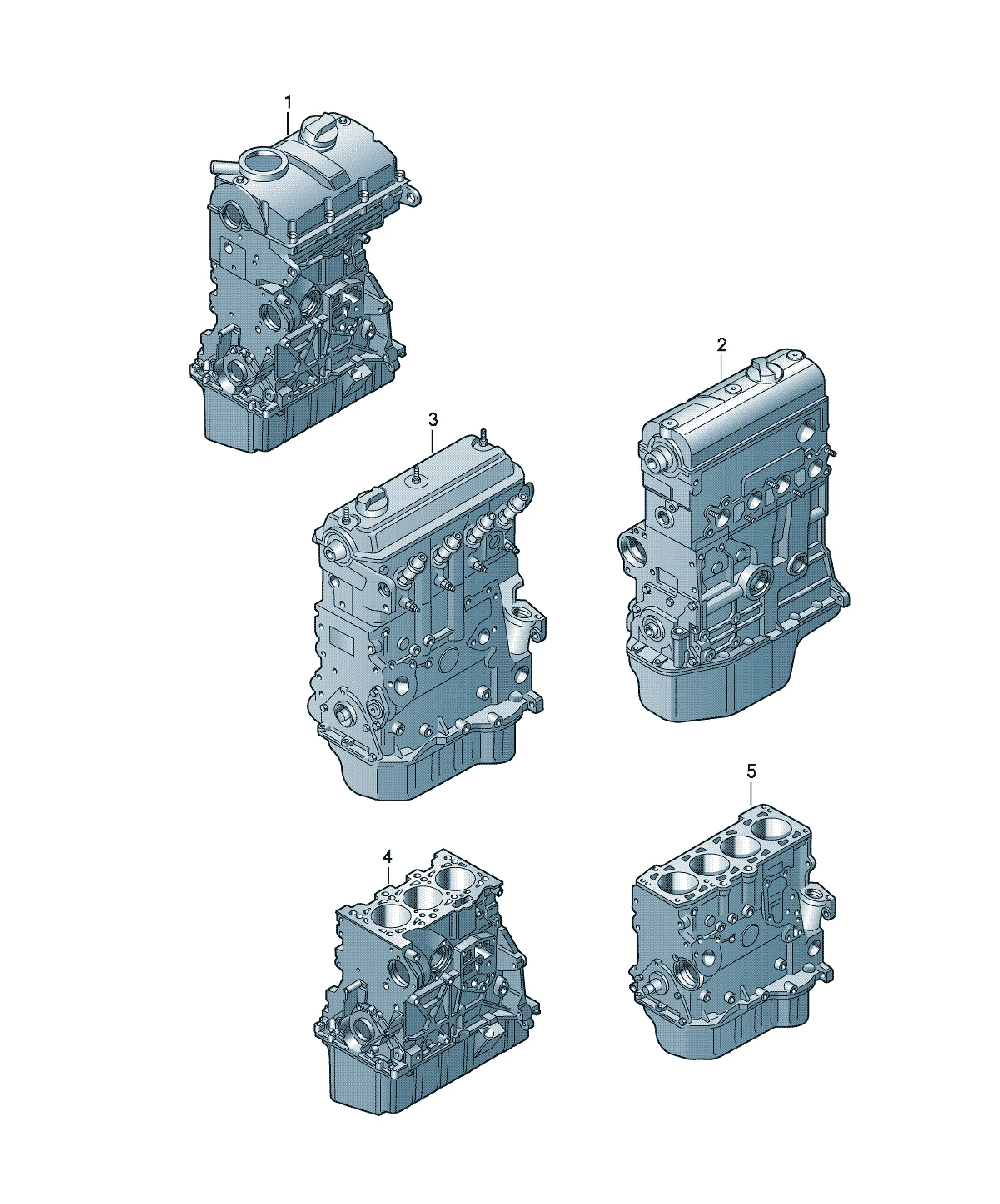

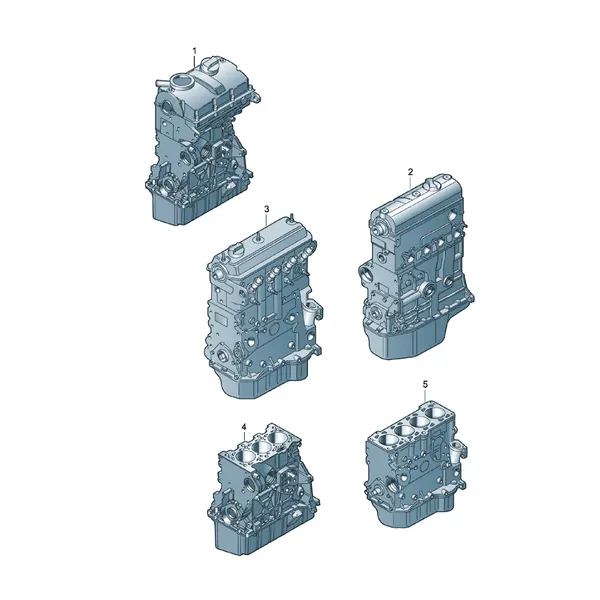

Двигатель в сборе

[Name] [Note] [Model info] [QTY]

Base engine 51KW CGPA,CGPB 1

For vehicles with extended service interval 1.2 Ltr.

Items supplied

Crankcase 1

balancer shaft 1

piston 3

conrod 3

Crankshaft 1

oil pump 1

oil sump 1

Cylinder head 1

cylinder head cover 1

timing chain 1

timing case 1

Coolant pump 1

[Name] [Note] [Model info] [QTY]

Base engine 51KW CGPA,CGPB 1

For vehicles with extended service interval 1.2 Ltr.

Items supplied

Crankcase 1

balancer shaft 1

piston 3

conrod 3

Crankshaft 1

oil pump 1

oil sump 1

Cylinder head 1

cylinder head cover 1

timing chain 1

timing case 1

Coolant pump 1

Old part

03E100033CX Base engine 1

Cylinder block cast no.:

03D 103 019 M/S

03E100033KX Base engine 1

Cylinder block cast no.:

03D 103 019 M/S

03E100033TX Base engine 1

Cylinder block cast no.:

03D 103 019 M/S

[Name] [Note] [Model info] [QTY]

Base engine 1.2 Ltr. CGPA,CGPB 1

For vehicles without extended service interval

[Name] [Note] [Model info] [QTY]

Base engine 1.2 Ltr. CGPA,CGPB 1

For vehicles without extended service interval

[Name] [Note] [Model info] [QTY]

Base engine 1.2 Ltr. manual gearbox 1

77KW

CBZB,CBZA

Accompanying details: 06L109311; 06B105313D

Items supplied

cylinder head cover 1

Cylinder head 1

Camshaft 2

Crankcase 1

Crankshaft 1

Cylinder head gasket 1

piston 4

conrod 4

timing case 1

Sealing flange 1

oil pump 1

oil sump 1

Injection valve 4

Oil pressure switch 1

impulse sender 1

Coolant pump 1

oil separator 1

timing chain 1

Temperature sensor 1

Oil cooler 1

oil filter 1

[Name] [Note] [Model info] [QTY]

Base engine 1.2 Ltr. manual gearbox 1

77KW

CBZB,CBZA

Accompanying details: 06L109311; 06B105313D

Items supplied

comprising: 1

Crankcase 1

Crankshaft 1

piston 4

conrod 4

Cylinder head 1

cylinder head cover 1

oil pump 1

timing case 1

timing chain 1

Sealing flange 1

Engine oil sump with oil level sensor 1

Coolant pump 1

oil filter 1

Oil cooler 1

Spark plug 4

[Name] [Note] [Model info] [QTY]

Base engine 1.2 Ltr. manual gearbox 1

77KW

CBZB,CBZA

Accompanying details: 06L109311; 06B105313D

Items supplied

comprising: 1

Crankcase 1

Crankshaft 1

piston 4

conrod 4

Cylinder head 1

cylinder head cover 1

oil pump 1

timing case 1

timing chain 1

Sealing flange 1

Coolant pump 1

oil filter 1

Oil cooler 1

Spark plug 4

Engine oil sump with oil level sensor 1

Old part

03F100031FX Base engine 1

Cylinder block cast no.:

03F 103 019 B/D/G/H/K/J/L

03F100091AX Base engine 1

Cylinder block cast no.:

03F 103 019 B/D/G/H/K/J/L

[Name] [Note] [Model info] [QTY]

Base engine 1.2 Ltr. automatic 1

77KW CBZB,CBZA

use if required: 06L 109 311

also use: 06B 105 313 D

Accompanying details: 06L109311; 06B105313D

Items supplied

cylinder head cover 1

Cylinder head 1

Camshaft 2

Crankcase 1

Crankshaft 1

Cylinder head gasket 1

piston 4

conrod 4

timing case 1

Sealing flange 1

oil pump 1

oil sump 1

Injection valve 4

Oil pressure switch 1

impulse sender 1

Coolant pump 1

oil separator 1

timing chain 1

Temperature sensor 1

Oil cooler 1

oil filter 1

[Name] [Note] [Model info] [QTY]

Base engine 1.2 Ltr. automatic 1

77KW CBZB,CBZA

use if required: 06L 109 311

also use: 06B 105 313 D

Accompanying details: 06L109311; 06B105313D

Items supplied

comprising: 1

Crankcase 1

Crankshaft 1

piston 4

conrod 4

Cylinder head 1

cylinder head cover 1

oil pump 1

timing case 1

timing chain 1

Sealing flange 1

Engine oil sump with oil level sensor 1

Coolant pump 1

oil filter 1

Oil cooler 1

Spark plug 4

[Name] [Note] [Model info] [QTY]

Base engine 1.2 Ltr. automatic 1

77KW CBZB,CBZA

use if required: 06L 109 311

also use: 06B 105 313 D

Accompanying details: 06L109311; 06B105313D

Items supplied

comprising: 1

Crankcase 1

Crankshaft 1

piston 4

conrod 4

Cylinder head 1

cylinder head cover 1

oil pump 1

timing case 1

timing chain 1

Sealing flange 1

Coolant pump 1

oil filter 1

Oil cooler 1

Spark plug 4

Engine oil sump with oil level sensor 1

Old part

03F100031FX Base engine 1

Cylinder block cast no.:

03F 103 019 B/D/G/H/K/J/L

03F100091AX Base engine 1

Cylinder block cast no.:

03F 103 019 B/D/G/H/K/J/L

[Name] [Note] [Model info] [QTY]

Base engine 1.2 Ltr. automatic 1

77KW CBZB

use if required: 06L 109 311 "CN."

also use: 06B 105 313 D

Accompanying details: 06L109311; 06B105313D

[Name] [Note] [Model info] [QTY]

Base engine 1.2 Ltr. automatic 1

77KW CBZB

use if required: 06L 109 311 "CN."

also use: 06B 105 313 D

Accompanying details: 06L109311; 06B105313D

Items supplied

comprising: 1

Crankcase 1

Crankshaft 1

piston 4

conrod 4

Cylinder head 1

cylinder head cover 1

oil pump 1

timing case 1

timing chain 1

Sealing flange 1

Engine oil sump with oil level sensor 1

Coolant pump 1

oil filter 1

Oil cooler 1

Spark plug 4

[Name] [Note] [Model info] [QTY]

Base engine 51KW CJLB 1

For vehicles without oil level sensor 1.2 Ltr.

[Name] [Note] [Model info] [QTY]

Base engine 51KW CJLB 1

For vehicles without oil level sensor 1.2 Ltr.
