Форсунка топливная

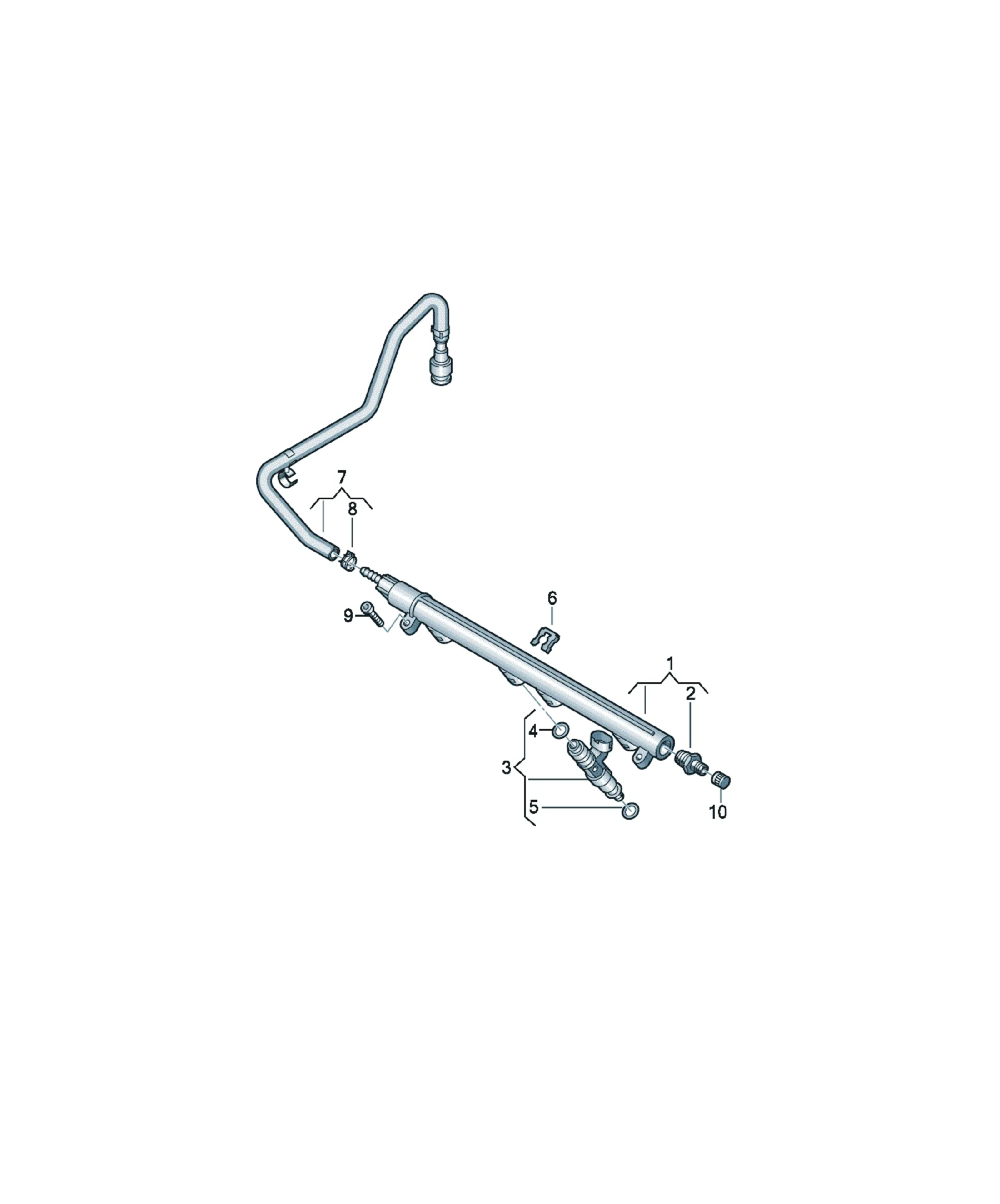

Топливная рампа

Схемы узла

6 схем

12 деталей

hose in coils of 5m 'order unit 5'
N0202913 Предложения

[Name] [Note] [QTY]
hose in coils of 5m 'order unit 5' 3,5X3 *
hose in coils of 5m 'order unit 5'
N90170001 Предложения

[Name] [Note] [QTY]
hose in coils of 5m 'order unit 5' 7,5X3,5 *
06A133317AN Предложения

[Name] [QTY]
Fuel rail 1
06G133335 Предложения

[Name] [Note] [QTY]
Cap closure 8-12X8X0,4 X
[Name]
Not for this model
06A906031CP Предложения

[Name] [QTY]
Injection valve 4
WHT005422B Предложения

[Name] [Note] [QTY]
O-ring 7,52X3,51 8
upper
07K906149 Предложения

[Name] [Note] [QTY]
O-ring 8,54X3,1 6
lower
037133047A Предложения

[Name] [QTY]
Retaining clip 4
6Q0133986E Предложения

[Name] [Note] [QTY]
1 set fuel pipes feed/return 1
N90686701 Предложения

[Name] [Note] [QTY]
Spring band clamp 14X12 X
N10248804 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M6X30 2
