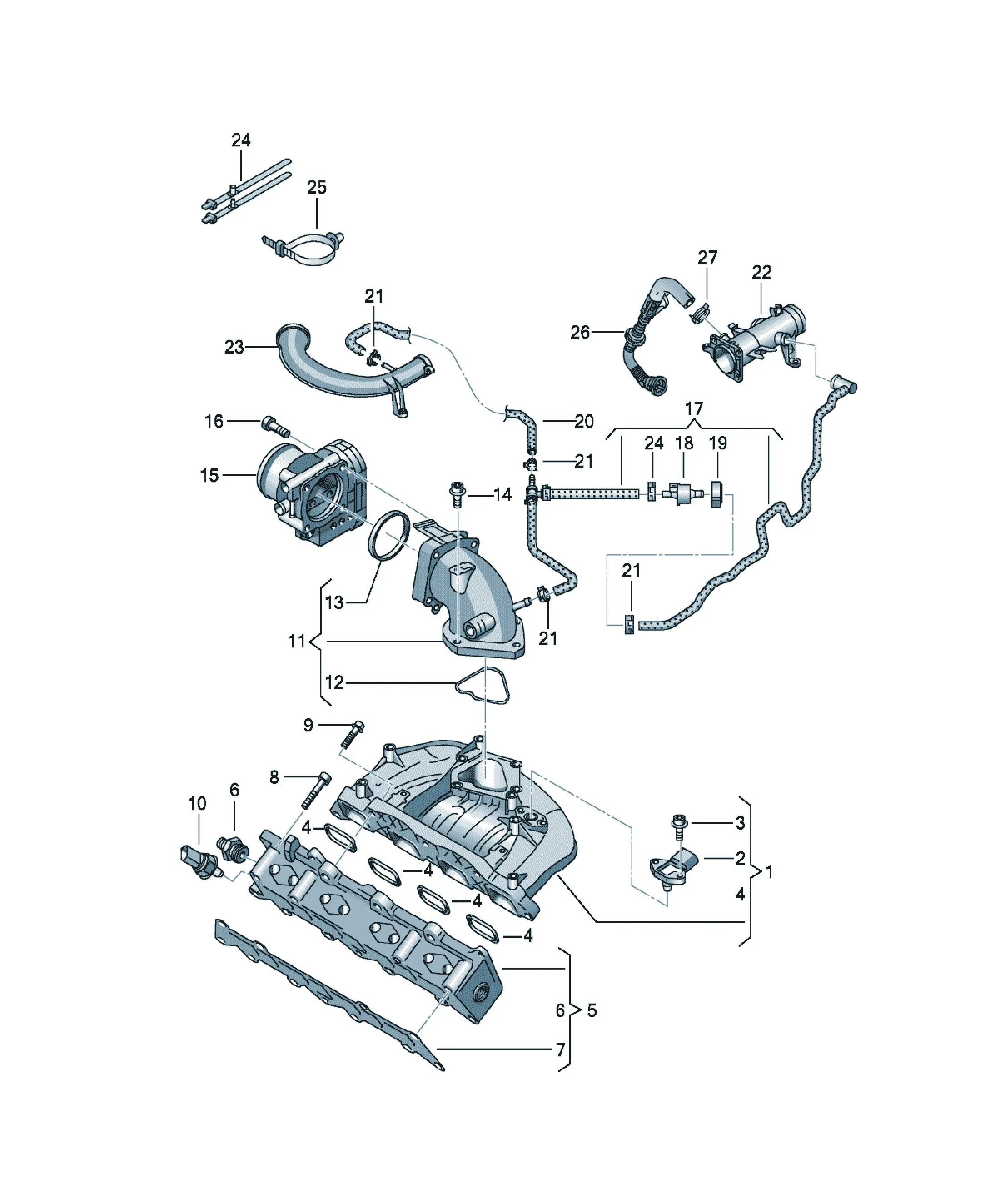

Система впуска

[Name] [Note] [Model info] [QTY]

Retainer for fuel line 2 point automatic 1

[Name] [QTY]

intake manifold - upper part 1

[Name] [QTY]

Pressure sensor 1

mating connector

4D0971993 Flat connector housing with contact locking mechanism 3 pin 1

black

[Name] [QTY]

Intake manifold 1

[Name] [QTY]

Seal 4

[Name] [Note] [QTY]

Seal 65,3X2,15X5,5 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt 6X25 4

[Name] [QTY]

Throttle valve control element 1

mating connector

1J0973713 Flat contact housing 6 pin 1

black

[Name] [Note] [QTY]

Hexagon socket flat head bolt 6X45 4

[Name] [QTY]

Connecting hose 1

[Name] [QTY]

Valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Thrust ring 1

[Name] [QTY]

Pressure sensor 1

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

8K0973704 Flat contact housing with contact locking mechanism 4 pin 1

black

[Name] [QTY]

Connecting hose 1

[Name] [Note] [QTY]

Spring band clamp 14X12 1

[Name] [Note]

intake manifold

see illustration, item: 129-015,8

[Name] [Note]

pressure pipe

see illustration, item: 129-015,21

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 X

[Name] [Model info] [QTY]

suction jet pump automatic 1

[Name] [Note] [Model info] [QTY]

Spring band clamp 19X12 automatic X

[Name] [Note] [QTY]

panel screw 5X22 2

[Name] [QTY]

Seal 4

[Name] [QTY]

intake manifold - lower part 1

[Name] [Note] [QTY]

sealing plug M20X1,5 1

[Name] [QTY]

Seal 4

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X75 3

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X58 2

[Name] [Note] [QTY]

Oval head locating bolt with multi-point socket head M8X35 6
