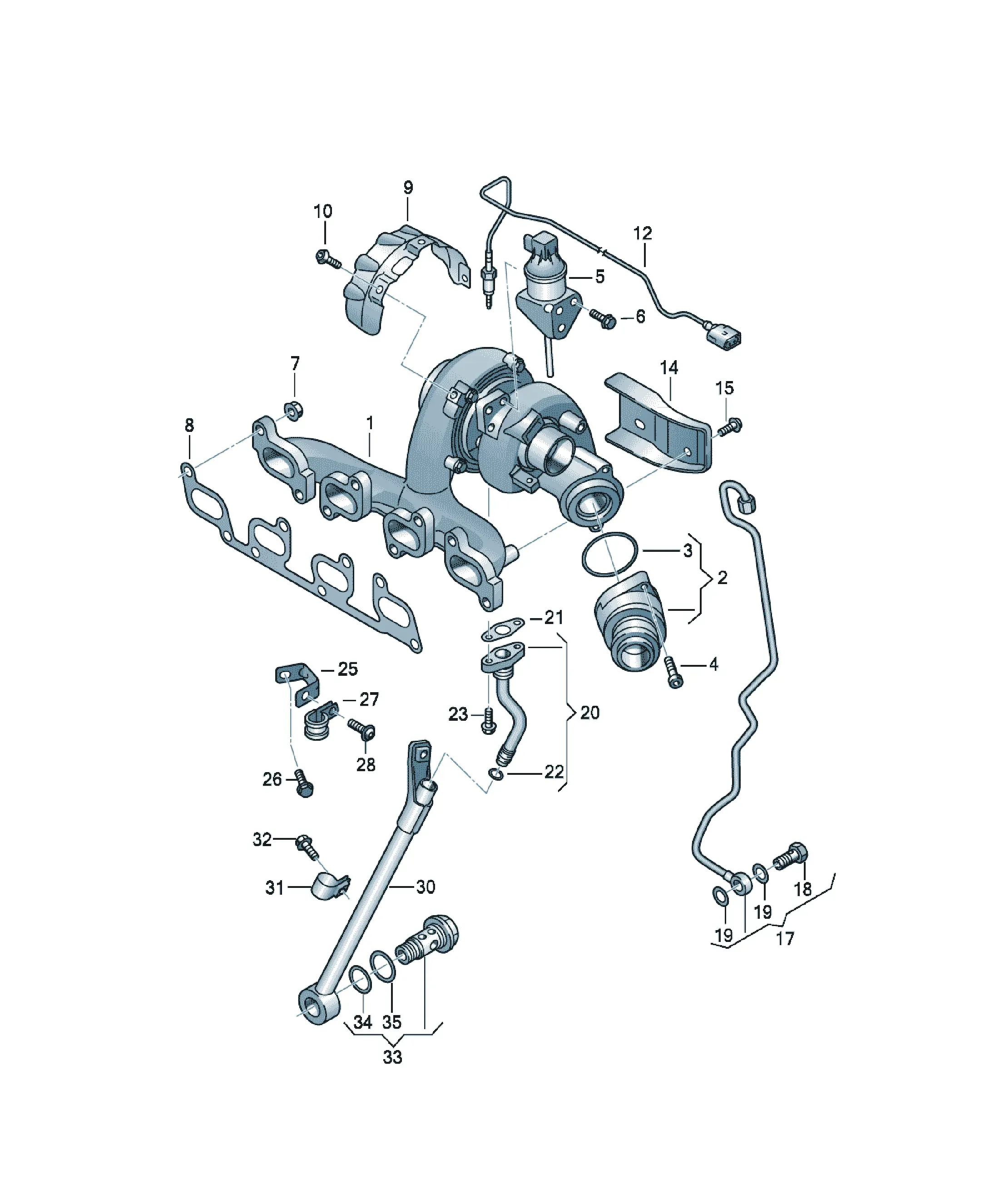

Выпускной коллектор с турбокомпрессором

[Name] [Note] [QTY]

Threaded pin M8X22 2

additionally to be used items: 7

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger BORGWARNER 1

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger BORGWARNER 1

Exchange program parts: 03L253056RX

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger BORGWARNER 1

Old part

03L253016A Exhaust manifold with turbo- charger 1

Labelled with part number

03L253016H Exhaust manifold with turbo- charger 1

Labelled with part number

03L253056D Exhaust manifold with turbo- charger 1

Labelled with part number

03L253056R Exhaust manifold with turbo- charger 1

Labelled with part number

[Name] [QTY]

Exhaust manifold with turbo- charger 1

For vehicles with variable turbine geometry (VTG)

BV39

Old part

03L253016A Exhaust manifold with turbo- charger 1

Labelled with part number

03L253016H Exhaust manifold with turbo- charger 1

Labelled with part number

03L253056D Exhaust manifold with turbo- charger 1

Labelled with part number

03L253056R Exhaust manifold with turbo- charger 1

Labelled with part number

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X8 3

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X8 2

[Name] [Note] [QTY]

Exhaust gas temperature sender 8K0 973 702 1

(Before turbocharger)

mating connector

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note]

Exhaust gas temperature sender

see illustration, item: 906-015,12

[Name] [QTY]

Heat shield 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X8 2

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X8 3

[Name] [QTY]

oil pipe 1

[Name] [QTY]

supply pipe 1

[Name] [Note] [QTY]

Banjo bolt M12 1

[Name] [Note] [QTY]

seal ring 12X17 2

[Name] [QTY]

Damper 1

[Name] [QTY]

Oil return line 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

O-ring 13,5X1,93 2

[Name] [Note] [QTY]

Hex collared bolt M6X16 2

[Name] [QTY]

Retaining bar 1

[Name]

Not for this model

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X35 1

[Name] [Note] [QTY]

Clamp 1-8X15 X

[Name]

Not for this model

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X12 1

[Name]

Not for this model

[Name] [Note] [QTY]

O-ring 56X3 1

[Name] [QTY]

Support 1

[Name] [QTY]

clamp 1

[Name] [Note] [QTY]

clamp 20X20X25 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X14 1

[Name] [Note] [QTY]

Banjo bolt 15X6X44 1

[Name] [Note] [QTY]

Banjo bolt 15X6X44 1

only for: 03L 145 535 D

[Name] [Note] [QTY]

seal ring 17X2 1

[Name] [Note]

O-ring

contained in: WHT 005 635

[Name] [Note] [QTY]

O-ring 21X1,5 1

[Name] [Note] [QTY]

Hexagon socket head bolt M6X45 2

[Name] [QTY]

repair set 1

pressure unit

repair set

pressure unit 1

Protective cap 1

Hexagon bolt M8X16 3

Locking fluid 1

End cap 1

arm 1

Bag (plastic) 1

[Name] [QTY]

repair set 1

repair set

pressure unit 5825 110 6026 DN25 1

Hexagon bolt 500 35 19 0116 3

M8X16

End cap 5004 115 1800 1

Protective cap 5004 113 2010 1

Locking fluid 5006 519 0029 1

Securing clip 5810 119 5908 1

Bag (plastic) 5008 603 0114 1

[Name]

Vacuum unit with add-on parts

Not for this model

[Name] [Note]

press fit bolt

Included in position: 5

[Name]

Hexagon bolt

Not for this model

[Name] [Note] [QTY]

hexagon nut, self-locking M8 8

[Name] [QTY]

Seal 1

[Name] [QTY]

Heat shield 1
