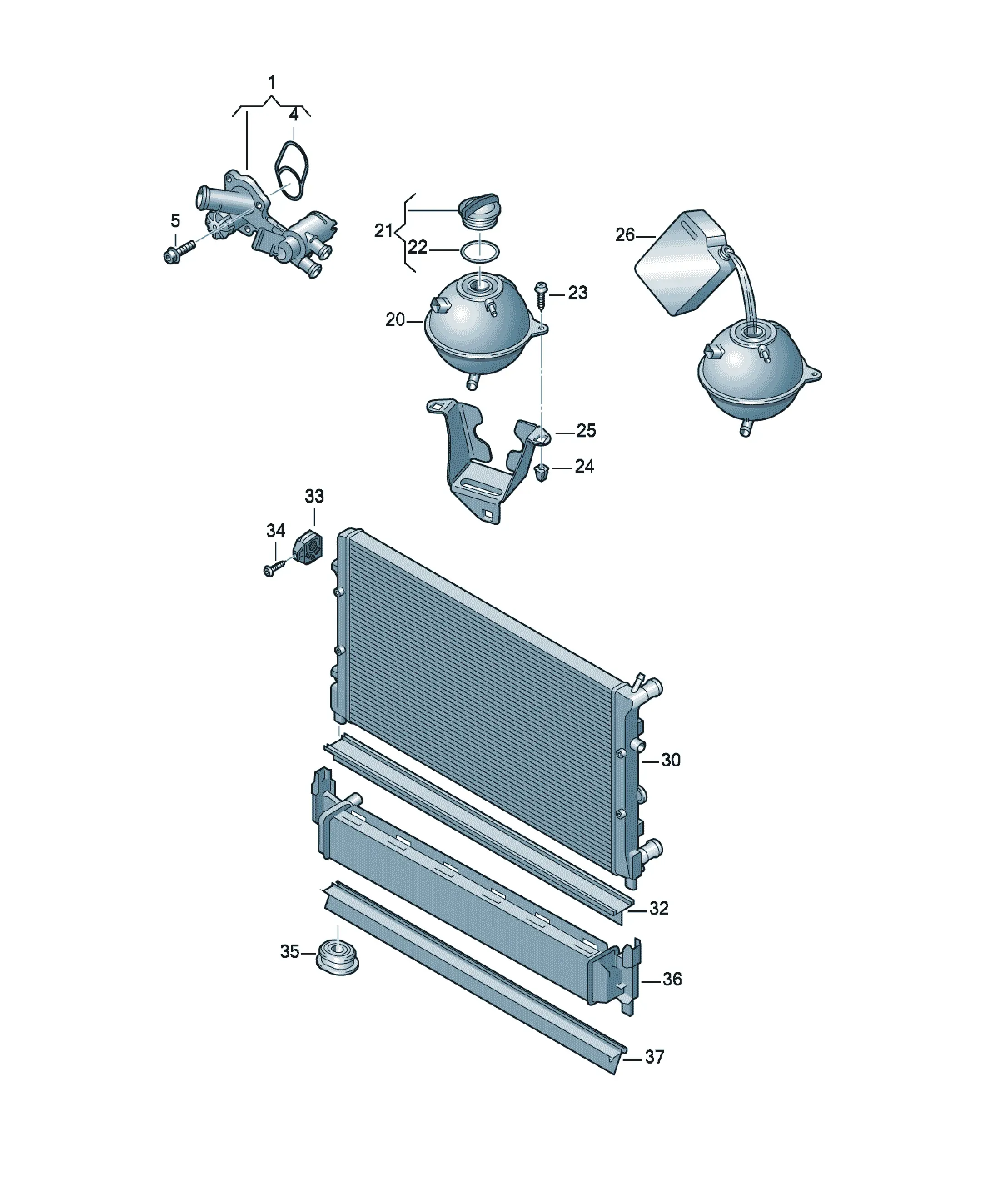

Система охлаждения

[Name] [QTY]

Coolant regulator housing with thermostat 1

[Name] [QTY]

Reservoir 1

mating connector

1J0973202 Flat contact housing with contact locking mechanism 2 pin 1

[Name] [Note] [QTY]

End cap blue 1

[Name] [Note] [QTY]

O-ring 28,5X3,8 1

[Name] [Note] [QTY]

Hexagon socket head panel bolt 5X16 2

[Name] [QTY]

insert nut 2

[Name] [QTY]

Retainer for reservoir 1

[Name] [Note] [QTY]

Coolant concentrate 60ltr. X

[Name] [Note] [QTY]

Coolant concentrate 210 l X

[Name] [Note] [QTY]

Coolant additive, plus-plus 1.5 Ltr. X

[Name] [Note] [QTY]

Cooler for coolant 649X340X26 1

[Name] [Note] [QTY]

Cooler for coolant 648X340X24 1

[Name] [Note] [QTY]

Seal lower 1

[Name] [QTY]

Bracket 2

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X18,5 2

[Name] [Note] [QTY]

bush lower 2

[Name] [QTY]

Additional cooler for coolant 1

for charge air cooler

[Name] [Note] [QTY]

Seal lower 1

for additional coolant rad.

[Name] [Note] [QTY]

Seal lower 1

for additional coolant rad.

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X25 4
