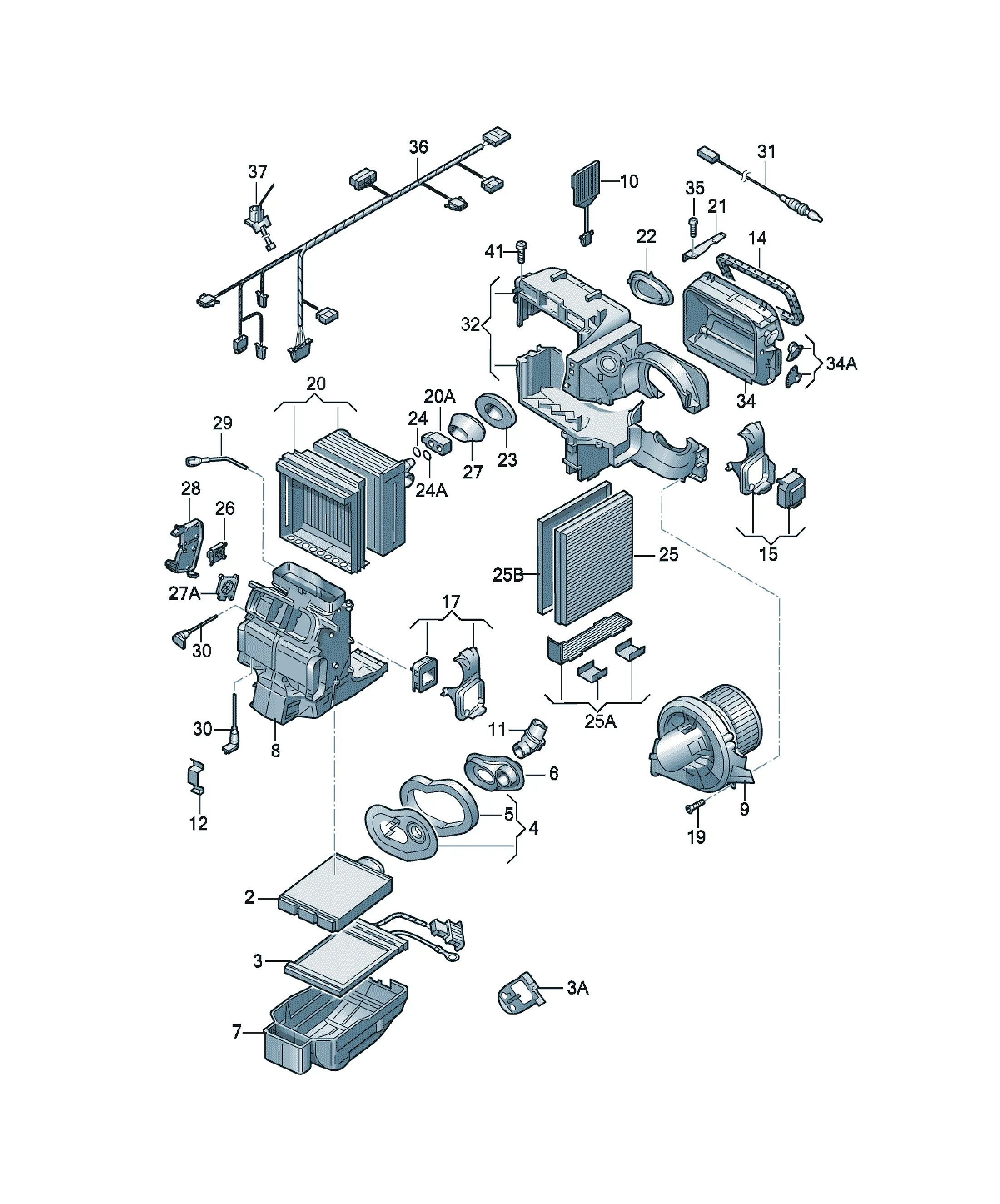

Корпус испарителя

[Name] [Note] [QTY]

Socket head bolt M5X40X16 2

[Name] [QTY]

Actuator 1

[Name] [Note] [QTY]

Fan control lhd 1

J126

mating connector

6X0972623 Flat contact housing 6 pin 1

black

[Name] [Note] [QTY]

Fan control rhd 1

J126

mating connector

6X0972623 Flat contact housing 6 pin 1

black

[Name] [Note] [QTY]

Water drain valve lhd 1

[Name] [Note] [QTY]

Water drain valve rhd 1

[Name] [QTY]

Clip X

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

positioning motor for recirculated air operation lhd 1

V113

Items supplied

6Q1907511E positioning motor for recirculated air operation 1

optional:

6R1907511 positioning motor for recirculated air operation 1

6Q1819379 Bracket 1

mating connector

6Q0972706 Flat contact housing with contact locking mechanism 6 pin 1

blue

[Name] [Note] [QTY]

positioning motor for recirculated air operation rhd 1

V113

Items supplied

6Q2907511F positioning motor for recirculated air operation rhd air condit. 1

optional:

6R2907511 positioning motor for recirculated air operation 1

6Q2819379B Bracket 1

[Name] [QTY]

central flap positioning motor 1

Items supplied

6R0907511B central flap positioning motor 1

optional: 6Q0 907 511 E

optional: 6R0 907 511 E

6Q0820891 Bracket 1

central flap positioning motor

mating connector

6Q0972706 Flat contact housing with contact locking mechanism 6 pin 1

blue

[Name] [Note] [QTY]

Hexagon socket flat head bolt 4X16-Q 3

[Name] [QTY]

heat exchanger 1

[Name] [QTY]

evaporator with expansion valve 1

[Name] [Note] [QTY]

Expansion valve R134A 1

[Name] [Note] [QTY]

bracket for fan lhd 1

[Name] [Note] [QTY]

bracket for fan rhd 1

[Name] [QTY]

Grommet 1

[Name] [QTY]

Seal 1

Expansion valve

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

O-ring 17,2X1,82 X

Expansion valve

[Name] [Note] [QTY]

seal ring 10,80X1,78 X

Expansion valve

[Name] [QTY]

Filter insert with odour and harmful substance filtering 1

[Name] [QTY]

Filter insert with odour and harmful substance filter 'ECO' 1

Economy

[Name] [QTY]

Cover 1

Dust and pollen filter

[Name] [QTY]

Cover 1

Dust and pollen filter

Items supplied

6R1819422 Cover 1

Dust and pollen filter

6Q0815391 slide valve 2

[Name]

Frame

Not for this model

[Name] [Note] [QTY]

Servo motor V107 1

Defroster flap

D - 20.11.2012>>

[Name] [Note] [QTY]

Servo motor V107 1

Defroster flap

D >> - 19.11.2012

[Name] [QTY]

Seal 1

Expansion valve

[Name] [Note] [QTY]

control motor for temperature regulating flap V68 1

D - 20.11.2012>>

mating connector

6Q0972706 Flat contact housing with contact locking mechanism 6 pin 1

blue

[Name] [Note] [QTY]

control motor for temperature regulating flap V68 1

D >> - 19.11.2012

[Name] [QTY]

Bracket 1

temperature regulating flap

Defroster flap

[Name] [Note] [QTY]

Temperature sensor G263 1

evaporator

mating connector

1J0972923 Flat contact housing with contact locking mechanism 2 pin 1

[Name] [Note] [Model info] [QTY]

Heater element for electr. auxiliary air heater PTC PR:7E6,7E7 1

[Name] [Note] [QTY]

Temperature sensor G192,G191 2

passenger comp. ventilation

Footwell vent

mating connector

1J0971972 flat connector housing 2 pin 1

black

[Name] [Note] [QTY]

Temperature sensor G89 1

Fresh air duct

External temperature sensor

[Name] [Note] [QTY]

housing rhd 1

[Name] [Note] [QTY]

housing lhd 1

[Name] [Note] [QTY]

Intake duct rhd 1

repair set

6Q0819327 Flap for intake duct 2

6Q2819303 Intake duct lhd 1

6Q2819754 toothed quadrant lhd 1

for recirculated air operation possibility

(HEBEL)

6Q2819753 toothed quadrant rhd 1

fresh air flap

(HEBEL)

[Name] [Note] [QTY]

Intake duct lhd 1

Items supplied

6Q1819303 Intake duct lhd 1

6Q0819327 Flap for intake duct 2

[Name] [Note] [QTY]

fillister head bolt (combi.) M5X16 2

[Name] [Note] [QTY]

Cable tie with holder for plastic pin: 5X300 X

[Name] [Model info] [QTY]

Retaining bracket PR:7E6 1

[Name] [Note] [QTY]

Bracket lhd 1

[Name] [Note] [QTY]

Bracket rhd 1

[Name] [Note] [QTY]

Bracket lhd 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Grommet rhd 1

[Name] [Note] [QTY]

Grommet lhd 1

[Name] [Note] [QTY]

Air distribution housing lower 1

for models without auxiliary heater

[Name] [Note] [QTY]

Air distribution housing lhd 1

[Name] [Note] [QTY]

Air distribution housing rhd 1

[Name] [Note] [QTY]

Fan lhd 1

mating connector

1J0972752 Flat contact housing 2 pin X

[Name] [Note] [QTY]

Fan rhd 1

mating connector

1J0972752 Flat contact housing 2 pin X
