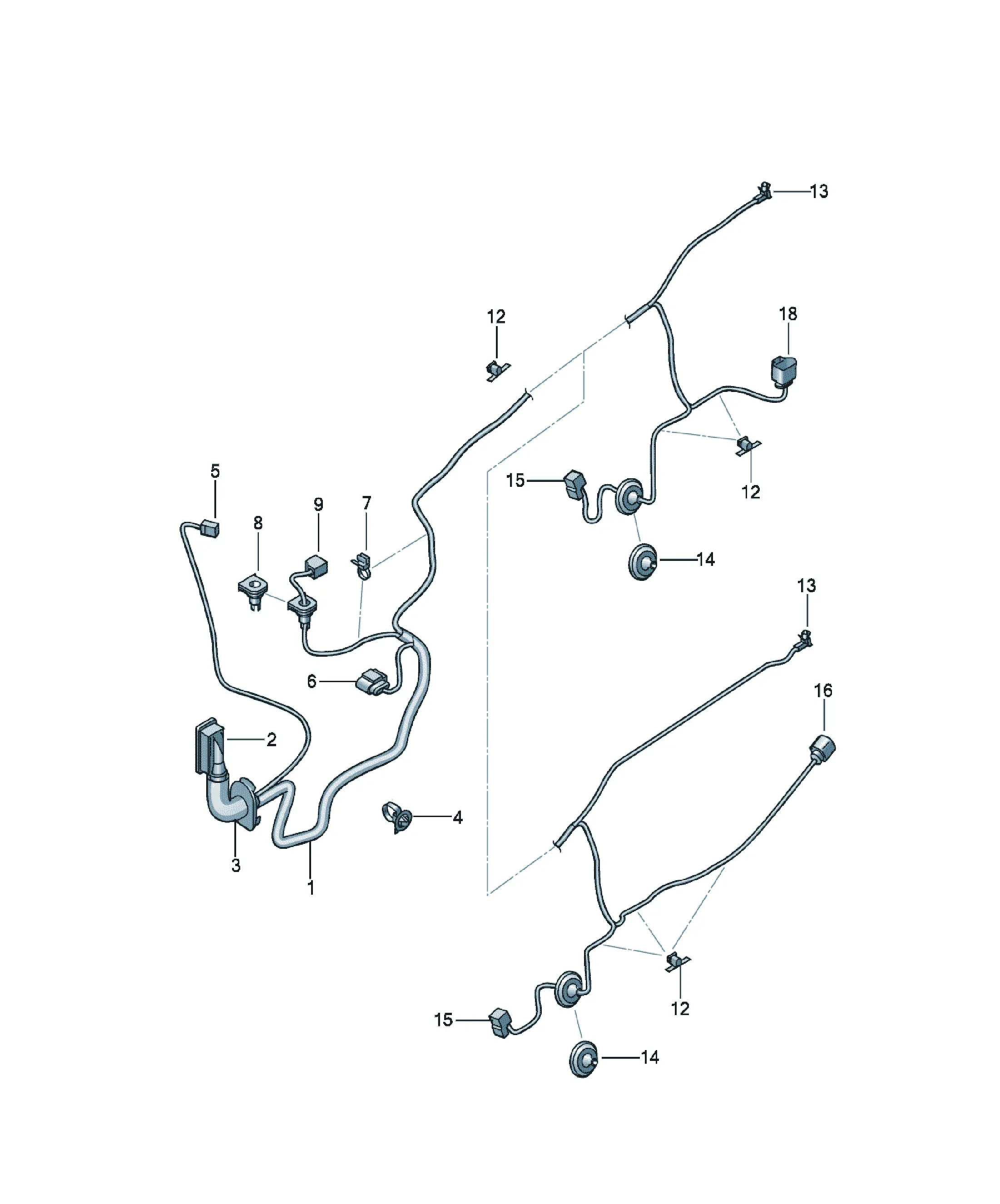

Жгут проводов двери

[Name] [Note] [QTY]

Wiring set for door lhd 1

D >> - MJ 2013

[Name] [Note] [QTY]

Wiring set for door lhd 1

D - 03.11.2014>>

[Name] [Note] [QTY]

Wiring set for door lhd 1

For electric adjustable exterior mirrors

D >> - MJ 2013

[Name] [Note] [QTY]

Wiring set for door lhd 1

For electric adjustable exterior mirrors

D - 03.11.2014>>

[Name] [Note] [QTY]

Wiring set for door lhd 1

For vehicles with electric fold-in exterior mirrors

D >> - MJ 2013

[Name] [Note] [QTY]

Wiring set for door lhd 1

For vehicles with electric fold-in exterior mirrors

D - 03.11.2014>>

[Name] [Note] [QTY]

Wiring set for door rhd 1

D >> - MJ 2013

[Name] [Note] [QTY]

Wiring set for door rhd 1

D - 03.11.2014>>

[Name] [Note] [QTY]

Wiring set for door rhd 1

For electric adjustable exterior mirrors

D >> - MJ 2013

[Name] [Note] [QTY]

Wiring set for door rhd 1

For electric adjustable exterior mirrors

D - 03.11.2014>>

[Name] [Note] [QTY]

Wiring set for door rhd 1

For vehicles with electric fold-in exterior mirrors

D >> - MJ 2013

[Name] [Note] [QTY]

Wiring set for door rhd 1

For vehicles with electric fold-in exterior mirrors

D - 03.11.2014>>

[Name] [Note] [QTY]

Wiring set for door lhd 1

D >> - MJ 2013

[Name] [Note] [QTY]

Wiring set for door lhd 1

D - 03.11.2014>>

[Name] [Note] [QTY]

Wiring set for door lhd 1

For electric adjustable exterior mirrors

D >> - 02.11.2014

[Name] [Note] [QTY]

Wiring set for door lhd 1

For electric adjustable exterior mirrors

D - 03.11.2014>>

[Name] [Note] [QTY]

Wiring set for door lhd 1

For vehicles with electric fold-in exterior mirrors

D >> - 02.11.2014

[Name] [Note] [QTY]

Wiring set for door lhd 1

For vehicles with electric fold-in exterior mirrors

D - 03.11.2014>>

[Name] [Note] [QTY]

Wiring set for door rhd 1

D >> - 02.11.2014

[Name] [Note] [QTY]

Wiring set for door rhd 1

D - 03.11.2014>>

[Name] [Note] [QTY]

Wiring set for door rhd 1

For electric adjustable exterior mirrors

D >> - MJ 2013

[Name] [Note] [QTY]

Wiring set for door rhd 1

For electric adjustable exterior mirrors

D - 03.11.2014>>

[Name] [Note] [QTY]

Wiring set for door rhd 1

For vehicles with electric fold-in exterior mirrors

D >> - MJ 2013

[Name] [Note] [QTY]

Wiring set for door rhd 1

For vehicles with electric fold-in exterior mirrors

D - 03.11.2014>>

[Name] [QTY]

Cable holder X

[Name] [QTY]

warning lamp 1

for vehicles with anti-theft alarm system and imobiliser

Possible single wire:

000979981A Electrical cable in bag 10m yellow 0,5QMM 1

-40C/+125C

[Name] [Note] [QTY]

Grommet 38,8/4 1

[Name] [Note] [QTY]

Flat contact housing 4 pin 1

for models with electrically operated windows brown

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

black

Door lock 2 doors

mating connector

3B0973813 Flat connector housing with contact locking mechanism 6 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

Door lock 4-door

mating connector

3B0973813 Flat connector housing with contact locking mechanism 6 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 27 pin 1

cross reinforcement for pillar a black

mating connector

8K0972701 Flat contact housing with contact locking mechanism 27 pin 1

black

Possible single wire:

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

[Name] [Note] [QTY]

bellows with retaining frame left a. right 2

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 X

For hole/material thickness: 6,5 / 0,3-3

[Name] [Note] [QTY]

Flat contact housing 8 pin 1

Exterior mirror black

mating connector

8K0971834 Flat contact housing 8 pin X

black

Possible single wire:

000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

[Name] [Note] [QTY]

Flat contact housing 4 pin 1

Loudspeaker black

mating connector

1J0973824 Flat contact housing 4 pin 1

black

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

[Name] [Note] [QTY]

cable tie with terminal socket 4,6X200 X

for bridge strength: 1-3MM

[Name] [QTY]

Grommet 1

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 16 pin 1

Door control unit black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8
