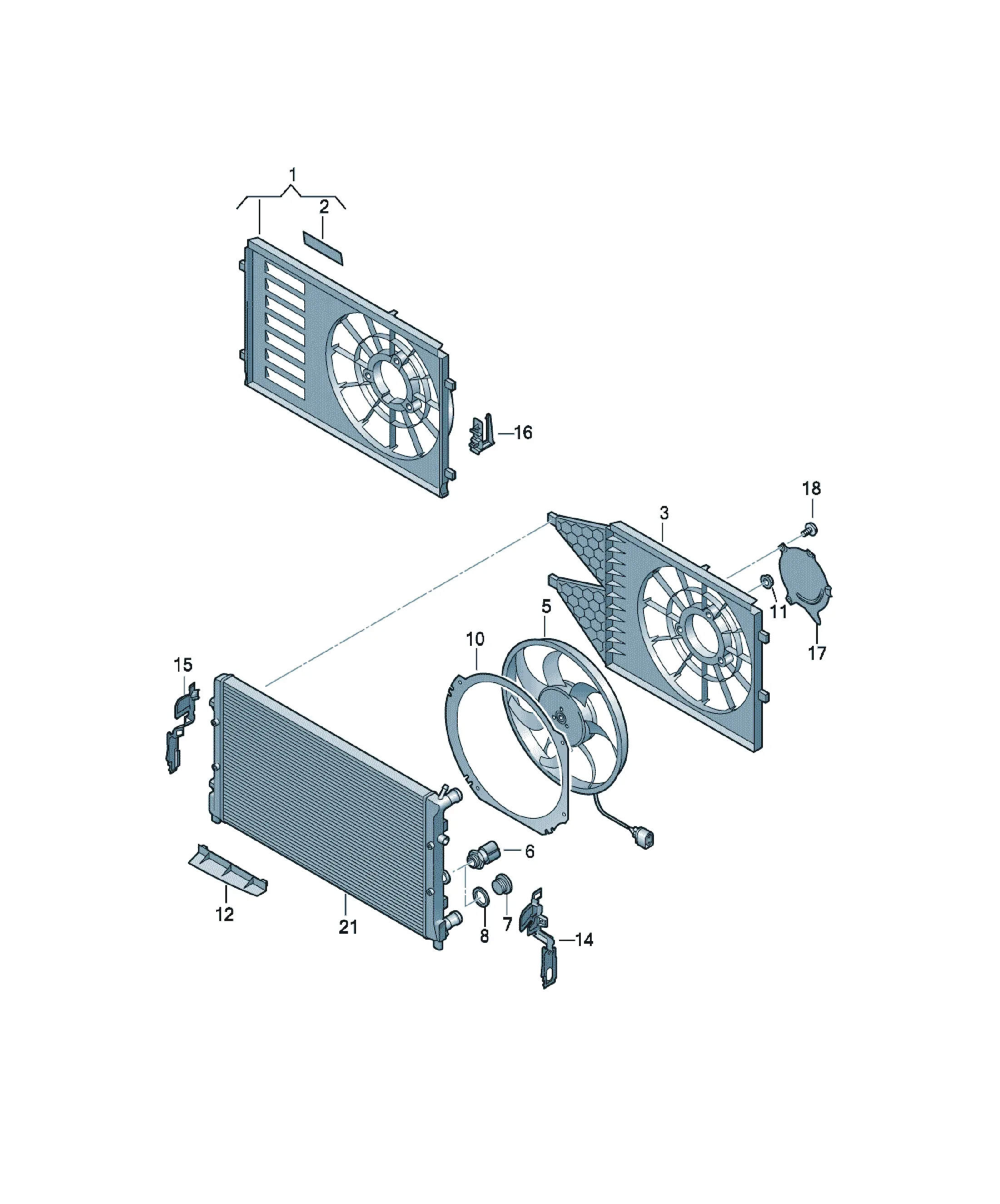

Диффузор вентилятора

[Name] [QTY]

Corrugated tube clip X

[Name] [QTY]

Fan ring 1

for vehicle use in warm climates

[Name] [Model info] [QTY]

Fan ring PR:8Z6,8Z9 1

for models with air condition- ing system (used in warm climates)

[Name] [QTY]

Fan ring 1

Not for this model

[Name] [QTY]

Air duct ring 1

[Name] [QTY]

Air duct ring 1

Not for this model

[Name] [QTY]

Air duct ring 1

[Name] [Note] [QTY]

hexagon nut, self-locking M6 3

[Name] [QTY]

bracket for connector housing 1

[Name] [Note] [QTY]

hexagon nut, self-locking M6 1

[Name] [Note] [QTY]

hexagon nut, self-locking M6 X

[Name]

No replacement part

[Name] [QTY]

Air guide 1

No replacement part

[Name] [Note] [QTY]

air duct cardboard left 1

[Name] [Note] [QTY]

air duct cardboard left 1

[Name] [Note] [QTY]

Air guide 1

see illustration: 121-095

[Name] [Note] [QTY]

air duct cardboard right 1

[Name] [Note] [QTY]

air duct cardboard right 1

[Name] [Note] [QTY]

Air guide 1

see illustration: 121-095

[Name] [QTY]

bracket for connector housing 1

Radiator fan

[Name] [QTY]

Heat shield plate 1

Not for this model

[Name] [QTY]

Hexagon socket head panel bolt 4

Not for this model

[Name] [QTY]

air control flap 7

[Name] [QTY]

air control flap 4

for vehicle use in warm climates

[Name] [QTY]

air control flap 4

Not for this model

[Name] [Model info] [QTY]

air control flap PR:8Z6,8Z9 7

for models with air condition- ing system (used in warm climates)

[Name] [Note]

Cooler for coolant

see illustration, item: 121-083,30

[Name] [Note]

Cooler for coolant

see illustration, item: 121-081,30

[Name] [Note]

Cooler for coolant

see illustration, item: 121-085,30

[Name] [Note]

Cooler for coolant

see illustration, item: 121-075,17

[Name] [Model info] [QTY]

Fan ring PR:8Z4 1

for vehicle use in cold and moderate climates

[Name] [Model info] [QTY]

Fan ring PR:8Z5,8Z7 1

for vehicle use in cold and moderate climates

[Name] [QTY]

Fan ring 1

[Name] [Model info] [QTY]

Fan ring PR:7L3 1

for vehicle use in cold and moderate climates

[Name] [QTY]

Fan ring 1

for vehicle use in cold and moderate climates

[Name] [Model info] [QTY]

Fan ring PR:7L6 1

for vehicle use in cold and moderate climates

[Name] [Note]

Radiator fan

see illustration, item: 959-050,1

[Name] [Note]

Radiator fan

see illustration: 959-050

[Name] [Note] [QTY]

dual thermo-switch 95-84C/102-91C 1

3 pin

mating connector

1J0973203 Flat contact housing with contact locking mechanism 3 pin 1

[Name] [Note] [Model info] [QTY]

dual thermo-switch 95-84C/102-91C PR:7L3 1

3 pin

mating connector

1J0973203 Flat contact housing with contact locking mechanism 3 pin 1

[Name] [Note] [QTY]

dual thermo-switch 95-84C/102-91C 1

mating connector

1J0973203 Flat contact housing with contact locking mechanism 3 pin 1

[Name] [Note] [Model info] [QTY]

sealing plug PR:7L6 1

also use: N 905 445 01

O-ring

Accompanying details: N 90544501

[Name] [QTY]

sealing plug 1

Not for this model

[Name] [Note] [QTY]

seal ring 27X3 1

[Name] [QTY]

seal ring 1

Not for this model
