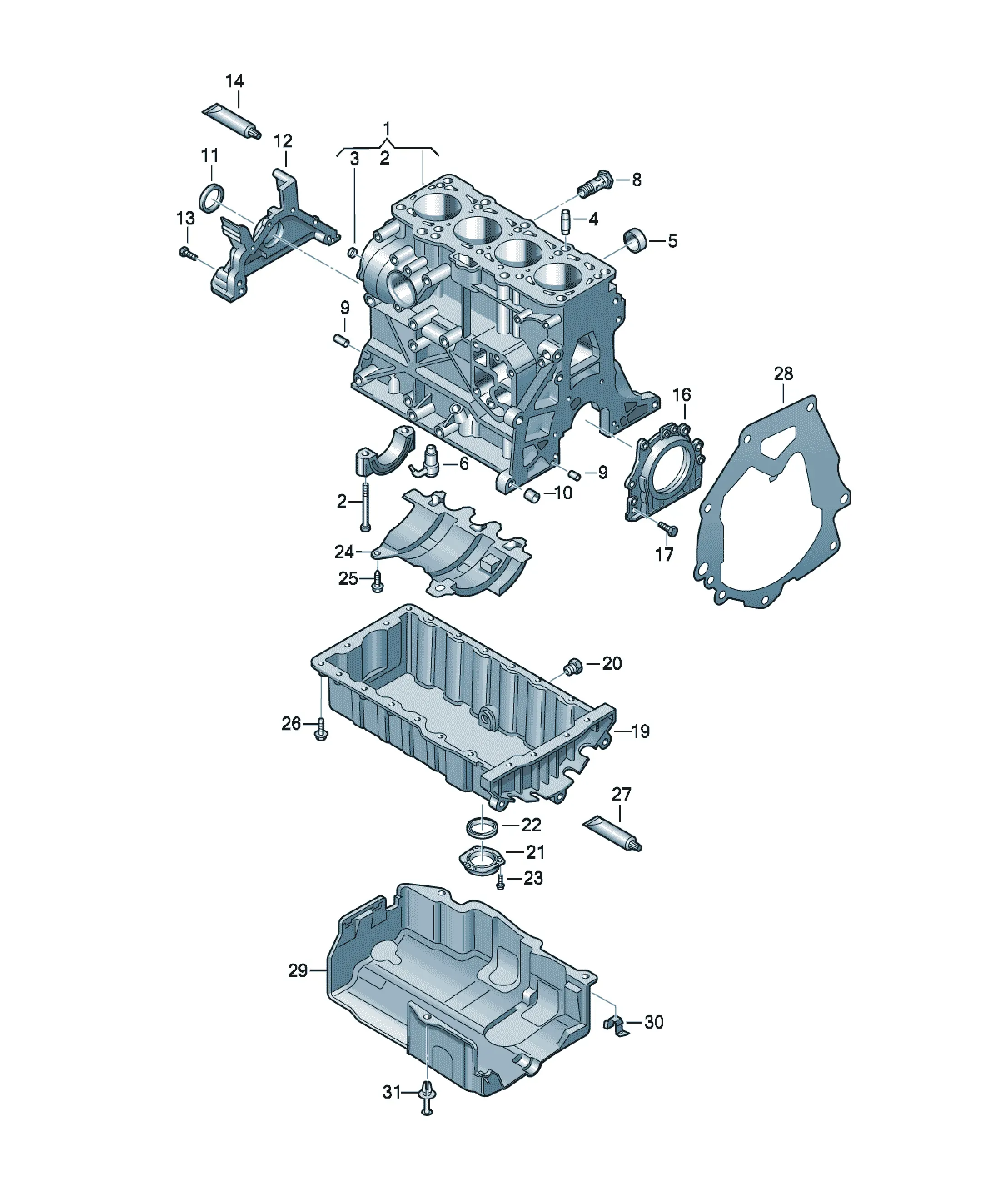

Блок цилиндров

[Name] [Note] [QTY]

Crankcase housing 1

also use: Piston

see illustration, item: 107-050,1

[Name] [Note] [QTY]

dowel sleeve 16X13,5 2

[Name] [Note] [QTY]

Shaft oil seal 35X48X10 1

[Name] [Note] [QTY]

Sealing flange front 1

Replacements: 03G103153E

[Name] [Note] [QTY]

hexagon socket head bolt with shoulder M7X21,5 6

[Name] [Note] [QTY]

Silicon sealant 50ml X

Sealing flange front

[Name] [Note] [QTY]

Sealing flange with sealing ring and trigger wheel rear 1

Replacements: 03L103171A

[Name] [Note] [QTY]

hexagon socket head bolt with shoulder M7X21,5 6

[Name] [Note] [QTY]

Engine oil sump with opening for oil level sensor 1

also use: 03G 103 707 1

For vehicles without extended service interval 038 103 196 1

N 910 652 01 3

Accompanying details: 03G103707

[Name] [Note] [QTY]

Hexagon bolt M10X80 10

Replacements: WHT006458

[Name] [Note] [QTY]

Seal bolt with sealing ring M14X1,5X22 1

[Name] [QTY]

cover for oil sump X

For vehicles without extended service interval

[Name] [QTY]

seal ring 1

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M6X28 3

[Name] [Note] [QTY]

hexagon socket head bolt with shoulder M7X28 20

[Name] [Note] [QTY]

Silicon sealant 50ml X

oil sump

[Name] [Model info] [QTY]

Cover plate automatic 1

[Name] [Model info] [QTY]

Cover plate manual gearbox 1

Replacements: 03L103647P

[Name] [QTY]

cover for oil sump 1

Items supplied

03L103728 Securing pin 2

03L863788A Spreader rivet 1

[Name] [Note] [QTY]

End cap 14 3

[Name] [QTY]

Securing pin 2

[Name] [QTY]

Spreader rivet 1

[Name] [Note] [QTY]

dowel sleeve 14,15X21 2

[Name] [Note] [QTY]

End cap 36,6 2

[Name] [Note] [QTY]

oil spray jet M10 4

Replacements: 038103157C

[Name] [Note] [QTY]

Cylinder pin 8X14 4
