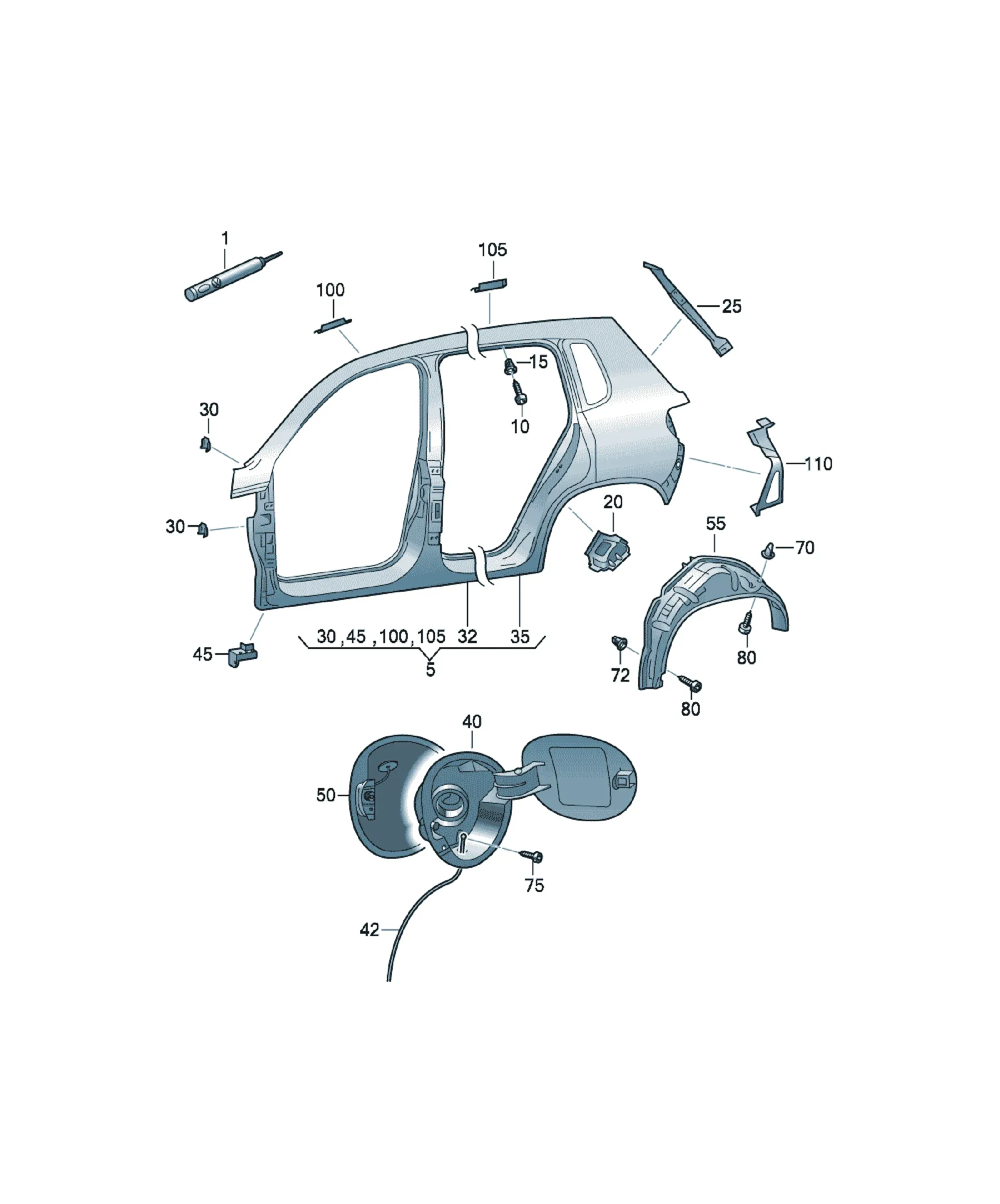

Кузовные элементы боковины

[Name] [Note] [QTY]

2 pack body adhesive high-strength 1

adhesives and sealing compound 240ML

Replacements: D 180003M2

[Name] [QTY]

sealing plug 4

[Name] [Note]

Roof frame reinforcement

Included in position: 5

[Name] [Note]

Roof frame reinforcement

Included in position: 5

[Name] [Note]

see illustration, item: 813-000,9

[Name] [Note] [QTY]

rivetted cap nut M6/0,5-3 2

[Name] [Note] [QTY]

Reinforcement for C-pillar centre right 1

Replacements: 5N0809612A

[Name] [Note] [QTY]

Reinforcement for C-pillar centre left 1

Replacements: 5N0809611A

[Name] [Note] [QTY]

Sealing channel right 1

[Name] [Note] [QTY]

Sealing channel left 1

[Name] [QTY]

bracket - fender 4

[Name] [Note] [QTY]

Sectional part - pillar A/B with frame member right front 1

see workshop manual body

[Name] [Note] [QTY]

Sectional part - pillar A/B with frame member left front 1

see workshop manual body

[Name] [Note] [QTY]

Sectional part - side panel right rear 1

see workshop manual body

[Name] [Note] [QTY]

Sectional part - side panel left rear 1

see workshop manual body

[Name] [QTY]

Flap for fuel filler with collecting tray 1

[Name]

primed

[Name] [QTY]

Hose 1

limit stop cup

Replacements: 3AA809937

[Name] [Note] [QTY]

bracket - fender left lower 1

[Name] [Note] [QTY]

bracket - fender right lower 1

[Name] [Note] [QTY]

Side part right outer 1

[Name] [Note] [QTY]

Side part left outer 1

[Name] [QTY]

throttle control element 1

Fuel filler flap

Replacements: 5N0810773E

[Name] [Note] [QTY]

Wheel housing liner left rear 1

[Name] [Note] [QTY]

Wheel housing liner right rear 1

[Name] [Note] [QTY]

expanding nut 5X13,2 X

[Name] [Note] [QTY]

expanding nut 4,8 X

[Name] [Note] [QTY]

Oval hexagon socket head bolt 4X12 1

[Name] [Note] [QTY]

Hexagon socket head panel bolt 5X16 X
