Двигатель внутреннего сгорания

[Name] [Note] [Model info] [QTY]

needle bearing - 15X21X23,6 Dual clutch gearbox 1

[Name] [Note] [Model info] [QTY]

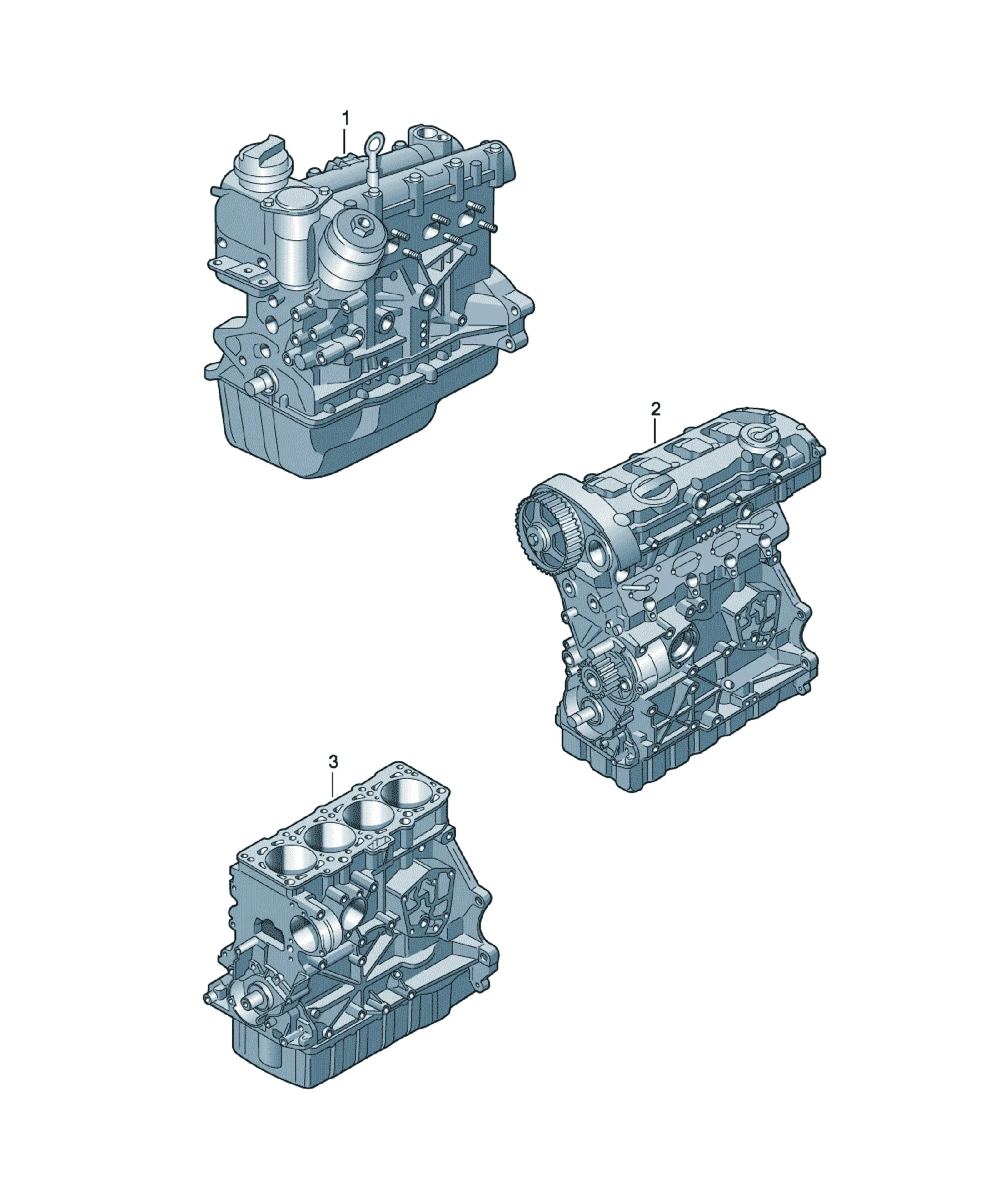

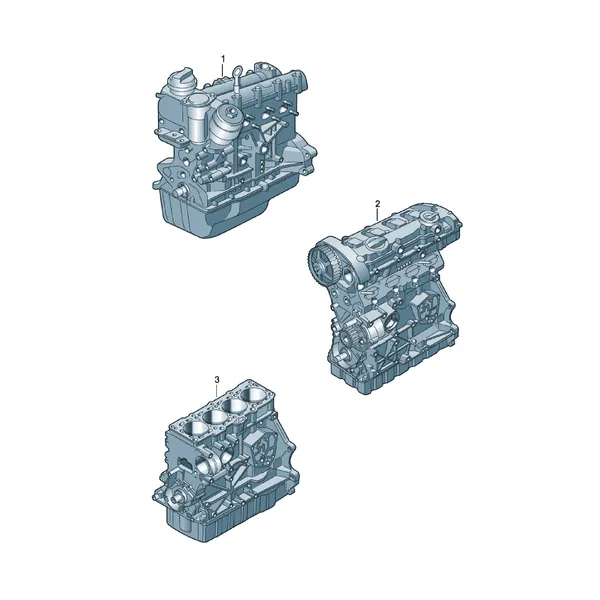

Base engine 1.4ltr.

D - 28.10.2008>>* 110KW CAVA 1

Items supplied

comprising: 1

Crankcase 1

Crankshaft 1

piston 4

conrod 4

Cylinder head 1

cylinder head cover 1

control valve 1

oil pump 1

timing case 1

timing chain 1

Sealing flange 1

oil sump 1

Coolant pump 1

oil filter 1

Oil cooler 1

Spark plug 4

Old part

03C100040 X Base engine 1

Cylinder block cast no.:

03C 103 021 AF/AM

03C100040CX Base engine 1

Cylinder block cast no.:

03C 103 021 AF/AM

03C100092AX Base engine 1

Cylinder block cast no.:

03C 103 021 AF/AM

[Name] [Note] [Model info] [QTY]

Base engine 1.4ltr.

D >> - 27.05.2008* 110KW BWK 1

Replacements: 03C100033RX

[Name] [Note] [Model info] [QTY]

Base engine 1.4ltr.

D >> - 27.05.2008* 110KW BWK 1

Items supplied

comprising: 1

Crankcase 1

Crankshaft 1

piston 4

conrod 4

Cylinder head 1

cylinder head cover 1

control valve 1

oil pump 1

timing case 1

timing chain 1

Sealing flange 1

oil sump 1

Coolant pump 1

Oil cooler 1

oil filter 1

Spark plug 4

Old part

03C100033R Base engine 1

03C100033RX Base engine 1

03C100091GX Base engine 1

[Name] [Note] [Model info] [QTY]

Base engine 1.4ltr.

D - 28.05.2008>>* 110KW BWK 1

Items supplied

comprising: 1

Crankcase 1

Crankshaft 1

piston 4

conrod 4

Cylinder head 1

cylinder head cover 1

control valve 1

oil pump 1

timing case 1

timing chain 1

Sealing flange 1

oil sump 1

Coolant pump 1

Oil cooler 1

oil filter 1

Spark plug 4

Old part

03C100040BX Base engine 1

03C100091MX Base engine 1

[Name] [Note] [Model info] [QTY]

Base engine 1.4ltr.

D >> - 31.10.2008* 110KW Frt.-wh.dr.+ 1

CAVA

Items supplied

comprising: 1

Crankcase 1

Crankshaft 1

piston 4

conrod 4

Cylinder head 1

cylinder head cover 1

control valve 1

oil pump 1

timing case 1

timing chain 1

Sealing flange 1

oil sump 1

Coolant pump 1

oil filter 1

Oil cooler 1

Spark plug 4

[Name] [Note] [Model info] [QTY]

Base engine 1.4ltr.

D >> - 31.10.2008* 110KW Frt.-wh.dr.+ 1

CAVA

Items supplied

comprising: 1

Crankcase 1

Crankshaft 1

piston 4

conrod 4

Cylinder head 1

cylinder head cover 1

control valve 1

oil pump 1

timing case 1

timing chain 1

Sealing flange 1

oil sump 1

Coolant pump 1

oil filter 1

Oil cooler 1

Spark plug 4

Old part

03C100040 X Base engine 1

Cylinder block cast no.:

03C 103 021 AF/AM

03C100040CX Base engine 1

Cylinder block cast no.:

03C 103 021 AF/AM

03C100092AX Base engine 1

Cylinder block cast no.:

03C 103 021 AF/AM

[Name] [Note] [Model info] [QTY]

Base engine 1.4ltr.

D >> - 27.10.2008* 110KW 4Motion+ 1

CAVA

Items supplied

comprising: 1

Crankcase 1

Crankshaft 1

piston 4

conrod 4

Cylinder head 1

cylinder head cover 1

control valve 1

oil pump 1

timing case 1

timing chain 1

Sealing flange 1

oil sump 1

Coolant pump 1

Oil cooler 1

oil filter 1

Spark plug 4

Old part

03C100040BX Base engine 1

03C100091MX Base engine 1

[Name] [Note] [Model info] [QTY]

Base engine 1.4ltr.

D - 28.10.2008>>* 110KW CAVA 1

Items supplied

comprising: 1

Crankcase 1

Crankshaft 1

piston 4

conrod 4

Cylinder head 1

cylinder head cover 1

control valve 1

oil pump 1

timing case 1

timing chain 1

Sealing flange 1

oil sump 1

Coolant pump 1

oil filter 1

Oil cooler 1

Spark plug 4

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr. CAWA,CAWB 1

125/147KW

Replacements: 06J100035F

Items supplied

Crankcase 1

piston 4

Crankshaft 1

conrod 4

balancer shaft 4

Sealing flange 1

oil pump 1

oil sump 1

Cylinder head 1

Toothed belt guard 1

Oil pressure switch 1

toothed belt pulley 1

Spark plug 4

Coolant pump 1

timing case 1

impulse sender 1

oil level sensor 1

Knock sensor 1

Bracket LAGERBRUECKE 1

Cover KETTENKASTEN 1

Engine brackets 1

oil separator 1

toothed belt 1

Fuel pump 1

Vacuum pump 1

Oil dipstick 1

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr. CAWA,CAWB 1

125/147KW

Replacements: 06J100035FX

Items supplied

Crankcase 1

piston 4

Crankshaft 1

conrod 4

Sealing flange 1

oil pump 1

oil sump 1

Cylinder head 1

Toothed belt guard 1

Oil pressure switch 1

toothed belt pulley 1

Spark plug 4

Coolant pump 1

timing case 1

impulse sender 1

oil level sensor 1

Knock sensor 1

Bracket LAGERBRUECKE 1

Cover KETTENKASTEN 1

Engine brackets 1

oil separator 1

toothed belt 1

Fuel pump 1

Vacuum pump 1

Oil dipstick 1

Old part

06J100033SX Base engine 1

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr.

D >> - MJ 2009* 147KW CCTA+PR:7MA 1

Replacements: 06J100033TX

Items supplied

comprising:

Crankcase 1

piston 4

Crankshaft 1

conrod 4

Sealing flange 1

oil pump 1

oil sump 1

Cylinder head 1

Toothed belt guard 1

Oil pressure switch 1

toothed belt pulley 1

Spark plug 4

Coolant pump 1

timing case 1

impulse sender 1

oil level sensor 1

Knock sensor 1

Bracket LAGERBRUECKE 1

Cover KETTENKASTEN 1

Engine brackets 1

oil separator 1

toothed belt 1

Fuel pump 1

Vacuum pump 1

Oil dipstick 1

Old part

06J100031T Base engine 1

06J100031TX Base engine 1

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr. CCTA+PR:7MA 1

147KW

Replacements: 06J100035G

Items supplied

Crankcase 1

piston 4

Crankshaft 1

conrod 4

Sealing flange 1

oil pump 1

oil sump 1

balancer shaft 1

Cylinder head 1

cylinder head cover 1

timing chain 1

timing case 1

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr. CCTA+PR:7GB 1

147KW

Replacements: 06J100035G

Items supplied

Crankcase 1

piston 4

Crankshaft 1

conrod 4

Sealing flange 1

oil pump 1

oil sump 1

balancer shaft 1

Cylinder head 1

cylinder head cover 1

timing chain 1

timing case 1

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr. CCTA+PR:7GB 1

147KW

Replacements: 06J100035GX

Items supplied

comprising:

Crankcase 1

piston 4

Crankshaft 1

conrod 4

Sealing flange 1

oil pump 1

oil sump 1

Cylinder head 1

Toothed belt guard 1

Oil pressure switch 1

toothed belt pulley 1

Spark plug 4

Coolant pump 1

timing case 1

impulse sender 1

oil level sensor 1

Knock sensor 1

Bracket LAGERBRUECKE 1

Cover KETTENKASTEN 1

Engine brackets 1

oil separator 1

toothed belt 1

Fuel pump 1

Vacuum pump 1

Oil dipstick 1

Old part

06J100033TX Base engine 1

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr. CCZA,CCZC 1

125/147KW.

also use: 06B 105 313 D Dual clutch gearbox 1

Accompanying details: 06B105313D

Replacements: 06J100034T

Items supplied

Crankcase 1

piston 4

Crankshaft 1

conrod 4

Sealing flange 1

oil pump 1

oil sump 1

Cylinder head 1

Oil pressure switch 1

toothed belt pulley 1

Spark plug 4

Coolant pump 1

timing case 1

impulse sender 1

oil level sensor 1

Knock sensor 1

Cover KETTENKASTEN 1

Engine brackets 1

oil separator 1

toothed belt 1

Fuel pump 1

Vacuum pump 1

oil filter 1

vibration damper

[Name] [Note] [Model info] [QTY]

Base engine 2.0 Ltr. CCZA,CCZC 1

125/147KW.

also use: 06B 105 313 D Dual clutch gearbox 1

Accompanying details: 06B105313D

Replacements: 06J100034TX

Items supplied

Crankcase 1

piston 4

Crankshaft 1

conrod 4

Sealing flange 1

oil pump 1

oil sump 1

Cylinder head 1

Oil pressure switch 1

toothed belt pulley 1

Spark plug 4

Coolant pump 1

impulse sender 1

oil level sensor 1

Knock sensor 1

timing case 1

timing chain 1

Cover KETTENKASTEN 1

Engine brackets 1

oil separator 1

Fuel pump 1

Vacuum pump 1

oil filter 1

vibration damper 1

Old part

06J100033AX Base engine 1
