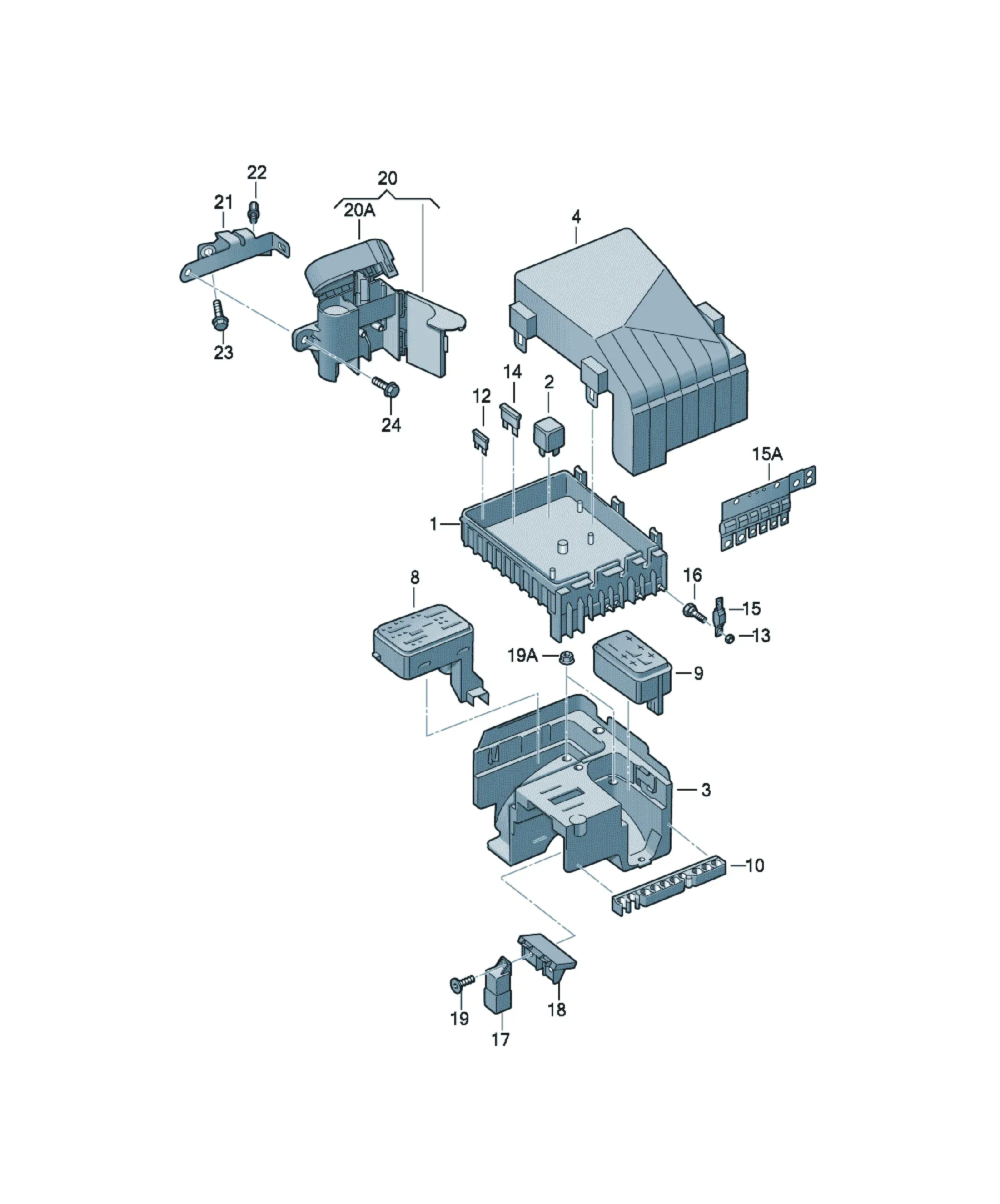

Центральный блок электрики моторного отсека

[Name] [Note] [QTY]

Central electrics for engine bay

D - 03.11.2008>> 1

to be used for item: 15A

[Name] [Note] [QTY]

Central electrics for engine bay

D >> - 03.11.2008 1

to be used for item: 15

[Name] [QTY]

Cable holder 1

[Name] [Note] [QTY]

flat fuse 19/2x5 5A -lt brown- X

[Name] [Note] [QTY]

flat fuse 19/2x5 10A -red- X

[Name] [Note] [QTY]

flat fuse 19/2x5 30A-lt green- X

Replacements: N 01713125

[Name] [Note] [QTY]

flat fuse 19/2x5 15A -lt blue- X

[Name] [Note] [QTY]

flat fuse 19/2x5 25A -cl.glass- X

[Name] [Note] [QTY]

flat fuse 19/2x5 20A -yellow- X

Replacements: N 01713113

[Name] [Note] [QTY]

flat fuse 19/2x5 40A-ORANGE- X

[Name] [Note] [QTY]

Hexagon collar nut self-locking M5 X

[Name] [Note] [QTY]

flat fuse 29/2x8 50A -red- X

[Name] [Note] [QTY]

flat fuse 29/2x8 30A-lt green- X

[Name] [Note] [QTY]

flat fuse 29/2x8 40A -orange- X

[Name] [Note] [QTY]

Strip fuse 200A -violet-

D >> - 03.11.2008 X

[Name] [Note] [QTY]

Strip fuse 50A -red- X

[Name] [Note] [QTY]

Strip fuse 70A -brown-

D >> - 03.11.2008 X

[Name] [Note] [QTY]

Strip fuse 80A -white-

D >> - 03.11.2008 X

[Name] [Note] [QTY]

Strip fuse 100A -blue-

D >> - 03.11.2008 X

[Name] [Note] [QTY]

Strip fuse 125A -pink-

D >> - 03.11.2008 X

[Name] [Note] [QTY]

Strip fuse 150A -grey-

D >> - 03.11.2008 X

[Name] [Note] [QTY]

Strip fuse 40A-GRUEN-

D >> - 03.11.2008 X

[Name] [Note] [QTY]

Multi-fuse 200A

D - 03.11.2008>> 1

only to be used for: 1K0 937 125 D

[Name] [Note] [QTY]

shouldered bolt M5X7,5X13,5 X

[Name] [QTY]

Control unit for glow plug 1

SITZT IM MOTORRAUM

[Name] [QTY]

Control unit for glow plug 1

mating connector

07Z973721 Flat contact housing 11 pin 1

[Name] [QTY]

Retainer for relay 1

Replacements: 1K0937540C

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X12 2

[Name] [Note] [QTY]

Hexagon collar nut M6 2

[Name] [Note] [QTY]

contact close relay X

relay location/code no.: /100

Replacements: 4H0951253

[Name] [Note] [QTY]

Jumper 1

relay location: 2

[Name] [QTY]

bracket - relay plate/fuse box 1

[Name] [QTY]

Cover 1

[Name] [Note] [QTY]

Flat contact housing 40 pin 1

Possible single wire:

000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

flat contact with retaining lug 0,5

1,5

GEGENSTUECK

000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

flat contact with retaining lug 0,5

4,8-6,3MM

000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 1,5

000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979406E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact 9,5

000979500R Single lead with 1 contact in the bag 1500MM X

-40C/+105C

with cable crosssection: 10QMM

Cable colour: yellow
