Кожух двигателя и подкапотное пространство

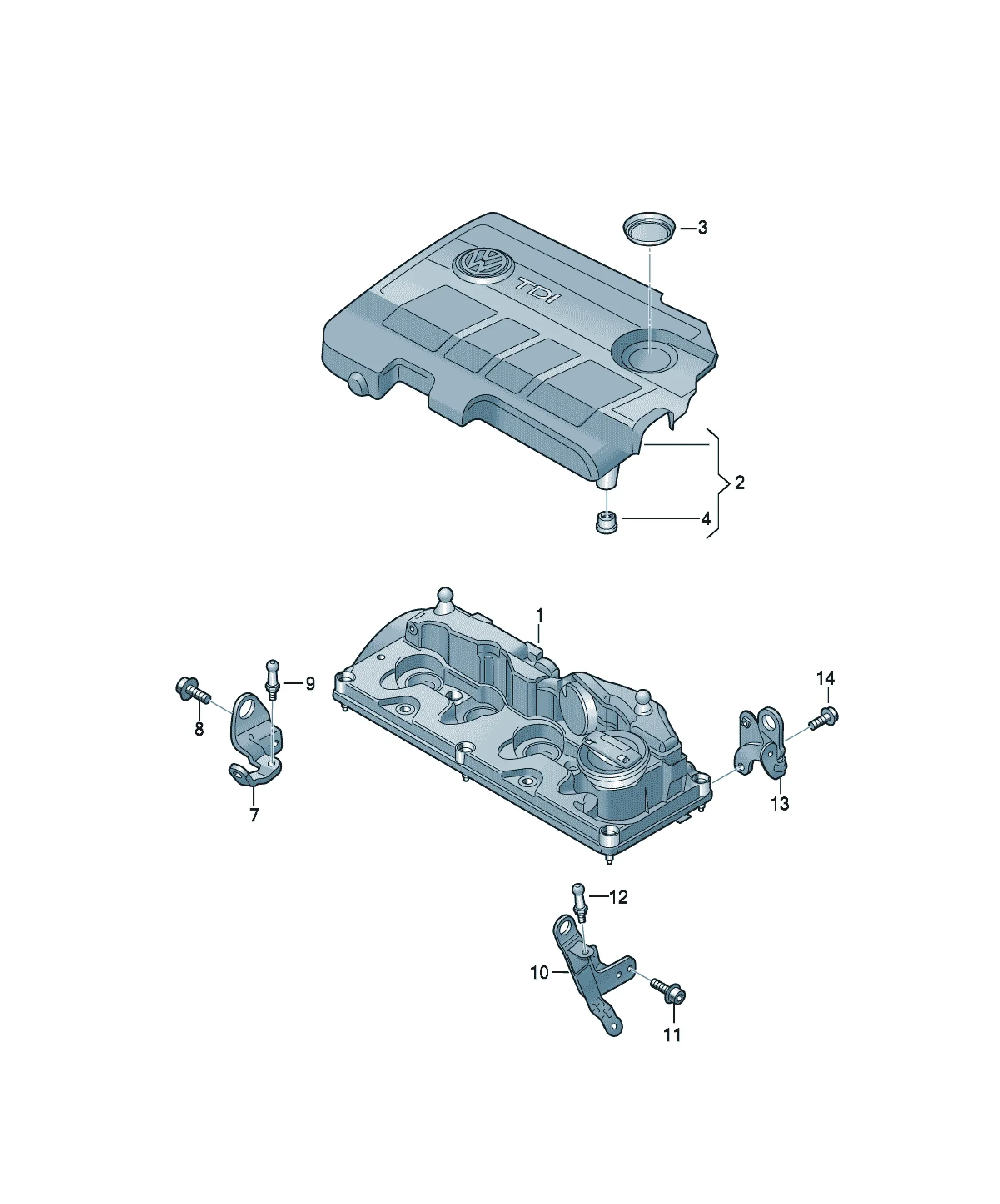

Крышка впускного коллектора

Схемы узла

5 схем

13 деталей

[Name] [Note]
cylinder head cover
see illustration: 103-065
03L103369AF Предложения

[Name] [Model info] [QTY]
Suspension lug CFFD,CFFA, 1
CLJA,CFFB
03L103369AG Предложения

[Name] [Model info] [QTY]
Suspension lug CFGB 1
N10677501 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X22 2
03L103164 Предложения

[Name] [QTY]
ball head 1
03L103369F Предложения

[Name] [QTY]
Retaining bracket 1
N91048802 Предложения

[Name] [Note] [QTY]
Screw with int. serrations M8X20 1
03L103925R Предложения

[Name] [Note] [QTY]
cover for intake manifold 'VW' 'TDI' 1
03L133287 Предложения

[Name] [QTY]
seal ring 1
07C103226 Предложения

[Name] [QTY]
push-on connector 4
03L103390H Предложения

[Name] [QTY]
Suspension lug 1
N10677501 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X22 2
03L103164 Предложения

[Name] [QTY]
ball head 1
