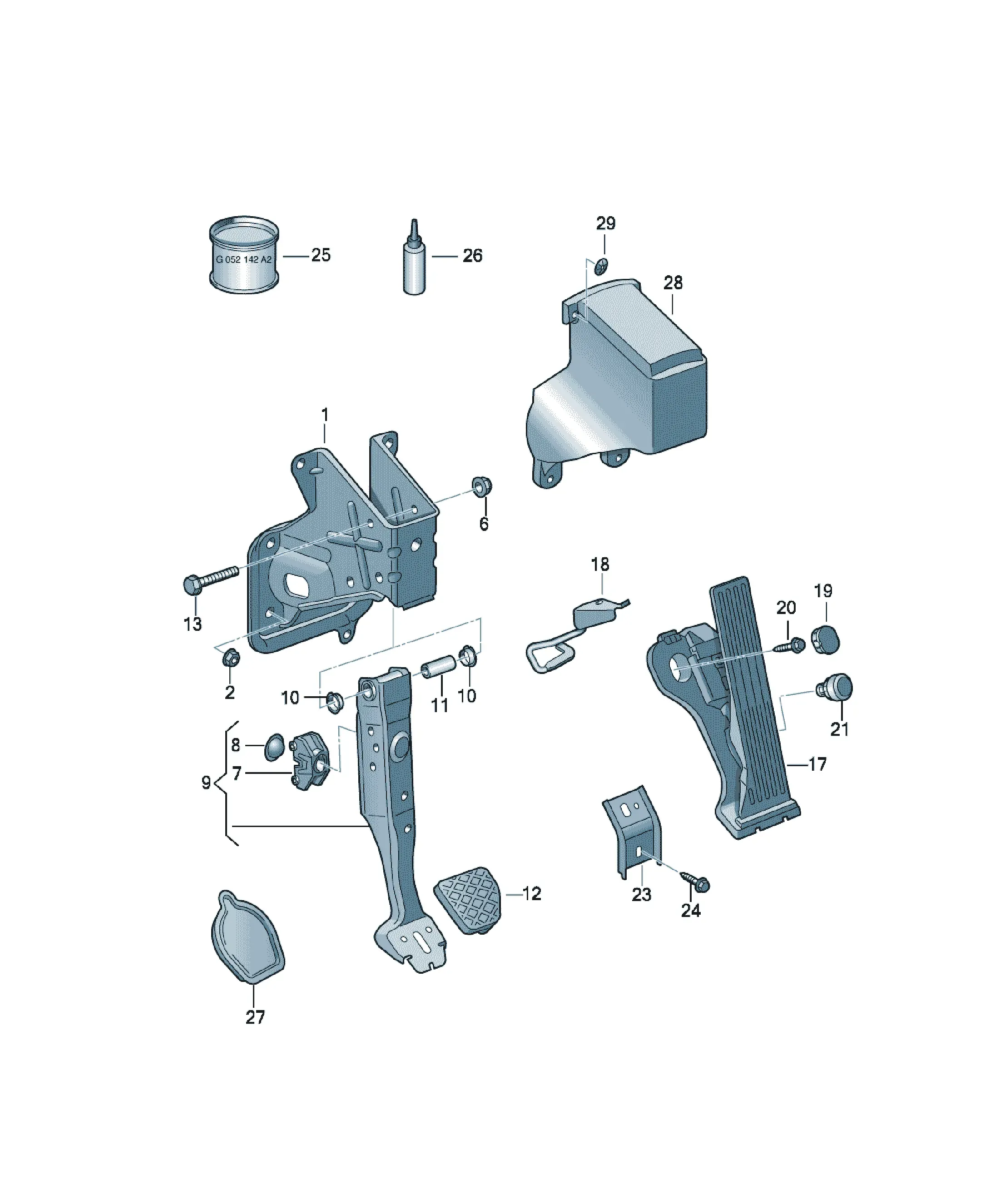

Педальный узел

[Name] [QTY]

bracket for pedal cluster 1

Replacements: 1K1721115S

[Name] [QTY]

Bearing bush 2

[Name] [Note] [QTY]

bearing pin 15H9X45.44 1

[Name] [Model info] [QTY]

Cap Automatic+ 1

for foot brake pedal PR:VF0

[Name] [Model info] [QTY]

Cap manual gearbox 1

for foot brake pedal

[Name]

Satin black

[Name] [Model info] [QTY]

Cap automatic 1

for foot brake pedal

[Name]

Satin black

[Name] [Model info] [QTY]

Cap for foot brake pedal Manual gearbox+ 1

PR:VF3

[Name] [Model info] [QTY]

Cap for foot brake pedal Automatic+ 1

PR:VF3

Replacements: 1K0723131 4J4

[Name]

Brushed aluminium

[Name] [Model info] [QTY]

Cap for foot brake pedal Automatic+ 1

PR:VF3

[Name]

Brushed aluminium

[Name]

Brushed aluminium

[Name] [Model info] [QTY]

Cap Manual gearbox+ 1

for foot brake pedal

PR:VF0

[Name] [Note] [QTY]

Hexagon bolt M8X62 1

[Name] [Model info] [QTY]

Accelerator pedal with electronic module Manual gearbox+ 1

D - 01.06.2010>> PR:VF3

Replacements: 1K1721503AR

[Name] [Model info] [QTY]

Accelerator pedal with electronic module Manual gearbox+ 1

D >> - 31.05.2010 PR:VF3

[Name] [Model info] [QTY]

Accelerator pedal with electronic module Manual gearbox+ 1

PR:VF0

Replacements: 1K1721503BC

[Name] [Model info] [QTY]

Accelerator pedal with electronic module Automatic+ 1

PR:VF3

D >> - 31.05.2010

Replacements: 1K1723503AN

[Name] [Model info] [QTY]

Accelerator pedal with electronic module Automatic+ 1

PR:VF3

D - 01.06.2010>>

Replacements: 1K1723503AN

[Name] [Model info] [QTY]

Accelerator pedal with electronic module automatic 1

Replacements: 1K1723503AS

mating connector

8K0973706 Flat contact housing with contact locking mechanism 6 pin 1

black

[Name] [Model info] [QTY]

Accelerator pedal with electronic module Automatic+ 1

PR:VF0

Replacements: 1K1723503AS

mating connector

8K0973706 Flat contact housing with contact locking mechanism 6 pin 1

black

[Name] [Model info] [QTY]

Accelerator pedal with electronic module manual gearbox 1

Replacements: 1K1721503BC

[Name] [QTY]

crash member 1

Replacements: 1K1721913R

[Name] [QTY]

Cap 1

[Name] [Note] [QTY]

Hexagon collar nut self-locking M8 6

[Name] [Note] [QTY]

Hexagon bolt M6X22 1

[Name] [Model info] [QTY]

kick down actuator automatic 1

[Name] [QTY]

Retainer for accelerator pedal 1

[Name] [Note] [QTY]

Hexagon bolt M6X22 1

[Name] [Note] [QTY]

poly lubricant 400G 1

[Name] [Note] [QTY]

Locking fluid 10ML 1

Replacements: D 185400A3

[Name] [Model info] [QTY]

Bungs automatic 1

[Name] [Model info] [QTY]

Noise insulation on brake pedal CAWB,CCTA+ 1

PR:0F4

[Name] [Model info] [QTY]

Noise insulation on brake pedal PR:0F9 1

[Name] [Model info] [QTY]

Noise insulation on brake pedal CAWB,CCTA, 1

CCZA,CAWA,

CCTB,CCZC+

PR:0F4

[Name] [Note] [QTY]

Clamping washer B-6X20 3

[Name] [Note] [QTY]

Hexagon collar nut self-locking M8 6

[Name] [QTY]

Support 1

Replacements: 1J0721169A 909

[Name]

natural colours

Replacements: 1K0721169

[Name] [QTY]

bearing shell 1

[Name] [Model info] [QTY]

brake pedal automatic 1

Replacements: 1K1723142J

[Name] [Model info] [QTY]

brake pedal manual gearbox 1

Replacements: 1K1721142G
