Ремни безопасности

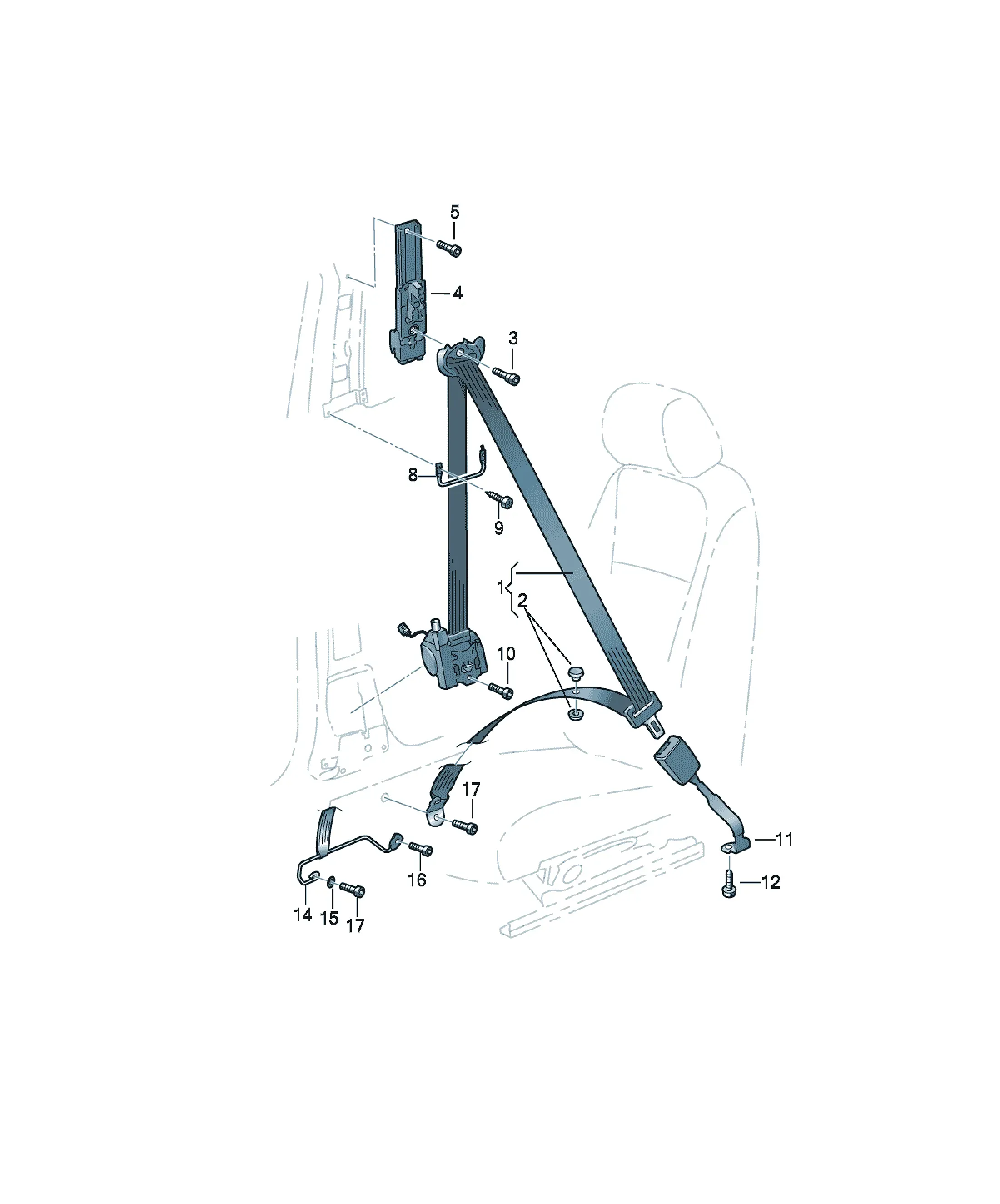

Ремень безопасности

Схемы узла

2 схемы

Детали

44 детали

5N1857705B Предложения

[Name] [Note] [Model info] [QTY]
three-point automatic seat belt with belt tensioner left lhd PR:4QQ 1
***** Caution Hazardous ******
5N1857705C Предложения

[Name] [Note] [Model info] [QTY]
three-point automatic seat belt with belt tensioner left lhd PR:3QT 1
***** Caution Hazardous ******
5N1857705CRAA Предложения

[Name]
Black
mating connector
6X0972773 Flat contact housing 3 pin 1
5N1857706ERAA Предложения

[Name]
Black
mating connector
6X0972773 Flat contact housing 5 pin 1
5N1857706E Предложения

[Name] [Note] [Model info] [QTY]
three-point automatic seat belt with belt tensioner right lhd PR:4QQ 1
***** Caution Hazardous ******
5N1857706DRAA Предложения

[Name]
Black
mating connector
4E0973205 Flat contact housing with contact locking mechanism 5 pin 1
5N1857706D Предложения

[Name] [Note] [Model info] [QTY]
three-point automatic seat belt with belt tensioner right lhd PR:4QQ 1
***** Caution Hazardous ******
5N1857706BRAA Предложения

[Name]
Black
Replacements: 5N1857706D RAA
mating connector
4E0973205 Flat contact housing with contact locking mechanism 5 pin 1
5N1857706B Предложения

[Name] [Note] [Model info] [QTY]
three-point automatic seat belt with belt tensioner right lhd PR:4QQ 1
***** Caution Hazardous ******
5N1857706CRAA Предложения

[Name]
Black
mating connector
6X0972773 Flat contact housing 3 pin 1
5N1857706C Предложения

[Name] [Note] [Model info] [QTY]
three-point automatic seat belt with belt tensioner right lhd PR:3QT 1
***** Caution Hazardous ******
5N2857706ARAA Предложения

[Name]
Black
mating connector
6X0972773 Flat contact housing 3 pin 1
5N2857706A Предложения

[Name] [Note] [QTY]
three-point automatic seat belt with belt tensioner right rhd 1
***** Caution Hazardous ******
5N2857705ARAA Предложения

[Name]
Black
mating connector
6X0972773 Flat contact housing 3 pin 1
5N2857705A Предложения

[Name] [Note] [QTY]
three-point automatic seat belt with belt tensioner left rhd 1
***** Caution Hazardous ******
5N1857705ERAA Предложения

[Name]
Black
mating connector
6X0972773 Flat contact housing 5 pin 1
5N1857705E Предложения

[Name] [Note] [Model info] [QTY]
three-point automatic seat belt with belt tensioner left lhd PR:4QQ 1
***** Caution Hazardous ******
5N1857705DRAA Предложения

[Name]
Black
mating connector
4E0973205 Flat contact housing with contact locking mechanism 5 pin 1
5N1857705D Предложения

[Name] [Note] [Model info] [QTY]
three-point automatic seat belt with belt tensioner left lhd PR:4QQ 1
***** Caution Hazardous ******
5N1857705BRAA Предложения

[Name]
Black
Replacements: 5N1857705D RAA
mating connector
4E0973205 Flat contact housing with contact locking mechanism 5 pin 1
N98926001 Предложения

[Name] [Note] [QTY]
Socket head collared bolt with inner multipoint head 7/16"-20X22 2
5N0857755E Предложения

[Name] [Note] [Model info] [QTY]
Belt latch with warning contact right lhd PR:3H0+3L3+ 1
9P3
5N0857756EQVZ Предложения

[Name]
satin black/fire red
Replacements: 5N0857756J QVZ
mating connector
1J0973332 Flat contact housing 2 pin 1
1T0973119 Flat contact housing with contact locking mechanism 2 pin 1
blue
5N0857756E Предложения

[Name] [Note] [Model info] [QTY]
Belt latch with warning contact right lhd PR:3H0+3L1 1
5N0857755EQVZ Предложения

[Name]
satin black/fire red
Replacements: 5N0857755H QVZ
mating connector
1J0973332 Flat contact housing 2 pin 1
1T0973119 Flat contact housing with contact locking mechanism 2 pin 1
blue
5N0857756F Предложения

[Name] [Note] [Model info] [QTY]
Belt latch with warning contact left rhd PR:3H1 1
5N0857755D Предложения

[Name] [Note] [Model info] [QTY]
Belt latch with warning contact left lhd PR:3H0,3H2 1
5N0857755E Предложения

[Name] [Note] [Model info] [QTY]
Belt latch with warning contact left rhd PR:3H0 1
5N0857755DQVZ Предложения

[Name]
satin black/fire red
Replacements: 5N0857755G QVZ
mating connector
1J0973332 Flat contact housing 2 pin 1
5N0857755D Предложения

[Name] [Note] [QTY]
Belt latch with warning contact right rhd 1
5N0857756FQVZ Предложения

[Name]
satin black/fire red
Replacements: 5N0857756K QVZ
mating connector
1J0973332 Flat contact housing 2 pin 1
1T0973119 Flat contact housing with contact locking mechanism 2 pin 1
blue
5N0857756F Предложения

[Name] [Note] [Model info] [QTY]
Belt latch with warning contact right lhd PR:3H2 1
N98923701 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head 7/16-20UNFX13 2
[Name]
guide arm
Not for this model
[Name]
Washer
Not for this model
[Name]
Socket head bolt
Not for this model
N98926102 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head 7/16"-20X32 2
443857847B Предложения

[Name] [Note] [QTY]
knob 16MM 1
Replacements: 443857847B 4PK
443857847B4PK Предложения

[Name]
soul (black)
N98924301 Предложения

[Name] [Note] [QTY]
Socket head collared bolt with inner multipoint head 7/16"-20X26 2
1T0857819B Предложения

[Name] [QTY]
Seat belt height adjuster 2
N10572401 Предложения

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X16 2
1K4857817 Предложения

[Name] [QTY]
Seat belt guide 2
N10684701 Предложения

[Name] [Note] [QTY]
Oval hexagon socket head bolt M5X20 2
