Стеклоподъемник

Центральный блок управления систем комфорта

Схемы узла

4 схемы

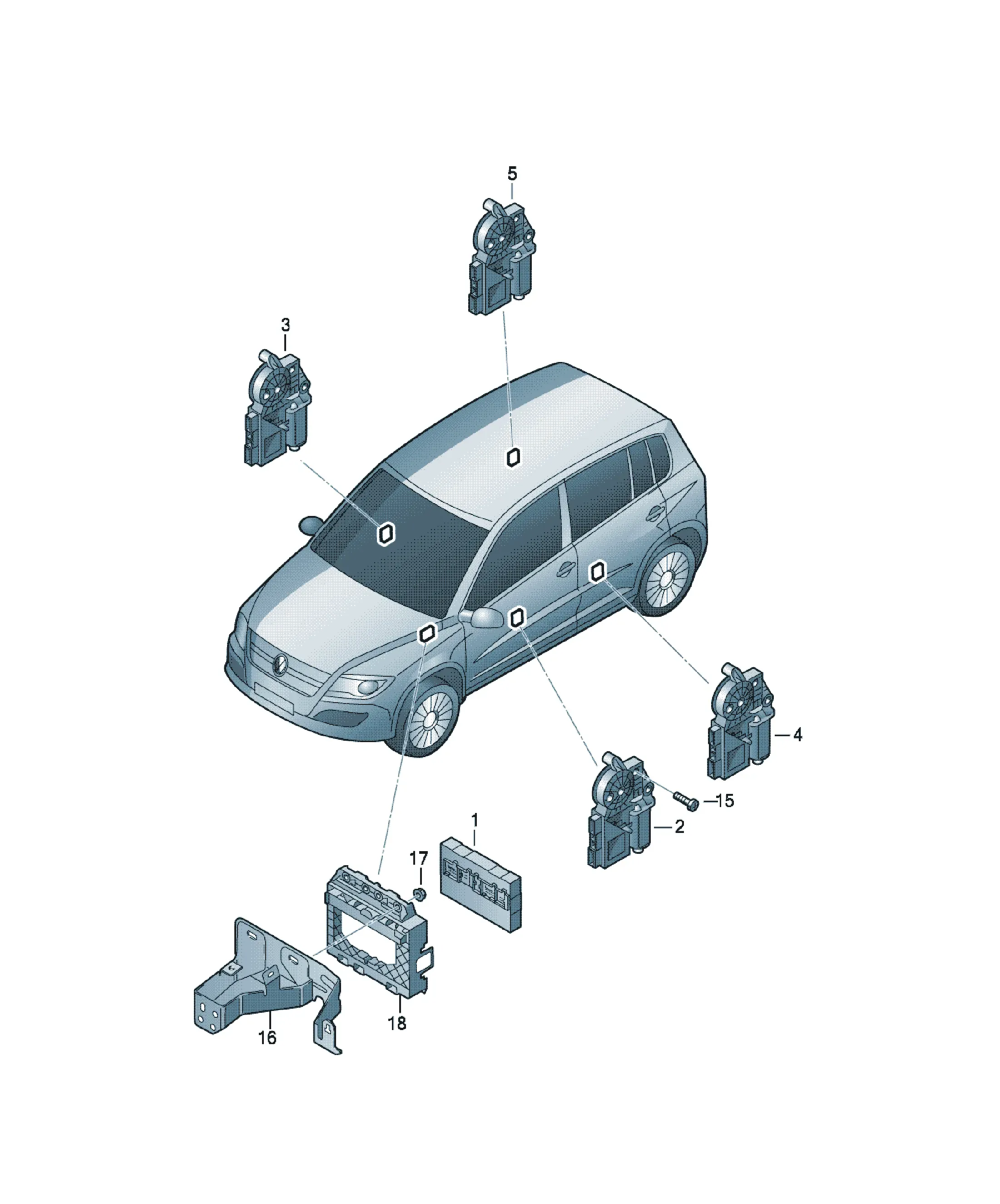

Схема «Центральный блок управления систем комфорта»

Детали

82 детали

Кабельная стяжка
N90937702 Предложения

[Name] [Note] [QTY]
Cable ties 4,6X193 X
toothed quadrant outer
1K0959433CA Предложения

[Name] [Model info] [QTY]
Central control unit for convenience system PR:7K0,7K6+ 1
5D2,5D3,5D5
mating connector
1K0972930A Flat connector housing with contact locking mechanism 18 pin 1
brown
1K0972924 Flat contact housing with contact locking mechanism 8 pin 1
black
1K0972930 Flat connector housing with contact locking mechanism 18 pin 1
black
1K0959433DA Предложения

[Name] [Model info] [QTY]
Central control unit for convenience system PR:7K4+5D2, 1
5D3,5D5
mating connector
1K0972930A Flat connector housing with contact locking mechanism 18 pin 1
brown
1K0972924 Flat contact housing with contact locking mechanism 8 pin 1
black
1K0972930 Flat connector housing with contact locking mechanism 18 pin 1
black
1K0972923 Flat contact housing with contact locking mechanism 6 pin 1
black
1K0972923A Flat contact housing with contact locking mechanism 6 pin 1
brown
[Name] [Note]
Control unit (BCM) for conv. system & OB power supply
D - 25.05.2009>>
see illustration: 937-050
1K0959433BT Предложения

[Name] [Model info] [QTY]
Central control unit for convenience system PR:7K0,7K6+ 1
5D1,5D9
mating connector
1K0972930A Flat connector housing with contact locking mechanism 18 pin 1
brown
1K0972924 Flat contact housing with contact locking mechanism 8 pin 1
black
1K0972930 Flat connector housing with contact locking mechanism 18 pin 1
black
8Z0837691C Предложения

[Name] [Note] [QTY]
Hexagon socket head panel bolt 5X22 X
1K2971262E Предложения

[Name] [Note] [QTY]
Bracket rhd 1
modify in workshop
1K1971262E Предложения

[Name] [Note] [QTY]
Retaining plate lhd 1
modify in workshop
N91079901 Предложения

[Name] [Note] [QTY]
Hexagon collar bolt with socket head rhd 2
N90887703 Предложения

[Name] [Note] [QTY]
Hexagon flange nut, self-locking lhd 2
1K1971262J Предложения

[Name] [Note] [QTY]
Retainer for control unit lhd 1
Central control unit for convenience system
1K2971262G Предложения

[Name] [Note] [QTY]
Retainer for control unit rhd 1
Central control unit for convenience system
5N0959701EZ0F Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XP,6XQ+
D - 02.11.2009>> B0A,B0L,B0M,
B0N,B1C,B1D,
B1P,B1Q,B2A,
B2E,B4G+L0R
5N0959701EZ0K Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XN+B0A,
D >> - 19.10.2009 B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0R
5N0959701EZ0A Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XN+
D - 02.11.2009>> B0D,B0E,B0R,
B0W
5N0959701EZ0E Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XP,6XQ+
D - 02.11.2009>> B0D,B0E,B0R,
B0W+L0L
5N0959701EZ09 Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XN+
D - 02.11.2009>> B0A,B0L,B0M,
B0N,B1C,B1D,
B1P,B1Q,B2E,
B2A,B4G
5N0959701E Предложения

[Name] [Note] [QTY]
Window regulator motor Driver door 1
* order only with color code *
5N0959701EZ0M Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XP,6XQ+
D >> - 19.10.2009 B0A,B0L,B0M,
B0N,B1C,B1D,
B1P,B1Q,B2A,
B2E,B4G+L0L
5N0959701EZ05 Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XP,6XQ+
D - 19.10.2009>> - 02.11.2009 B0A,B0L,B0M,
B0N,B1C,B1D,
B1P,B1Q,B2A,
B2E,B4G+L0L
5N0959701EZ0D Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XP,6XQ+
D - 02.11.2009>> B0A,B0L,B0M,
B0N,B1C,B1D,
B1P,B1Q,B2A,
B2E,B4G+L0L
5N0959701EZ0N Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XP,6XQ+
D >> - 19.10.2009 B0D,B0E,B0R,
B0W+L0L
5N0959701EZ06 Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XP,6XQ+
D - 19.10.2009>> - 02.11.2009 B0D,B0E,B0R,
B0W+L0L
5N0959701EZ01 Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XN+
D - 19.10.2009>> - 02.11.2009 B0A,B0L,B0M,
B0N,B1C,B1D,
B1P,B1Q,B2E,
B2A,B4G
5N0959701EZ02 Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XN+
D - 19.10.2009>> - 02.11.2009 B0D,B0E,B0R,
B0W
5N0959701EZ0J Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XN+
D >> - 19.10.2009 B0D,B0E,B0R,
B0W
5N0959701EZ03 Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XN+B0A,
D - 19.10.2009>> - 02.11.2009 B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0R
5N0959701EZ0H Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XN+
D >> - 19.10.2009 B0A,B0L,B0M,
B0N,B1C,B1D,
B1P,B1Q,B2E,
B2A,B4G
5N0959701EZ0G Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XP,6XQ+
D - 02.11.2009>> B0D,B0E,B0R,
B0W+L0R
5N0959701EZ08 Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XP,6XQ+
D - 19.10.2009>> - 02.11.2009 B0D,B0E,B0R,
B0W+L0R
5N0959701EZ0Q Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XP,6XQ+
D >> - 19.10.2009 B0D,B0E,B0R,
B0W+L0R
5N0959701EZ07 Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XP,6XQ+
D - 19.10.2009>> - 02.11.2009 B0A,B0L,B0M,
B0N,B1C,B1D,
B1P,B1Q,B2A,
B2E,B4G+L0R
5N0959701EZ0P Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XP,6XQ+
D >> - 19.10.2009 B0A,B0L,B0M,
B0N,B1C,B1D,
B1P,B1Q,B2A,
B2E,B4G+L0R
5N0959701EZ0C Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XN+B0D,
D - 02.11.2009>> B0E,B0R,B0W+
L0R
5N0959701EZ04 Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XN+B0D,
D - 19.10.2009>> - 02.11.2009 B0E,B0R,B0W+
L0R
5N0959701EZ0L Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XN+B0D,
D >> - 19.10.2009 B0E,B0R,B0W+
L0R
5N0959701EZ0B Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XN+B0A,
D - 02.11.2009>> B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0R
5N0959702EZ0L Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XQ+B0D,
D - 02.11.2009>> B0E,B0R,B0W+
L0L
5N0959702EZ0B Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XQ+B0A,
D - 19.10.2009>> - 02.11.2009 B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0R
5N0959702EZ0M Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XP+B0A,
D - 02.11.2009>> B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0R
5N0959702EZ0F Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XN+B0A,
D - 02.11.2009>> B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0R
5N0959702EZ0P Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XQ+B0A,
D - 02.11.2009>> B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0R
5N0959702EZ0U Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XN+B0D,
D >> - 19.10.2009 B0E,B0R,B0W+
L0R
5N0959702EZ04 Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XN+B0D,
D - 19.10.2009>> - 02.11.2009 B0E,B0R,B0W+
L0R
5N0959702EZ0G Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XN+B0D,
D - 02.11.2009>> B0E,B0R,B0W+
L0R
5N0959702EZ12 Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XQ+B0D,
D >> - 19.10.2009 B0E,B0R,B0W+
L0R
5N0959702EZ0C Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XQ+B0D,
D - 19.10.2009>> - 02.11.2009 B0E,B0R,B0W+
L0R
5N0959702EZ0Q Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XQ+B0D,
D - 02.11.2009>> B0E,B0R,B0W+
L0R
5N0959702EZ0Z Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XP+B0A,
D >> - 19.10.2009 B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0R
5N0959702EZ09 Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XP+B0A,
D - 19.10.2009>> - 02.11.2009 B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0R
5N0959702EZ10 Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XP+B0D,
D >> - 19.10.2009 B0E,B0R,B0W+
L0R
5N0959702EZ0A Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XP+B0D,
D - 19.10.2009>> - 02.11.2009 B0E,B0R,B0W+
L0R
5N0959702EZ0T Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XN+B0A,
D >> - 19.10.2009 B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0R
5N0959702EZ03 Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XN+B0A,
D - 19.10.2009>> - 02.11.2009 B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0R
5N0959702EZ0E Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XN+B0D,
D - 02.11.2009>> B0E,B0R,B0W+
L0L
5N0959702EZ0J Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XP+B0D,
D - 02.11.2009>> B0E,B0R,B0W+
L0L
5N0959702EZ07 Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XQ+B0A,
D - 19.10.2009>> - 02.11.2009 B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0L
5N0959702E Предложения

[Name] [Note] [QTY]
Window regulator motor passenger door 1
* order only with color code *
5N0959702EZ0R Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XN+B0A,
D >> - 19.10.2009 B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0L
5N0959702EZ01 Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XN+B0A,
D - 19.10.2009>> - 02.11.2009 B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0L
5N0959702EZ0D Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XN+B0A,
D - 02.11.2009>> B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0L
5N0959702EZ0S Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XN+B0D,
D >> - 19.10.2009 B0E,B0R,B0W+
L0L
5N0959702EZ02 Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XN+B0D,
D - 19.10.2009>> - 02.11.2009 B0E,B0R,B0W+
L0L
5N0959702EZ0X Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XQ+B0A,
D >> - 19.10.2009 B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0L
5N0959702EZ0K Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XQ+B0A,
D - 02.11.2009>> B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0L
5N0959702EZ06 Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XP+B0D,
D - 19.10.2009>> - 02.11.2009 B0E,B0R,B0W+
L0L
5N0959702EZ0Y Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XQ+B0D,
D >> - 19.10.2009 B0E,B0R,B0W+
L0L
5N0959702EZ08 Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XQ+B0D,
D - 19.10.2009>> - 02.11.2009 B0E,B0R,B0W+
L0L
5N0959702EZ11 Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XQ+B0A,
D >> - 19.10.2009 B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0R
5N0959702EZ0V Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XP+B0A,
D >> - 19.10.2009 B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0L
5N0959702EZ05 Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XP+B0A,
D - 19.10.2009>> - 02.11.2009 B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0L
5N0959702EZ0H Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XP+B0A,
D - 02.11.2009>> B0L,B0M,B0N,
B1C,B1D,B1P,
B1Q,B2A,B2E,
B4G+L0L
5N0959702EZ0W Предложения

[Name] [Note] [Model info]
Window regulator motor lhd PR:6XP+B0D,
D >> - 19.10.2009 B0E,B0R,B0W+
L0L
5N0959702EZ0N Предложения

[Name] [Note] [Model info]
Window regulator motor rhd PR:6XP+B0D,
D - 02.11.2009>> B0E,B0R,B0W+
L0R
5N0959703E Предложения

[Name]
Window regulator motor
5N0959703DVW2 Предложения

[Name] [Note] [Model info]
Window regulator motor left rear PR:4K3,4I2,
4F2,4I3
5N0959703D Предложения

[Name]
Window regulator motor
5N0959703EVW1 Предложения

[Name] [Note] [Model info]
Window regulator motor left rear PR:4K0,4F6
5N0959704D Предложения

[Name]
Window regulator motor
5N0959704E Предложения

[Name]
Window regulator motor
5N0959704DVW2 Предложения

[Name] [Note] [Model info]
Window regulator motor right rear PR:4K3,4I2,
4F2,4I3
5N0959704EVW1 Предложения

[Name] [Note] [Model info]
Window regulator motor right rear PR:4K0,4F6

Центральный блок управления систем комфорта

Схемы узла

Детали

Каталог

Ещё

Свяжитесь с нами
