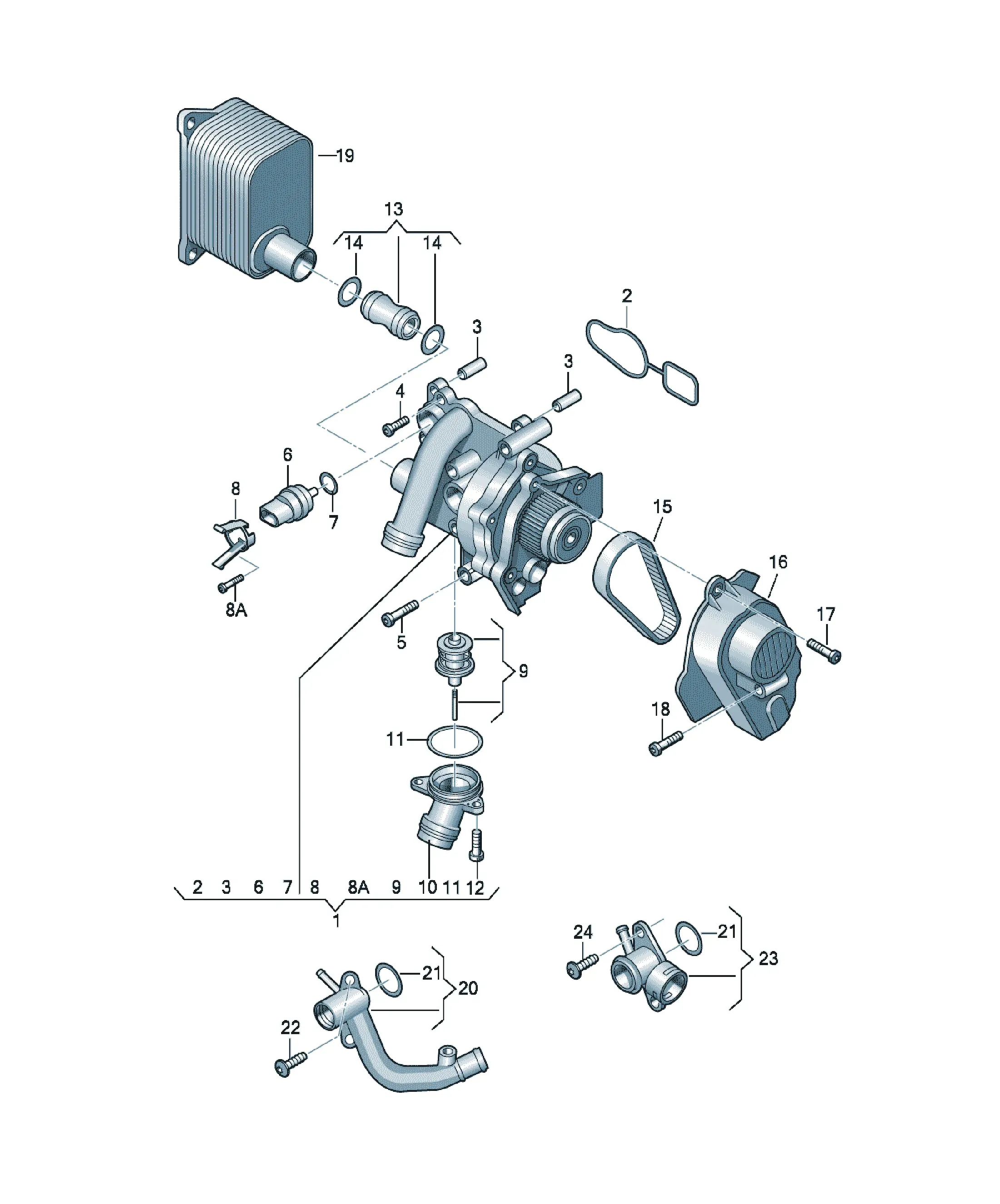

Система охлаждения

[Name] [Note] [QTY]

Coolant regulator with coolant pump 1

and

Coolant regulator housing

also use: N 107 002 02 1

Accompanying details: N 10700202

Replacements: 06H121026CF

Items supplied

06H121008N Bearing housing w/ pump wheel 1

N 10632003 Oval socket head bolt with hex drive M6X16 5

06H121111J Coolant regulator 1

06A919501A Coolant temperature sender 1

Coolant pump

N 90316801 O-ring 19,6X3,65 1

06H121142C retaining spring INZI 1

Potential individual parts

06J121119C seal ring 1

[Name] [Note] [QTY]

cover for thermostat BEHR 1

only for: 06J 121 026 G

06J 121 026 L

[Name] [Note] [QTY]

cover for thermostat INZI 1

only for: 06H 121 026 AB

06H 121 026 AF

06H 121 026 BA

Replacements: 06H121121L

[Name] [Note] [QTY]

O-ring BEHR 1

only for: 06J 121 026 G

06J 121 026 L

Replacements: 06J121119B

[Name] [Note] [QTY]

O-ring INZI 1

only for: 06H 121 026 AB

06H 121 026 AF

06H 121 026 BA

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 2

[Name] [Note] [QTY]

Socket head bolt with inner hex round head M6X16 1

[Name] [QTY]

union with seal 1

[Name] [Note] [QTY]

O-ring 16X3 2

[Name] [QTY]

toothed belt 1

[Name] [Note]

Toothed belt guard

see illustration, item: 103-010,33

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X12 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X30 1

[Name] [Note]

Oil cooler

see illustration, item: 115-015,14

[Name] [Note] [QTY]

seal ring 1

only for: 06H 121 026 BF

06H 121 026 CC

06H 121 026 CP

06H 121 026 DC

06H 121 026 DN

06H 121 026 DD

Replacements: 06H121119F

[Name] [Note] [QTY]

seal ring BEHR 1

only for: 06J 121 026 G

06J 121 026 L

06J 121 026 P

[Name]

Not for this model

[Name] [Note] [QTY]

O-ring 32X3 1

[Name]

Not for this model

[Name] [QTY]

water connection 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X20 2

[Name] [Note] [QTY]

Cylinder pin 6X12 2

[Name] [Note] [QTY]

round hd. screw M6X22 X

INZI

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X28 2

BEHR

[Name] [Note] [QTY]

round hd. screw M6X50 3

[Name] [QTY]

Coolant temperature sender 1

Replacements: 05C919501

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

[Name] [Note] [QTY]

retaining spring INZI 1

only for: 06H 121 026 AB

06H 121 026 AF

06H 121 026 BA

[Name] [Note] [QTY]

retaining spring BEHR 1

use if required: N 104 535 02

only for: 06J 121 026 G

06J 121 026 L

Accompanying details: N 10453502

[Name] [Note] [QTY]

fillister hd. bolt 5X10 1

BEHR

only for: 06J 121 026 G

06J 121 026 L

[Name] [Note] [QTY]

Coolant regulator 95 C-105 C 1

INZI

only for: 06H 121 026 AB

06H 121 026 AF

06H 121 026 BA

[Name] [Note] [QTY]

Coolant regulator 95 C-105 C 1

BEHR

only for: 06J 121 026 G

[Name] [Note] [QTY]

Coolant regulator 95 C-105 C 1

BEHR

only for: 06J 121 026 L
