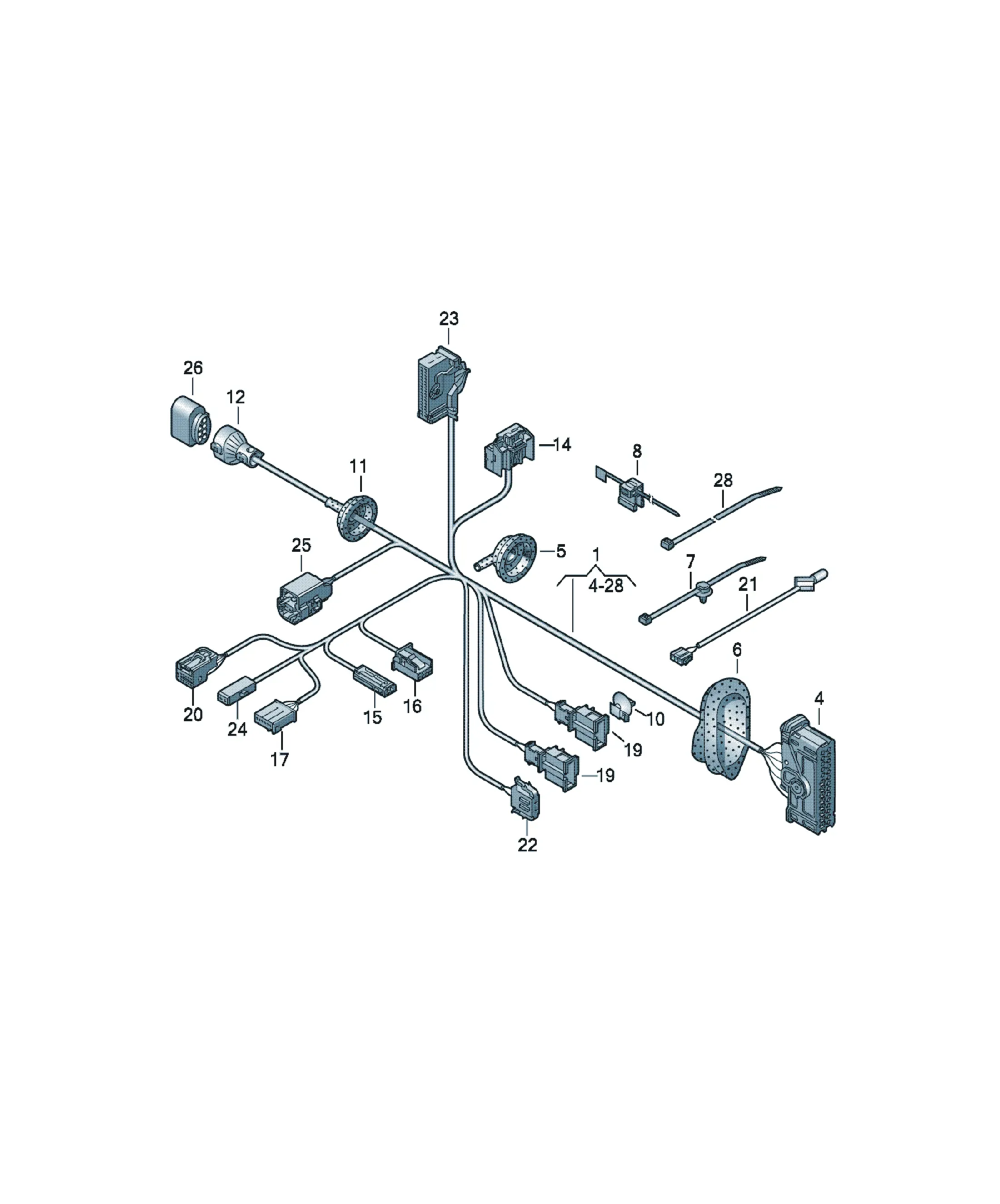

Жгут проводов двери

[Name] [Note] [QTY]

Protective cap 1

Flat contact housing 1J0 972 704 C

[Name] [Note] [QTY]

Wiring set for door lhd 1

For vehicles with KESSY (access and start auth.)

[Name] [QTY]

Wiring set for door 1

For vehicles with remote operated central locking and safe secure mode

[Name] [QTY]

Wiring set for door 1

For vehicles with remote operated central locking and safe secure mode

Digital sound system -DSP-

[Name] [QTY]

Wiring set for door 1

for models with radio remote control central locking system

[Name] [QTY]

Wiring set for door 1

for models with radio remote control central locking system

Digital sound system -DSP-

[Name] [Note] [QTY]

Wiring set for door lhd 1

For vehicles with remote operated central locking and safe secure mode

[Name] [Note] [QTY]

Wiring set for door lhd 1

For vehicles with remote operated central locking and safe secure mode

Digital sound system -DSP-

[Name] [Note] [QTY]

Wiring set for door lhd 1

for models with radio remote control central locking system

[Name] [Note] [QTY]

Wiring set for door lhd 1

for models with radio remote control central locking system

Digital sound system -DSP-

[Name] [Note] [QTY]

Wiring set for door rhd 1

[Name] [Note] [QTY]

Wiring set for door rhd 1

Digital sound system -DSP-

[Name] [Note] [QTY]

Wiring set for door lhd 1

For vehicles with KESSY (access and start auth.)

Digital sound system -DSP-

[Name] [Note] [Model info] [QTY]

Wiring set for door lhd "MEX" 1

For vehicles with KESSY (access and start auth.)

Digital sound system -DSP-

[Name] [Note] [Model info] [QTY]

Wiring set for door lhd "MEX" 1

For vehicles with KESSY (access and start auth.)

Digital sound system -DSP-

[Name] [Note] [QTY]

Wiring set for door rhd 1

For vehicles with KESSY (access and start auth.)

[Name] [Note] [QTY]

Wiring set for door rhd 1

Digital sound system -DSP-

For vehicles with KESSY (access and start auth.)

[Name] [QTY]

Wiring set for door 1

For vehicles with remote operated central locking and safe secure mode

[Name] [QTY]

Wiring set for door 1

For vehicles with remote operated central locking and safe secure mode

Digital sound system -DSP-

[Name] [QTY]

Wiring set for door 1

for models with radio remote control central locking system

[Name] [QTY]

Wiring set for door 1

for models with radio remote control central locking system

Digital sound system -DSP-

[Name] [Note] [QTY]

Wiring set for door lhd 1

[Name] [Note] [QTY]

Wiring set for door lhd 1

Digital sound system -DSP-

[Name] [Note] [QTY]

Wiring set for door rhd 1

[Name] [Note] [QTY]

Wiring set for door rhd 1

Digital sound system -DSP-

[Name] [Note] [QTY]

Wiring set for door left lhd 1

For vehicles with KESSY (access and start auth.)

[Name] [Note] [QTY]

Wiring set for door left lhd 1

Digital sound system -DSP-

For vehicles with KESSY (access and start auth.)

[Name] [Note] [QTY]

Wiring set for door right rhd 1

For vehicles with KESSY (access and start auth.)

[Name] [Note] [QTY]

Wiring set for door right rhd 1

Digital sound system -DSP-

For vehicles with KESSY (access and start auth.)

[Name] [QTY]

bracket for connector housing 1

[Name] [Note] [QTY]

Grommet 36,7/4,5 1

[Name] [QTY]

Bracket protective cover 1

Flat contact housing

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 20 pin 1

Door control unit

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

flat contact with retaining lug 0,5

4,8-6,3MM

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979243EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979308EC 1 set single wires each with 2 silver-plated contacts, in bag of 4 'Order qty. 4' X

-40C/+125C

with cable crosssection: 4,0

flat contact with retaining lug 4,8-6,3MM

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979425EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

LED light

mating connector

8E0972763 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979044EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 EA

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin X

black

For vehicles with KESSY (access and start auth.)

Possible single wire:

000979030E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 0,63

000979166E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,75

flat contact with retaining lug 0,63

000979166EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,75 X

-40C/+125C

flat contact with retaining lug 0,63

1S0971904A Sealing pin 0,63 X

8K0971904 Sealing pin 0,63 X

[Name] [Note] [QTY]

Flat contact housing 4 pin 1

Switch for electric window regulator black

(passenger side)

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [Model info] [QTY]

Flat contact housing 4 pin CODE 4 1

safety switch for central locking system blue

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 6 pin 1

brown

Switch for electric adjustable and heated exterior mirrors

mating connector

6Q0972716A Flat contact housing with contact locking mechanism 6 pin 1

brown

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 2 pin 1

Loudspeaker

mating connector

1H0972702A Flat contact housing 2 pin 1

black

1J0971972 flat connector housing 2 pin 1

black

Possible single wire:

000979041E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5

Flat male connector with detent lug 1,5

000979041EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5

Flat male connector with detent lug 1,5

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 10 pin 1

black

Switch for electric window regulator

mating connector

1K0972766 Flat contact housing with contact locking mechanism 10 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [QTY]

Cable holder 1

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

Bass loudspeaker

mating connector

1J0972712 Flat connector housing with contact locking mechanism 2 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

flat contact housing with cap 32 pin 1

Grey

Door control unit violet

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979044EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

LED, flashing

mating connector

1J0973332 Flat contact housing 2 pin 1

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

yellow

Lateral acceleration sensor -CRASHSENSOR- violet

Possible single wire:

000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979025FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

flat contact with retaining lug 0,5

1,5

(Copper wires galvanised)

000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 1,5

000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979255E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

Door lock black

(passenger side)

mating connector

3B0973813 Flat connector housing with contact locking mechanism 6 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

Door lock black

(passenger side)

D - 06.01.2009>>

mating connector

3B0973813 Flat connector housing with contact locking mechanism 6 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing 8 pin 1

Door lock black

(passenger side)

D >> - 05.01.2009

mating connector

1J0973814 Flat contact housing 8 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 10 pin 1

Door lock

(drivers side)

mating connector

6X0973815 Flat contact housing with contact locking mechanism 10 pin 1

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Cable ties 4,6X377 X

toothed quadrant outer

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 28 pin 1

Coupling element

A-pillar

mating connector

1K0937722D Flat contact housing with contact locking mechanism 28 pin 1

Grey

Possible single wire:

000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979025FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

(Copper wires galvanised)

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 1,5

000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

000979255E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [QTY]

Grommet 1

Door

[Name] [Note] [QTY]

Bellows narrow 2

Door

[Name] [Note] [QTY]

bellows with retaining frame Wide 1

Door

[Name] [Note] [QTY]

Cable ties 4,6X160 X

gasket for base plate

For hole/material thickness: 6,5 / 0,6-1,8

toothed quadrant outer

[Name] [Note] [QTY]

cable tie with terminal socket 4,6X200 X

With side cable guide

for bridge strength: 1-3MM

toothed quadrant outer

(Clamp base, rotating)
