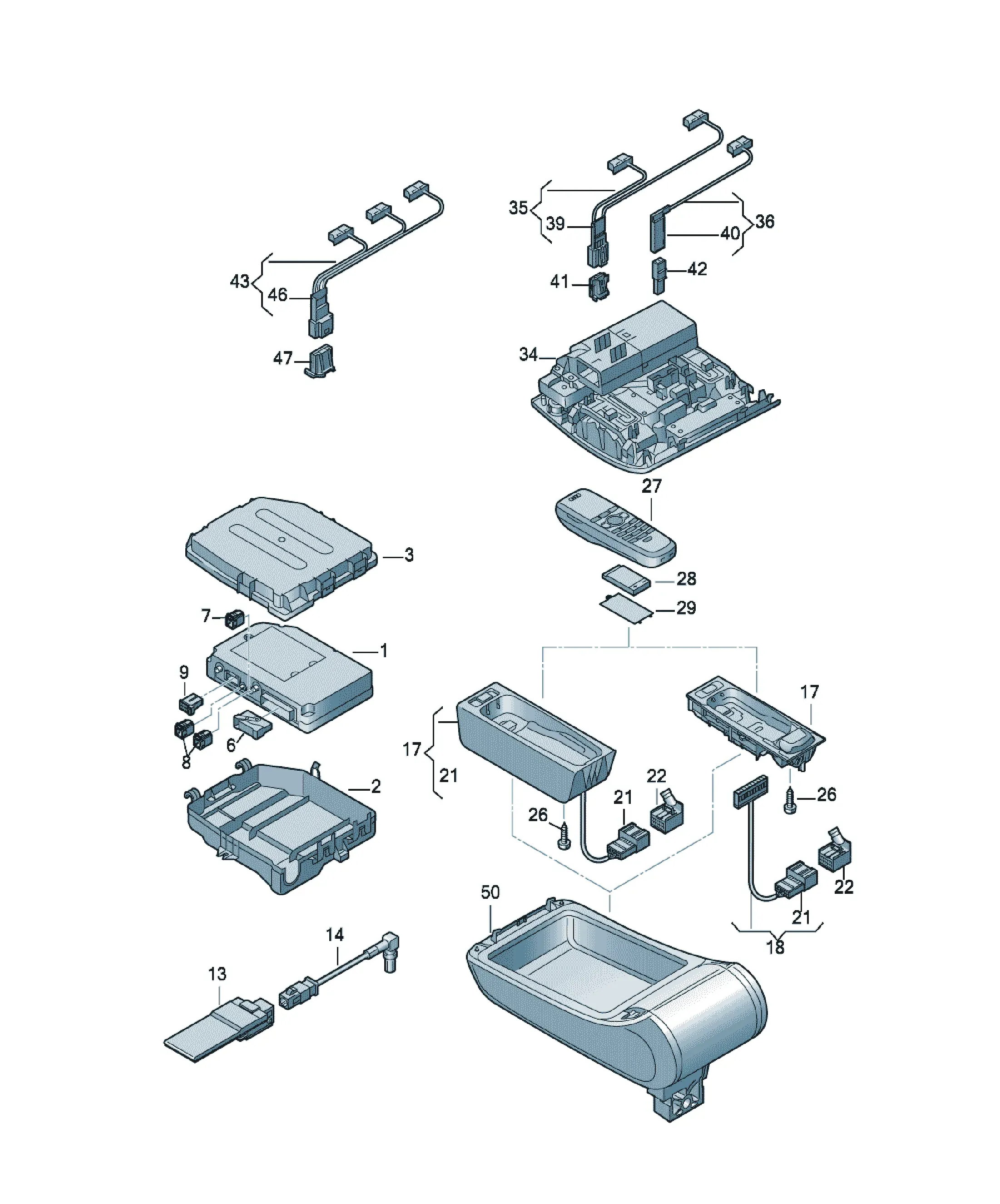

Mobile phone preparation kit

[Name] [Model info] [QTY]

Control unit for telephone

F 4F-5-095 001>>*4F-6-101 000* sedan 1

F 4F-6-000 001>> 4F-6-101 000* AVANT 1

[Name]

Control unit for telephone

F 4F-6-101 001>>*

[Name] [Note]

Aerial 'BLUETOOTH'

see illustration: 035-010

035-015

[Name] [Note]

adapter aerial wire

see catalogue: electr.connec- ting elements

[Name] [Note] [QTY]

Mounting for tel. receiver front 1

for model with telephone hand set in the centre armrest

D - 26.04.2004>>*

Accompanying details: 4F0864981B; N 10555702

[Name] [Note] [QTY]

Mounting for tel. receiver front 1

for model with telephone hand set in the centre armrest

also use: 4F0 864 981 B 1

N 105 557 02 2

D >> - 26.04.2004*

Accompanying details: 4F0864981B; N 10555702

[Name] [QTY]

wiring harness for telephone 1

for model with telephone hand set in the centre armrest

[Name] [QTY]

housing 1

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 12 pin 1

black

mating connector

8Z0972112 flat contact housing with cap 12 pin 1

black

Possible single wire:

000979012E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 0,63

counterpart to: 000 979 009 E

000979012EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 0,63

000979165E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

Flat male connector with detent lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 12 pin 1

black

mating connector

4F0972112 Flat contact housing with contact locking mechanism 12 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Hexagon socket flat head bolt 4X8 2

[Name] [Note] [QTY]

Telephone controls/receiver 'OHNE AKKU' 1

[Name] [QTY]

Battery 1

Telephone controls/receiver

[Name] [Note] [QTY]

Battery cover 1

Telephone controls/receiver

Included in position: 27

[Name] [QTY]

Cover 1

[Name] [Note]

interior light

see illustration: 947-000

[Name] [Note] [Model info] [QTY]

microphone rhd PR:9W0 1

for models with voice control '1 MIKROFONE'

[Name] [Note] [Model info] [QTY]

1 set microphones with wiring loom lhd "J.." 1

'2 MIKROFONE'

only to be used for: 4F1 035 711.C

[Name] [Note] [QTY]

1 set microphones with wiring loom rhd 1

'2 MIKROFONE'

only to be used for: 4F2 035 711.C

[Name] [Note] [Model info] [QTY]

1 set microphones with wiring loom rhd "J.." 1

'2 MIKROFONE'

only to be used for: 4F2 035 711.C

[Name] [Note] [QTY]

1 set microphones with wiring loom lhd 1

'2 MIKROFONE'

only to be used for: 4F1 035 711.C

[Name] [Note] [QTY]

microphone '1 MIKROFONE' 1

for vehicles with bose sound system

[Name] [Note] [Model info] [QTY]

microphone lhd PR:9W0 1

for models with voice control '1 MIKROFONE'

[Name] [Note] [QTY]

flat connector housing 4 pin 1

black

mating connector

8E0972754 Flat contact housing 4 pin 1

black

8K0973754 Flat contact housing 4 pin 1

black

Possible single wire:

000979012E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 0,63

counterpart to: 000 979 009 E

000979012EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 0,63

000979165E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

[Name] [Note] [QTY]

Flat contact housing 2 pin 1

Bracket insert sleeve housing black

[Name] [Note] [QTY]

Flat contact housing 4 pin 1

black

mating connector

8K0972994 flat connector housing 4 pin 1

black

Possible single wire:

000979018E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

000979018EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 2 pin 1

black

mating connector

8D0972623AA Flat contact housing with contact locking mechanism 2 pin 1

Possible single wire:

000979017E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 0,63

counterpart to: 000 979 018 E

[Name] [Note] [QTY]

flat contact housing with cap 42 pin 1

blue

Possible single wire:

000979010E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979010EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979010FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat insert sleeve with locking lug, Nyogel filled 0,63

(Copper wires galvanised)

000979014EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Removable housing for aerial female connector 1 point 1

mating connector

6Q0035575K Removable housing for aerial pin connector 1 point X

water blue

only to be used for: all colours

use if required aerial wire adapter:

000 098 692 X

Possible single wire:

Remove if required: 6Q0.035.576.K 1

------------------------------

000098650 Aerial connection line 300MM X

000098651 Aerial connection line 500MM X

000098652 Aerial connection line 1000MM X

000098652A Aerial connection line 1500MM X

000098653 Aerial connection line 2000MM X

000098653A Aerial connection line 2500MM X

000098654 Aerial connection line 3000MM X

000098654A Aerial connection line 3500MM X

000098655 Aerial connection line 4000MM X

000098655A Aerial connection line 4500MM X

000098656 Aerial connection line 5000MM X

000098656A Aerial connection line 5500MM X

000098657 Aerial connection line 6000MM X

000098657A Aerial connection line 6500MM X

000098658 Aerial connection line 7000MM X

000098658A Aerial connection line 7500MM X

000098659 Aerial connection line 8000MM X

000098703 aerial intermediate wire with earthing clip 300MM X

000098703A adapter aerial wire 300MM 1

[Name] [Note] [QTY]

Removable housing for aerial bracket female connector 1 point 1

[Name] [Note] [QTY]

flat connector 2 pin 1

fibre optic wave conductor black

mating connector

4E0973302 Coupling element 2 pin 1

flat connector black

fibre optic wave conductor

counterpart to: 4E0 973 702

4E0 973 202
