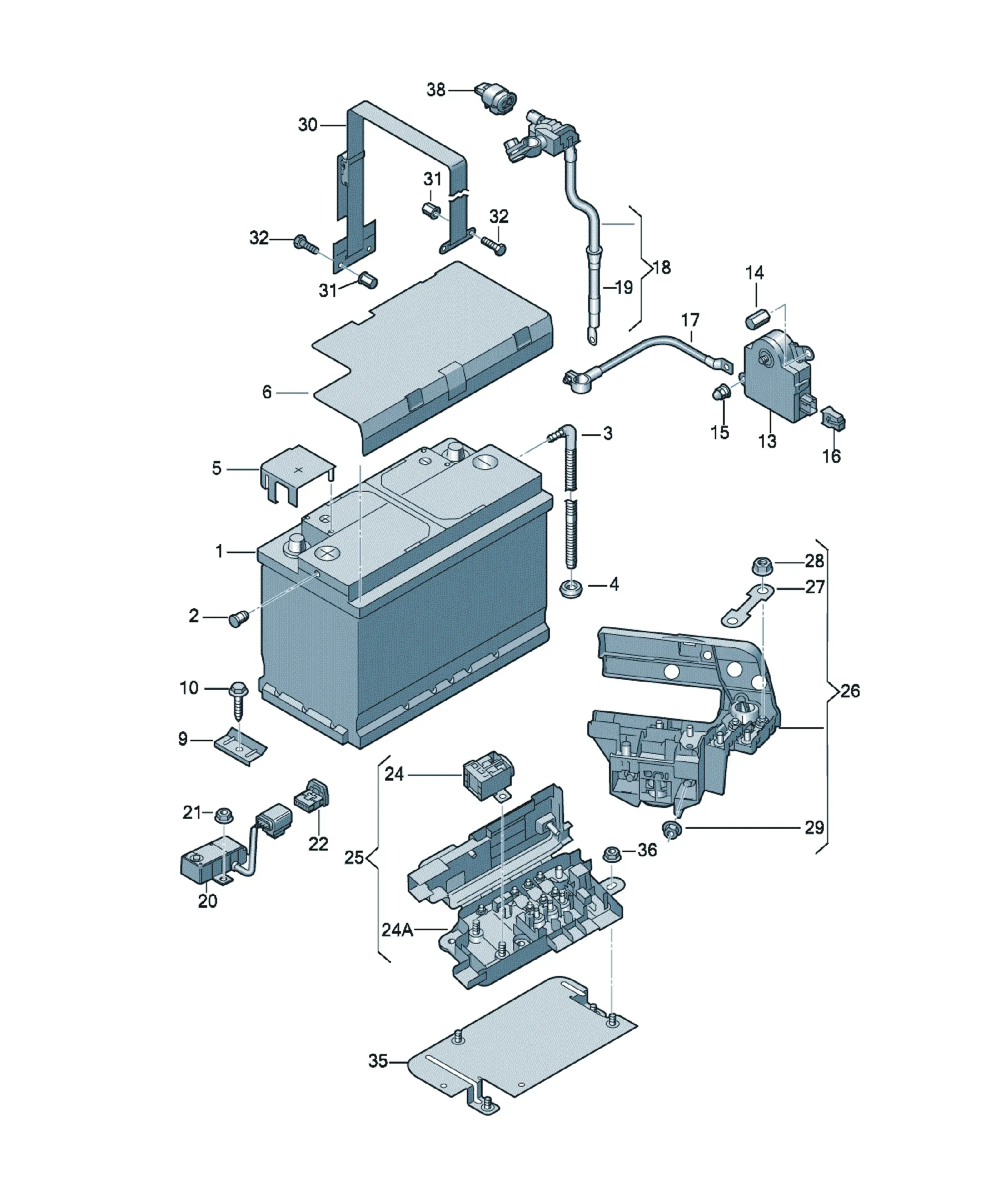

Battery

[Name] [Note] [QTY]

battery with charge state indicator, filled and charged 110AH/520A 1

Replacements: 000915089K

[Name] [Note] [QTY]

battery with charge state indicator, filled and charged 80AH/380A 1

Replacements: 000915089G

[Name] [Note] [QTY]

battery with charge state indicator, filled and charged 95AH/450A 1

Replacements: 000915089J

[Name] [Note] [QTY]

Battery, filled and charged 70AH/340A 1

Replacements: 000915089F

[Name] [Note] [QTY]

Hex collared bolt M8X25 1

[Name] [Note] [QTY]

Control unit for battery monitoring 1

with software: 4F0 910 181 F

[Name] [Note] [QTY]

Hexagon collar nut M8

F 4F-5-091 001>>* 1

[Name] [Note] [QTY]

domed cap nut M8 2

Replacements: WHT000869

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 14 pin 1

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 EA

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [QTY]

Wiring set for battery - 1

[Name] [QTY]

Bungs 1

[Name] [Note] [QTY]

Adapter cable loom 2 pin

F 4F-5-020 001>>* 1

[Name] [QTY]

Dividing element, pyrotechnic 1

F 4F-5-020 001>>*4F-6-250 000

Replacements: 4F0915519A

mating connector

1T0971613 Flat contact housing 2 pin 1

possible replacement yellow/green

3AA972571B flatcontact housing with cable 2 pin 1

yellow/orange

L=3344MM

8T0972571B flatcontact housing with cable 2 pin 1

Yellow/violet

L=4330MM

[Name] [Note] [QTY]

Main fuse socket

F >> 4F-6-250 000

see illustration, item: 972-000,3 1

[Name] [QTY]

Main fuse socket with battery overload protection trip switch 1

F >> 4F-6-250 000

mating connector

8T0972571B flatcontact housing with cable 2 pin 1

Yellow/violet

L=4330MM

[Name] [QTY]

corrugated pipe 1

[Name] [QTY]

Holding strap

Battery

F 4F-6-150 001>>* 1

[Name] [QTY]

Holding strap

Battery

F 4F-5-091 001>>*4F-6-150 000* 1

[Name] [Note] [QTY]

rivetted cap nut with sealing washer M8X0,8-3

F 4F-5-091 001>>*4F-6-150 000* 4

[Name] [Note] [QTY]

rivetted cap nut with sealing washer M8X0,8-3

upper rear

F 4F-6-150 000>>* 2

[Name] [Note] [QTY]

rivetted cap nut M8X0,5-3

lower front

F 4F-6-150 000>>* 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X22

F 4F-5-091 001>>* X

[Name] [Note] [QTY]

Grommet 16,5 1

[Name] [QTY]

Pole cover cap

F >> 4F-6-250 000 1

[Name] [Note] [QTY]

Cover cap

F 4F-5-091 001>>* 70AH,80AH 1

[Name] [Note] [QTY]

Cover cap

F 4F-5-091 001>>* 95AH,110AH, 1

92AH

[Name] [QTY]

clamping strip for battery 1
