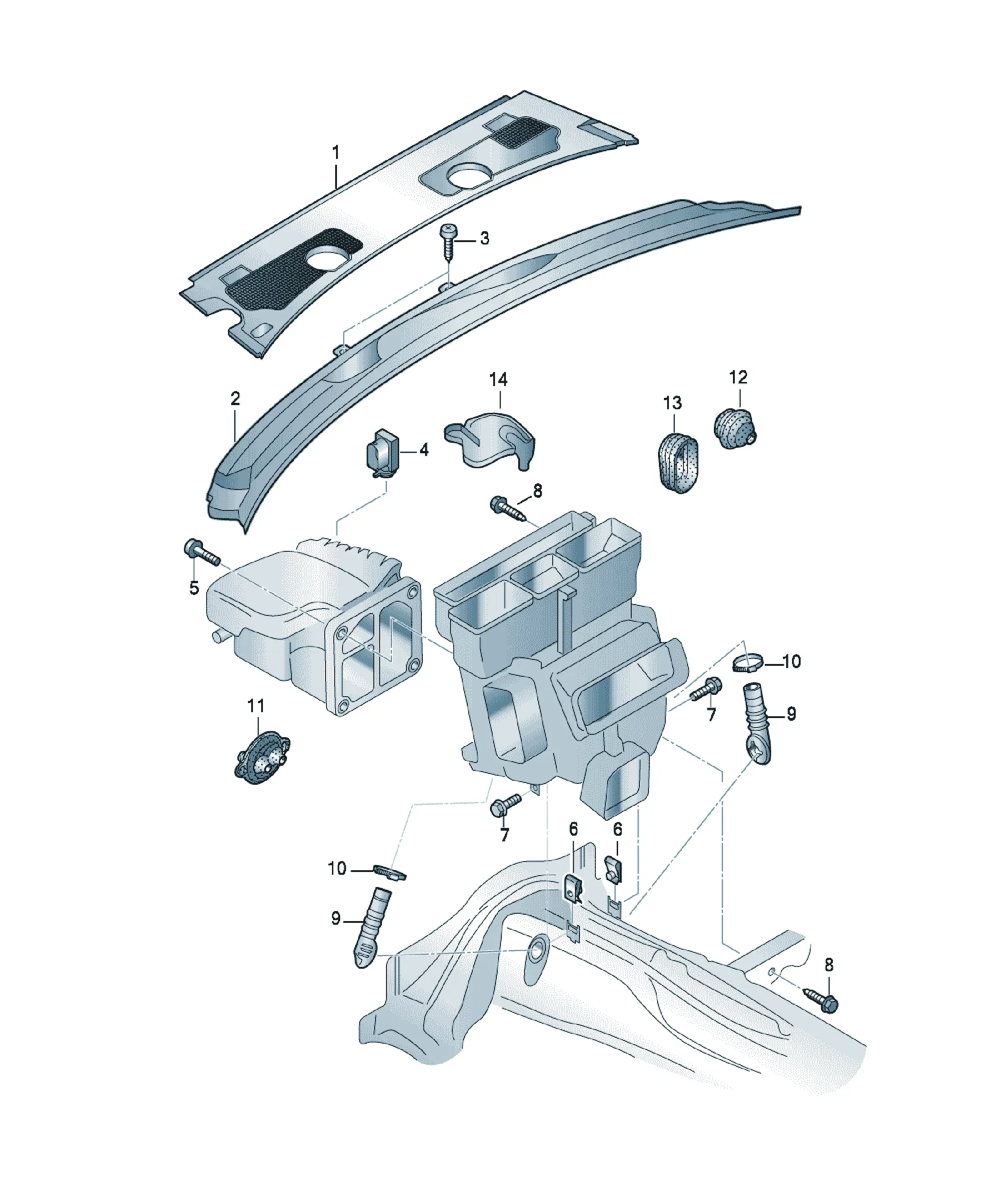

Water deflector

Assembly diagrams

5 diagrams

23 parts

4F1819447A Offers

[Name] [Note] [QTY]
Cover front LHD 1
water box
4F1819447A01C Offers

[Name]
Satin black
4F2819447A Offers

[Name] [Note] [QTY]
Cover left rhd 1
water box
4F2819447A01C Offers

[Name]
Satin black
N10095101 Offers

[Name] [Note] [QTY]
Clamp 8X17 2
4F0819699B Offers

[Name] [QTY]
Double grommet 1
4F0819699C Offers

[Name] [QTY]
Double grommet 1
4F0260753B Offers

[Name] [QTY]
Grommet 1
4F2819979A01C Offers

[Name]
Satin black
4F0819979A Offers

[Name] [Note] [QTY]
rain channel lhd 1
4F0819979A01C Offers

[Name]
Satin black
4F2819979A Offers

[Name] [Note] [QTY]
rain channel rhd 1
4F2819403B01C Offers

[Name]
Satin black
4F1819403A01C Offers

[Name]
Satin black
4F2819403B Offers

[Name] [Note] [QTY]
Cover front RHD 1
water box
4F1819403A Offers

[Name] [Note] [QTY]
Cover front LHD 1
water box
N91120001 Offers

[Name] [Note] [QTY]
fillister head bolt with allen key head 5X16 2
4B0907659A Offers

[Name] [QTY]
Air quality sensor 1
mating connector
1J0972483A flat contact housing with gasket 3 pin 1
black/grey
Possible single wire: X
MICRO QUADLOK SYSTEM
N10555101 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M6X35 4
N90356203 Offers

[Name] [Note] [QTY]
Speed nut M5X16,6X17 4
N90438805 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M5X15 4
N90992901 Offers

[Name] [Note] [QTY]
bolt, hex. hd. with shoulder and shaft M6X18
F >> 4F-6-250 000* 4
4F0260113 Offers

[Name] [QTY]
Coolant hose with valve 2
