Sensors

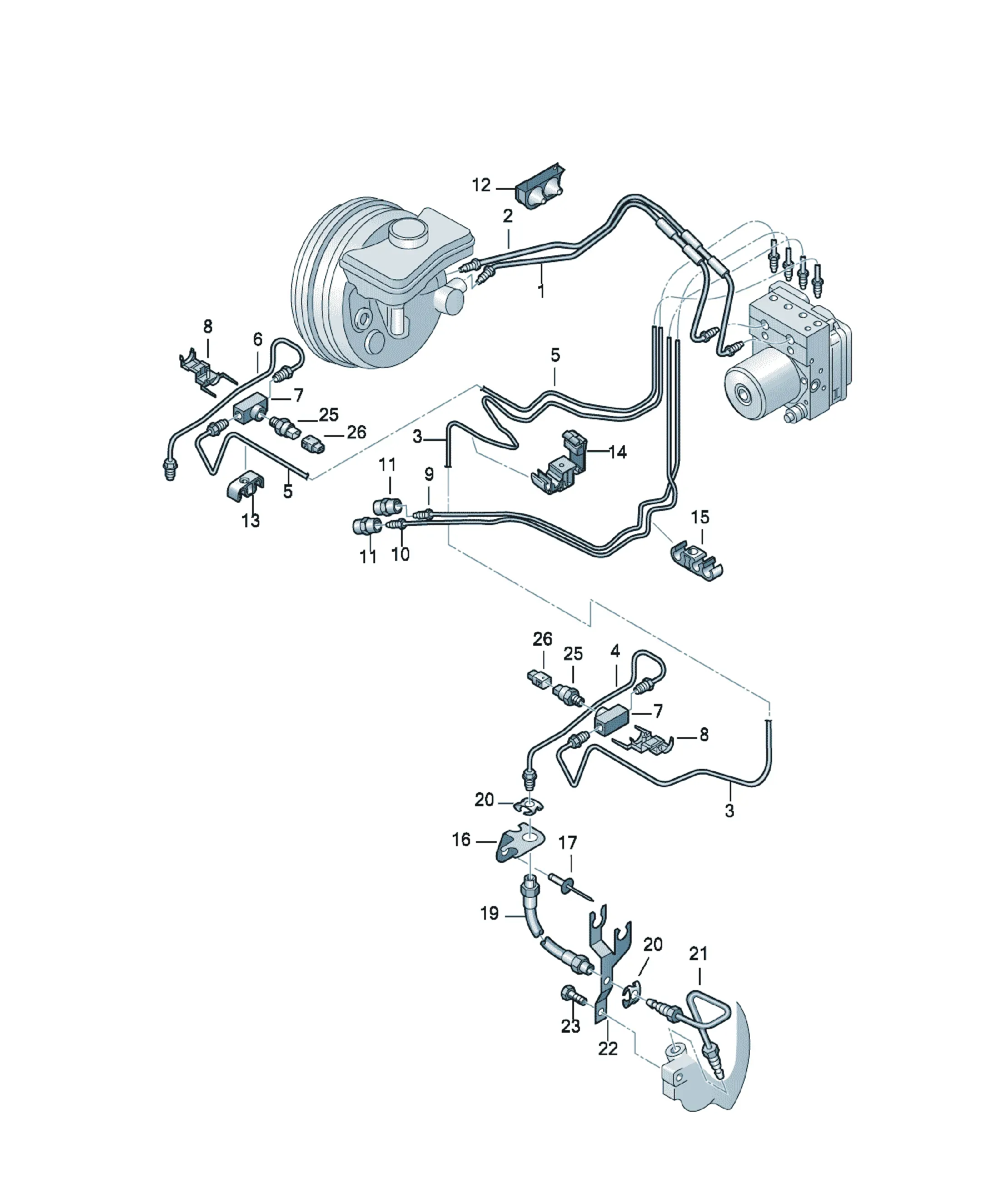

Brake line

Assembly diagrams

5 diagrams

Parts

55 parts

Кабельная стяжка
N0209022 Offers

[Name] [Note] [Model info] [QTY]
Cable ties 3,6X246 S6 1
rhd
Replacements: N 10647801
Зубчатый диск
8E0130722D Offers

[Name] [Note] [Model info] [QTY]
toothed lock washer ZC10X20X20 S6 1
right
4F1614705Q Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics
F >> 4F-8-068 000* lhd S6 1
Replacements: 4F1614705AA
4F2614705E Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics rhd S6 1
Replacements: 4F2614705G
4F2614705D Offers

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics rhd 1
Replacements: 4F2614705F
4F1614705B Offers

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics
F >> 4F-8-068 000* lhd 1
Replacements: 4F1614705T
4F0614726J Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from hydraulics to connecting piece right S6 1
Replacements: 4F0614726M
4F0614726G Offers

[Name] [Note] [QTY]
Brake pipe from hydraulics to connecting piece right 1
Replacements: 4F0614726K
4F0611789C Offers

[Name] [Note] [QTY]
Connecting piece M10X1 2
Replacements: 4F0611789E
4F0614769D Offers

[Name] [QTY]
Grommet 1
1J0611797 Offers

[Name] [Note] [QTY]
Retainer for brake pipe 2 point 6
Replacements: 8K0611797D
8D0611797G Offers

[Name] [Note] [QTY]
Bracket 2 point 1
1K0611797A Offers

[Name] [Note] [QTY]
Brake line bracket 3 point 2
Replacements: 8K0611797A
8E0611845K Offers

[Name] [Note] [QTY]
Retainer for brake hose left 1
8E0611846G Offers

[Name] [Note] [QTY]
Retainer for brake hose
F >> 4F-7-045 000* right 1
Replacements: 8E0611846K
8E0611846K Offers

[Name] [Note] [QTY]
Retainer for brake hose
F 4F-6-045 001>>* right 1
N90751302 Offers

[Name] [Note] [QTY]
Pop rivet 4,8X11X14,3 2
4F0611707B Offers

[Name] [Note] [QTY]
Brake hose M10X1X315MM 2
4F1614706Q Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics
F >> 4F-8-068 000* lhd S6 1
Replacements: 4F1614706AA
4F1614706C Offers

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics
F >> 4F-8-068 000* lhd 1
Replacements: 4F1614706T
4F2614706E Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from brake master cylinder to hydraulics rhd S6 1
use if required: 8E0 130 722 D 1
N 020 902 2 1
Accompanying details: 8E0130722D; N 0209022
4F2614706D Offers

[Name] [Note] [QTY]
Brake pipe from brake master cylinder to hydraulics rhd 1
Replacements: 4F2614706F
4D0611715B Offers

[Name] [QTY]
retaining spring 4
4F0611721A Offers

[Name] [Note] [Model info] [QTY]
Brake pipe left PR:1LL,1LJ 1
4F0611722C Offers

[Name] [Note] [Model info] [QTY]
Brake pipe right PR:1LG,1LD 1
8E0611722B Offers

[Name] [Note] [Model info] [QTY]
Brake pipe right PR:1LT 1
4F0611722A Offers

[Name] [Note] [Model info] [QTY]
Brake pipe right PR:1LL,1LJ 1
8E0611722F Offers

[Name] [Note] [Model info] [QTY]
Brake pipe right PR:1ZL,1LH 1
8E0611721B Offers

[Name] [Note] [Model info] [QTY]
Brake pipe left PR:1LT 1
4F0611721C Offers

[Name] [Note] [Model info] [QTY]
Brake pipe left PR:1LG,1LD 1
8E0611721F Offers

[Name] [Note] [Model info] [QTY]
Brake pipe left PR:1ZL,1LH 1
8E0615134F Offers

[Name] [Note] [Model info] [QTY]
Bracket right PR:1ZL,1LH 1
4B0615133F Offers

[Name] [Note] [Model info] [QTY]
Bracket left PR:1LT 1
4B0615133G Offers

[Name] [Note] [Model info] [QTY]
Bracket left PR:1LG,1LD 1
4F0615133 Offers

[Name] [Note] [Model info] [QTY]
Bracket left PR:1LL,1LJ 1
8E0615133F Offers

[Name] [Note] [Model info] [QTY]
Bracket left PR:1ZL,1LH 1
4B0615134F Offers

[Name] [Note] [Model info] [QTY]
Bracket right PR:1LT 1
4B0615134G Offers

[Name] [Note] [Model info] [QTY]
Bracket right PR:1LG,1LD 1
4F0615134 Offers

[Name] [Note] [Model info] [QTY]
Bracket right PR:1LL,1LJ 1
N01023714 Offers

[Name] [Note] [Model info] [QTY]
Hexagon bolt M8X12
F >> 4F-6-250 000 PR:1LG,1ZL, 2
1LD,1LH
N90995301 Offers

[Name] [Note] [Model info] [QTY]
Oval hexagon socket head bolt M8X12
F >> 4F-6-250 000 PR:1LL,1LJ 2
Replacements: N 90995303
N01020812 Offers

[Name] [Note] [Model info] [QTY]
Hexagon bolt M6X8 PR:1LT 2
4F0907597A Offers

[Name] [QTY]
Pressure sensor 2
4B0972883A Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 3 pin 2
Grey
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
4F0614723AB Offers

[Name] [Note] [Model info] [QTY]
brake line from hydraulic system to junction left S6 1
Replacements: 4F0614723AG
4F0614723A Offers

[Name] [Note] [QTY]
brake line from hydraulic system to junction
F >> 4F-6-170 000* left 1
Replacements: 4F0614723M
4F0614723T Offers

[Name] [Note] [QTY]
brake line from hydraulic system to junction
F 4F-6-170 001>>* left 1
Replacements: 4F0614723AE
4F0614771M Offers

[Name] [Note] [QTY]
brake line from t-piece to brake hose left 1
Replacements: 4F0614771N
4F0614724AB Offers

[Name] [Note] [Model info] [QTY]
brake line from hydraulic system to junction
F >> 4F-7-145 000* right S6 1
Replacements: 4F0614724AD
4F0614724A Offers

[Name] [Note] [QTY]
brake line from hydraulic system to junction
F >> 4F-6-170 000* right 1
Replacements: 4F0614724M
4F0614772M Offers

[Name] [Note] [QTY]
brake line from t-piece to brake hose right 1
Replacements: 4F0614772N
4F0611755L Offers

[Name] [Note] [QTY]
distributor for brake line 3 point 1
4F0611797A Offers

[Name] [QTY]
Bracket 1
4F0614725J Offers

[Name] [Note] [Model info] [QTY]
Brake pipe from hydraulics to connecting piece left S6 1
Replacements: 4F0614725M
4F0614725K Offers

[Name] [Note] [QTY]
Brake pipe from hydraulics to connecting piece left 1
