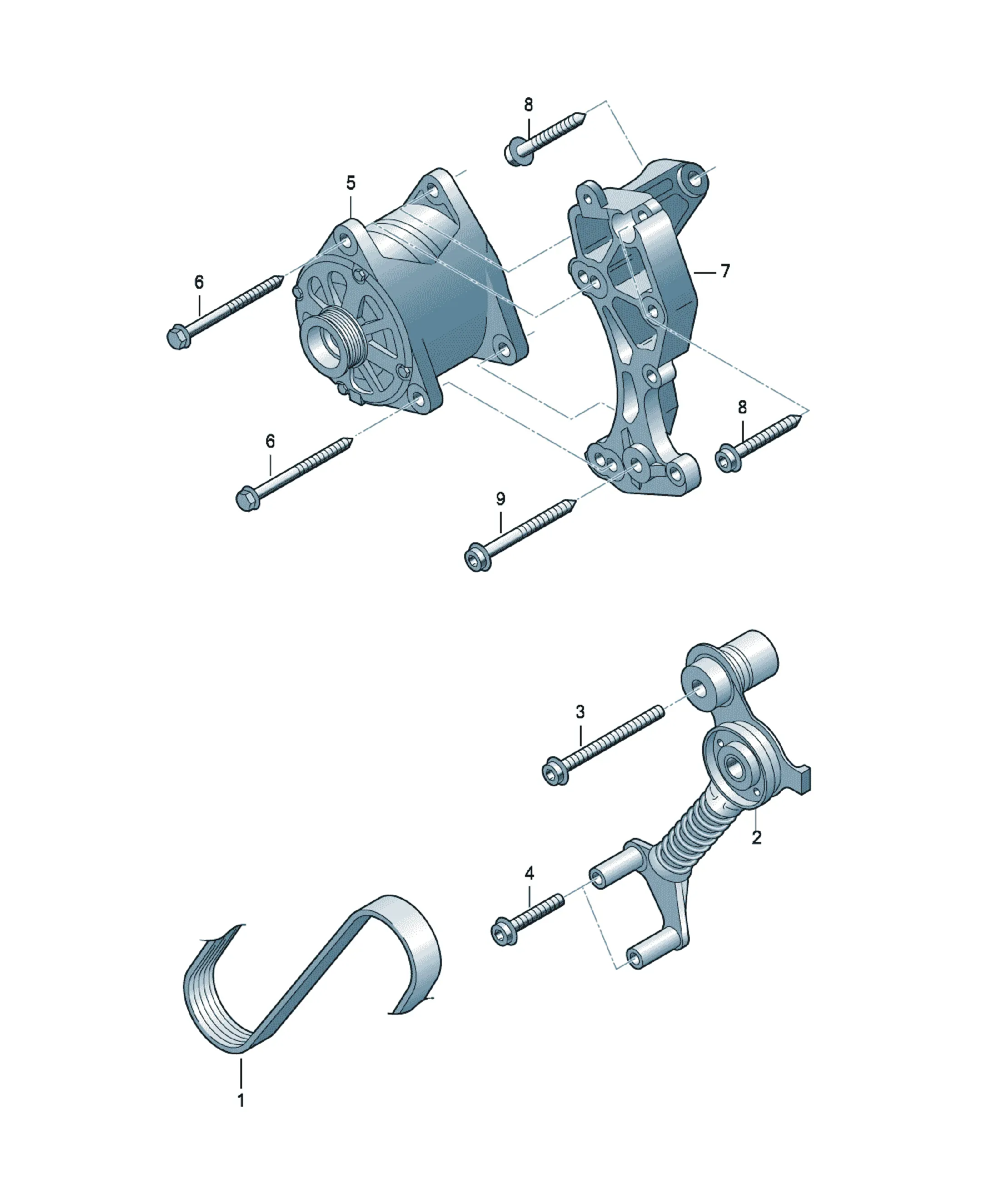

Alternator bracket and drive

[Name] [QTY]

Protective cap 1

idler pulley

Belt tensioner damper

[Name] [Note] [QTY]

Poly-V-belt 21,36X1920MM 1

[Name] [QTY]

Belt tensioner damper 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M10X105 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M8X65 2

[Name] [Note]

Alternator

see illustration, item: 903-000,1

[Name] [Note] [QTY]

Hex collared bolt M8X90 2

[Name] [QTY]

bracket for alternator 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X35 3

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X80 1
