Alternator

Alternator drive

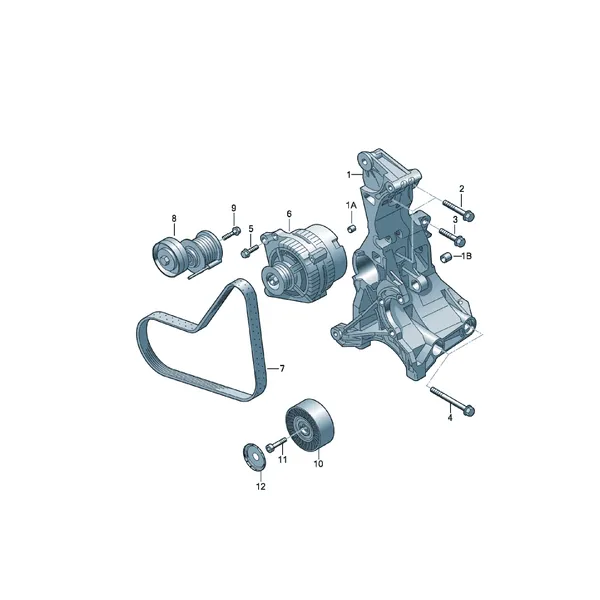

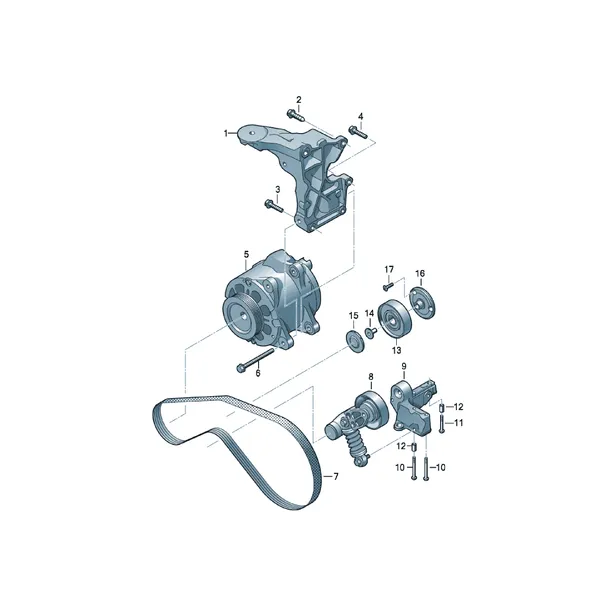

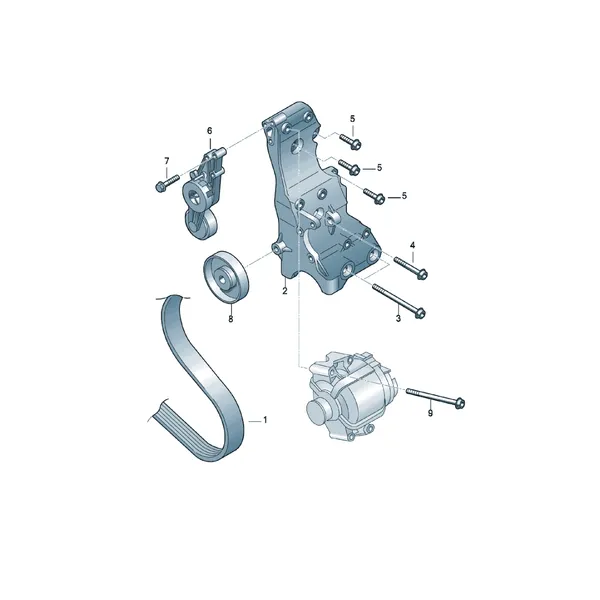

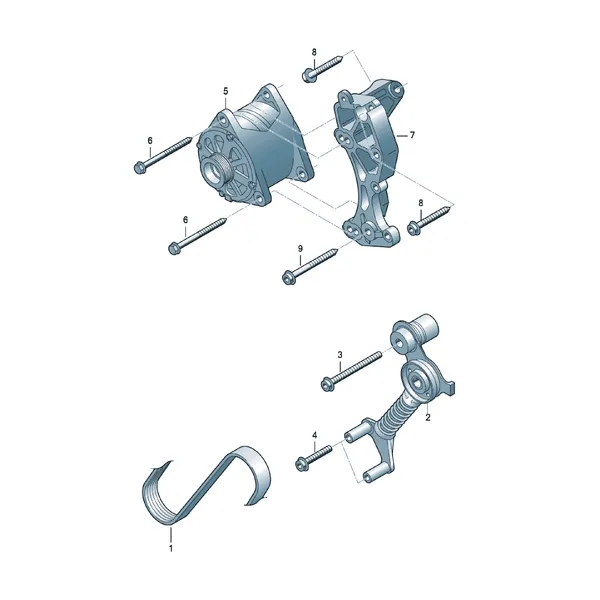

Assembly diagrams

6 diagrams

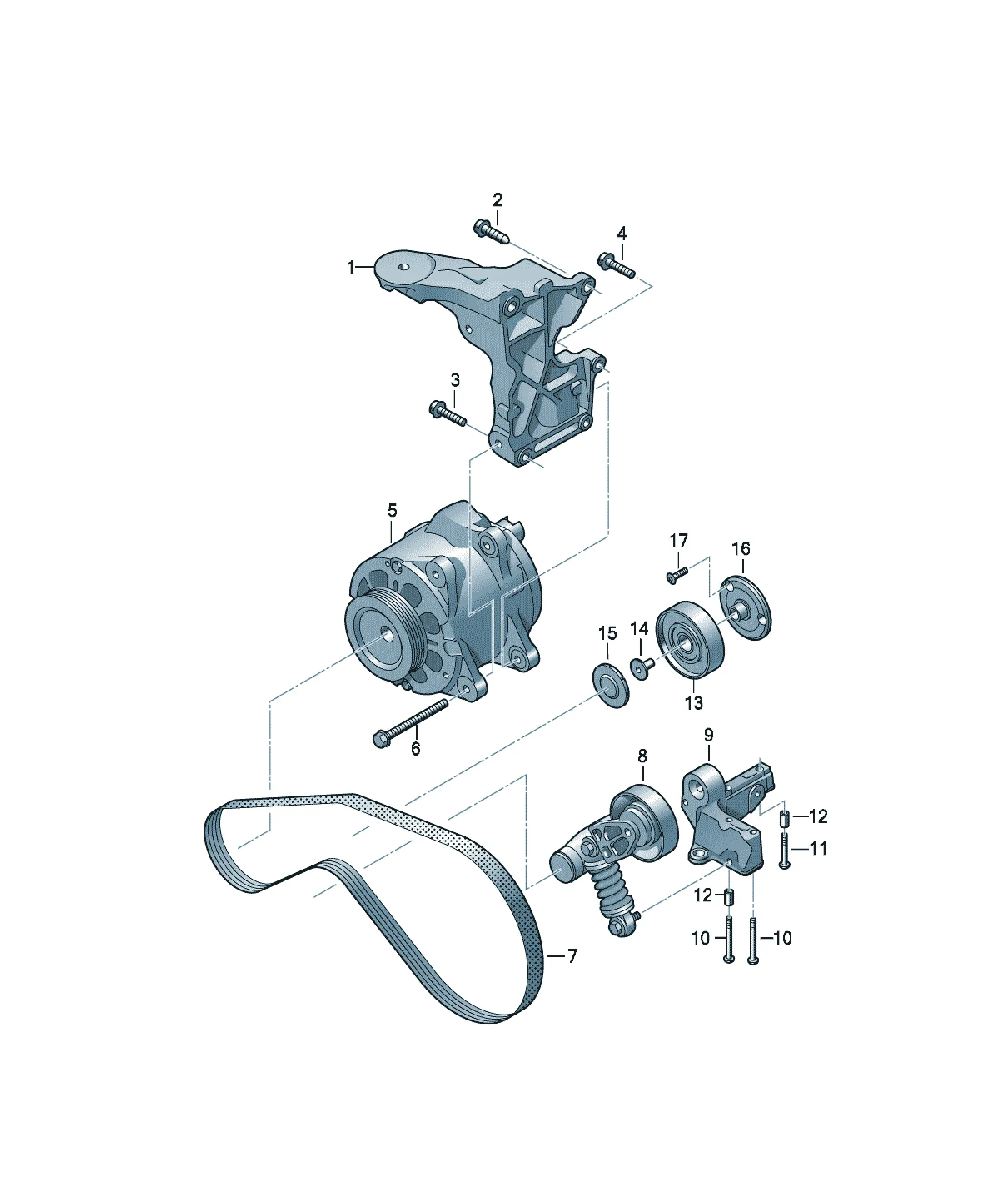

Alternator drive diagram

Parts

18 parts

Центрирующая втулка
077115143D Offers

[Name] [Note] [QTY]
Centre sleeve 10,4X12X12 2
079903805AD Offers

[Name] [QTY]
bracket for alternator 1
N10470703 Offers

[Name] [Note] [QTY]
round hd. screw M6X50 3
N10554005 Offers

[Name] [Note] [QTY]
round hd. screw M6X35 1
N90424901 Offers

[Name] [Note] [QTY]
spring pin 8X14 2
079903341F Offers

[Name] [QTY]
idler pulley 1
WHT001100 Offers

[Name] [Note] [QTY]
round hd. screw M8X13X17 1
079903343 Offers

[Name] [QTY]
Protective cap 1
079903417D Offers

[Name] [QTY]
BRACKET FOR idler pulley 1
N10505404 Offers

[Name] [Note] [QTY]
Countersunk oval bolt with hexagon socket head M6X20 2
N91108501 Offers

[Name] [Note] [QTY]
Socket head collared bolt with inner multipoint head M10X60 2
N10544903 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X55 1
N91104601 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X35 2
[Name] [Note]
Alternator
see illustration, item: 903-005,1
N10610001 Offers

[Name] [Note] [QTY]
Hex collared bolt M8X90 2
079903137T Offers

[Name] [Note] [QTY]
Poly-V-belt 17,8X1137MM 1
079903133AL Offers

[Name] [QTY]
tensioning roller with securing parts 1
079903447M Offers

[Name] [QTY]
bracket for belt tensioning- damper 1
