Synchronizer ring

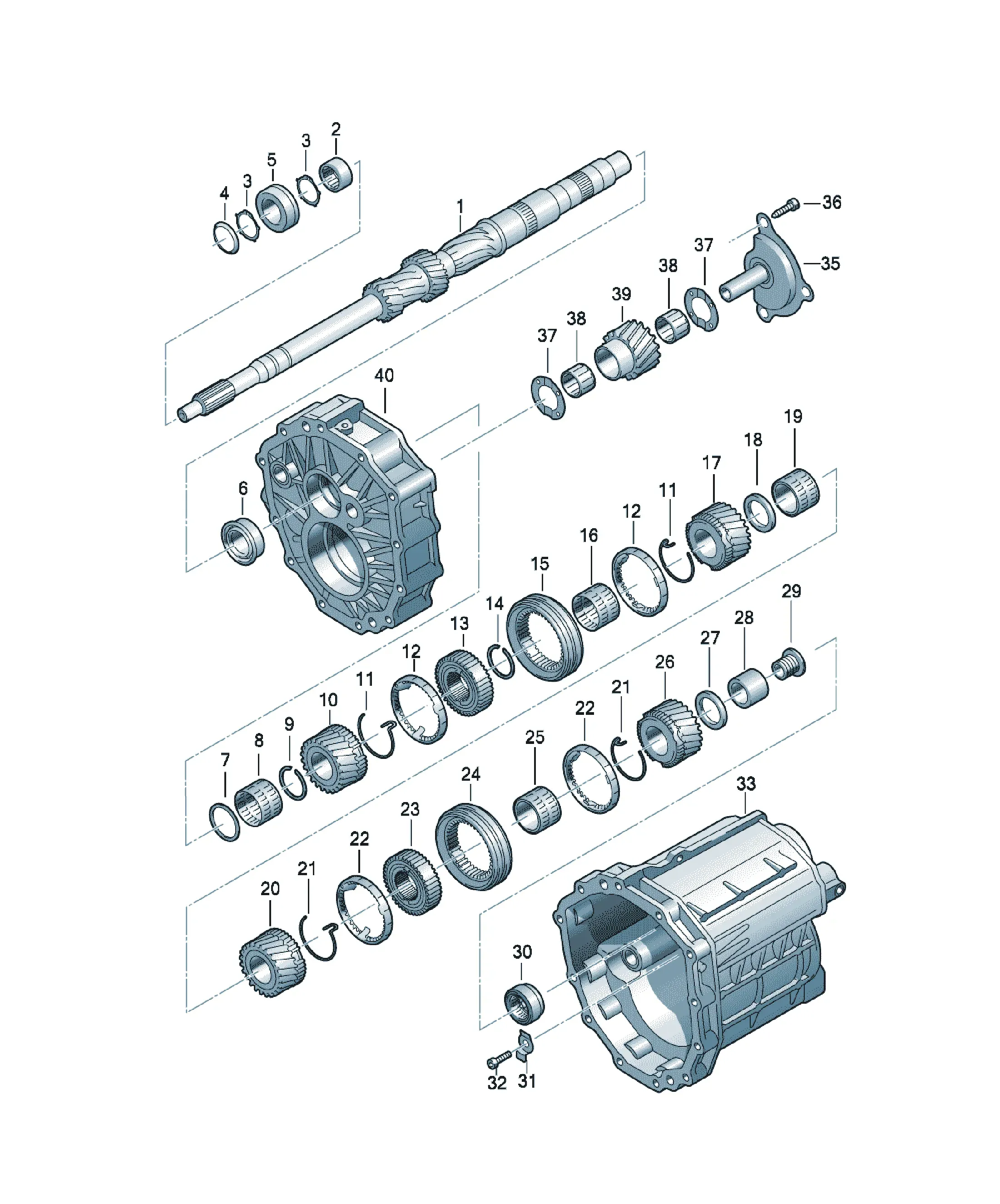

Input shaft

Assembly diagrams

6 diagrams

Parts

81 parts

01X311105B Offers

[Name] [Note] [Model info] [QTY]
Input shaft Z=10/20 GMV 1
01X311105 Offers

[Name] [Note] [QTY]
Input shaft Z=9+19 1
01X311105 Offers

[Name] [Note] [Model info] [QTY]
Input shaft Z=9/19 HGV 1
01X311131A Offers

[Name] [Note] [Model info] [QTY]
change gear 3.gear GYF,GYX 1
Z=37/27
01X311131A Offers

[Name] [Note] [Model info] [QTY]
change gear 3.gear HGV 1
Z=37/27
01X311131C Offers

[Name] [Note] [Model info] [QTY]
change gear 3.gear GMV 1
Z=36/28
01X311131 Offers

[Name] [Note] [Model info] [QTY]
change gear 3.gear GVC 1
Z=37/26
01X311312A Offers

[Name] [Note] [QTY]
securing spring 3./4.gear 2
01X311295P Offers

[Name] [Note] [QTY]
synchronizer ring 3.gear 1
01X311295J Offers

[Name] [Note] [QTY]
synchronizer ring 4-speed 1
01X311309 Offers

[Name] [Note] [QTY]
synchronizing hub 3./4.gear 1
01X311187D Offers

[Name] [Note] [QTY]
Securing ring 37X2,02 1
01X311187 Offers

[Name] [Note] [QTY]
Securing ring 37X1,9 1
01X311187B Offers

[Name] [Note] [QTY]
Securing ring 37X1,96 1
01X311187C Offers

[Name] [Note] [QTY]
Securing ring 37X1,99 1
01X311187A Offers

[Name] [Note] [QTY]
Securing ring 37X1.93 1
01X311187E Offers

[Name] [Note] [QTY]
Securing ring 37X2,05 1
01X311315B Offers

[Name] [Note] [QTY]
Sliding sleeve 3./4.gear 1
01X311315B Offers

[Name] [Note] [QTY]
Sliding sleeve 3./4.GANG 1
012311115F Offers

[Name] [Note] [QTY]
Needle cage 4-speed 1
37X42X29,8
01X311149E Offers

[Name] [Note] [Model info] [QTY]
change gear 4-speed GVC 1
Z=33/31
01X311149C Offers

[Name] [Note] [Model info] [QTY]
change gear 4-speed GYF,GYX 1
Z=32/31
01X311149C Offers

[Name] [Note] [Model info] [QTY]
change gear 4-speed HGV 1
Z=32/31
01X311149G Offers

[Name] [Note] [Model info] [QTY]
change gear 4-speed GMV 1
Z=33/31
WHT000219A Offers

[Name] [Note] [QTY]
thrust washer 32X51X5,07 1
01X311122A Offers

[Name] [Note] [QTY]
Needle cage 4-speed 1
32X43X31,57
012311123D Offers

[Name] [Note] [QTY]
Needle bush 27X41X23 1
01X311159A Offers

[Name] [Note] [Model info] [QTY]
change gear 5-speed HGV 1
Z=28/35
01X311159C Offers

[Name] [Note] [Model info] [QTY]
change gear 5-speed GVC 1
Z=29/34
01X311362B Offers

[Name] [Note] [Model info] [QTY]
change gear 5-speed GYF 1
Z=29/35
01X311159A Offers

[Name] [Note] [Model info] [QTY]
change gear 5-speed GYX 1
Z=28/35
01X311159E Offers

[Name] [Note] [Model info] [QTY]
change gear 5-speed GMV 1
Z=27/36
01X311312A Offers

[Name] [Note] [QTY]
securing spring 5th/6th gear 2
01X311295J Offers

[Name] [Note] [QTY]
synchronizer ring 5th/6th gear 2
01X311244 Offers

[Name] [Note] [QTY]
synchronizing hub 5th/6th gear 1
01X311315B Offers

[Name] [Note] [QTY]
Sliding sleeve 5th/6th gear 1
01X311127A Offers

[Name] [Note] [QTY]
Needle cage 6th gear 1
29X43X31,55
01X311362E Offers

[Name] [Note] [Model info] [QTY]
change gear 6th gear GYF 1
Z=26/37
01X311362D Offers

[Name] [Note] [Model info] [QTY]
change gear 6th gear GMV 1
Z=25/39
01X311362A Offers

[Name] [Note] [Model info] [QTY]
change gear 6th gear HGV 1
Z=25/38
01X311362D Offers

[Name] [Note] [Model info] [QTY]
change gear 6th gear GYX 1
Z=25/39
01X311362F Offers

[Name] [Note] [Model info] [QTY]
change gear 6th gear GVC 1
Z=27/37
01X311154A Offers

[Name] [QTY]
thrust washer 1
01X311126 Offers

[Name] [Note] [QTY]
inner ring 24X34X22 1
WHT003313 Offers

[Name] [QTY]
Flat head multi-point socket bolt 1
Replacements: WHT007675
N90294127 Offers

[Name] [Note] [QTY]
Securing ring 24,9X2,8 X
N90294118 Offers

[Name] [Note] [QTY]
Securing ring 24,9X1,9 X
N90294117 Offers

[Name] [Note] [QTY]
Securing ring 24,9X1,81 X
N90294116 Offers

[Name] [Note] [QTY]
Securing ring 24,9X1,72 X
N90294126 Offers

[Name] [Note] [QTY]
Securing ring 24,9X2,71 X
N90294114 Offers

[Name] [Note] [QTY]
Securing ring 24,9X1,54 X
N90294119 Offers

[Name] [Note] [QTY]
Securing ring 24,9X1,99 X
N90294115 Offers

[Name] [Note] [QTY]
Securing ring 24,9X1,63 X
N90294120 Offers

[Name] [Note] [QTY]
Securing ring 24,9X2,08 X
N90294122 Offers

[Name] [Note] [QTY]
Securing ring 24,9X2,35 X
N90294123 Offers

[Name] [Note] [QTY]
Securing ring 24,9X2,44 X
N90294124 Offers

[Name] [Note] [QTY]
Securing ring 24,9X2,53 X
N90294125 Offers

[Name] [Note] [QTY]
Securing ring 24,9X2,62 X
N90294111 Offers

[Name] [Note] [QTY]
Securing ring 24,9X2,17 X
N90294128 Offers

[Name] [Note] [QTY]
Securing ring 24,9X2,89 X
N90294121 Offers

[Name] [Note] [QTY]
Securing ring 24,9X2,26 X
01X311139 Offers

[Name] [Note] [QTY]
roller sleeve 34,5X50,5X26,1 1
[Name] [Note]
Retaining plate
see illustration: 301-035
[Name] [Note]
Retaining plate
see illustration: 301-070
[Name] [Note]
Hexagon socket head bolt
see illustration: 301-035
[Name] [Note]
Hexagon socket head bolt
see illustration: 301-070
[Name] [Note]
Gearbox cover
see illustration: 301-035
[Name] [Note]
Gearbox cover
see illustration: 301-070
01X311516A Offers

[Name] [Note] [QTY]
Support with reverse shaft Reverse gear 1
WHT002424 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M8X30 3
012311517 Offers

[Name] [QTY]
thrust washer 1
012311523G Offers

[Name] [Note] [QTY]
needle bearing - Reverse gear 2
22X30X16
012311531F Offers

[Name] [Note] [QTY]
reverse gear Z=15 1
01X311443 Offers

[Name] [Note] [QTY]
Belleville spring 61,85X49X2 1
[Name] [Note]
Bearing housing
see illustration: 301-070
[Name] [Note]
Bearing housing
see illustration: 301-035
01X311445 Offers

[Name] [Note] [QTY]
grooved ball bearing 25X62X16 1
Replacements: 01X311445D
01X311373 Offers

[Name] [Note] [QTY]
roller sleeve 32X50X20,6 1
01X311413A Offers

[Name] [QTY]
thrust washer 1
012311213J Offers

[Name] [Note] [QTY]
Needle cage 3.gear 1
38X43X29,5
01X311183 Offers

[Name] [Note] [QTY]
Securing ring 38X2 1
