Synchronizer ring

Transmission output shaft

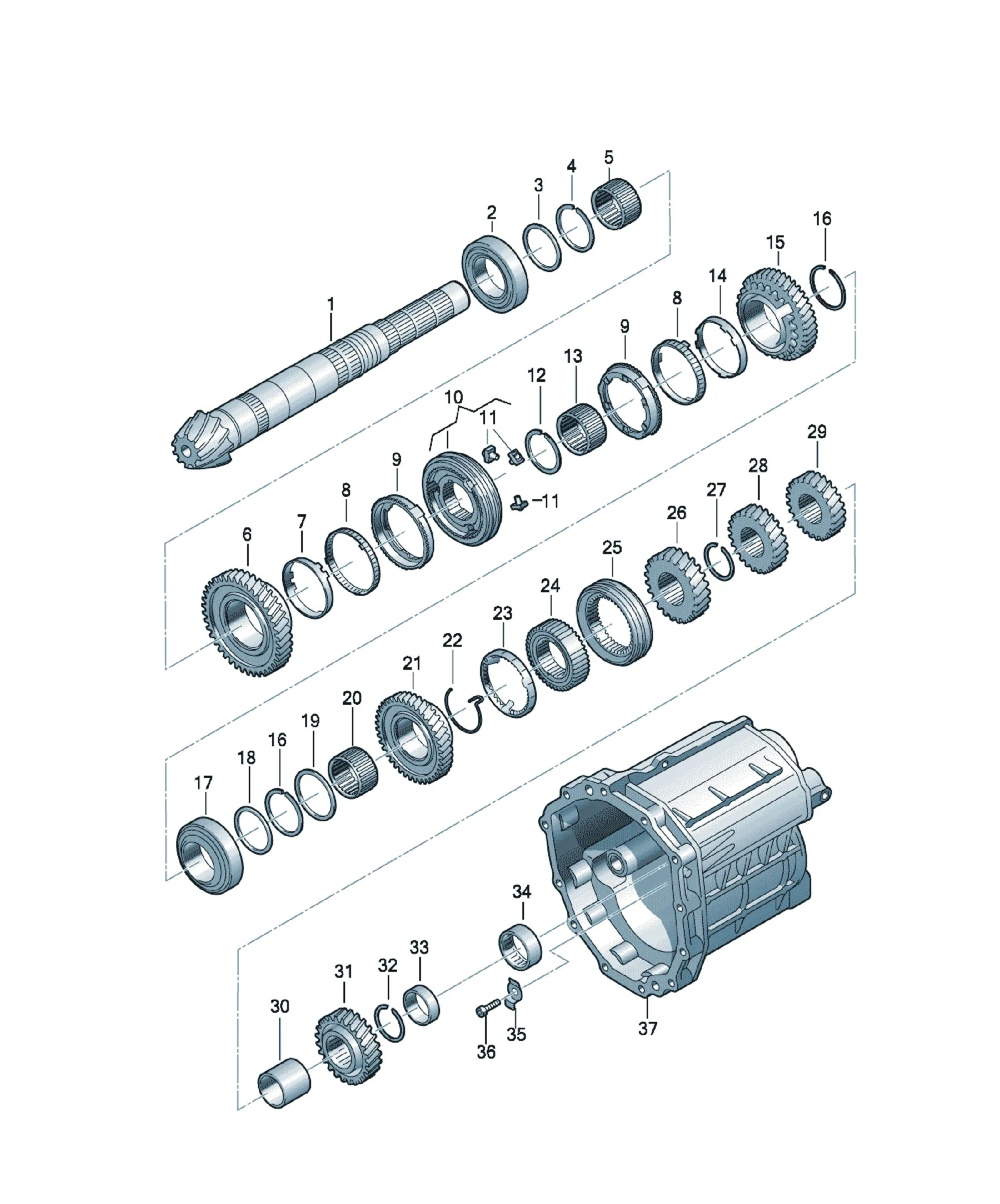

Assembly diagrams

6 diagrams

Parts

124 parts

[Name] [Note]
Output shaft
see illustration: 409-020
01X311239B Offers

[Name] [Note] [QTY]
synchronizing hub with locking collar 1./2.gear 1
Replacements: 01X311239C
01X311314B Offers

[Name] [QTY]
thrust piece 3
01X311287F Offers

[Name] [Note] [QTY]
Securing ring 47X2,08 X
01X311287E Offers

[Name] [Note] [QTY]
Securing ring 47X2,05 X
01X311287D Offers

[Name] [Note] [QTY]
Securing ring 47X2,02 X
01X311287C Offers

[Name] [Note] [QTY]
Securing ring 47X1,99 X
01X311287B Offers

[Name] [Note] [QTY]
Securing ring 47X1,96 X
01X311287A Offers

[Name] [Note] [QTY]
Securing ring 47X1,93 X
01X311287 Offers

[Name] [Note] [QTY]
Securing ring 47X1,9 X
01X311287J Offers

[Name] [Note] [QTY]
Securing ring 47X2,17 X
01X311287H Offers

[Name] [Note] [QTY]
Securing ring 47X2,14 X
01X311287G Offers

[Name] [Note] [QTY]
Securing ring 47X2,11 X
01X311229 Offers

[Name] [Note] [QTY]
needle bearing - 2.gear 1
47X52X29
01X311277B Offers

[Name] [Note] [QTY]
inner ring 2.gear 1
Replacements: 0B1311277
01X311260D Offers

[Name] [Note] [QTY]
change gear 2.gear 1
Z=39/19
Replacements: 01X311260E
01X311321A Offers

[Name] [Note] [QTY]
Securing ring 47X3,5 2
01X311211D Offers

[Name] [Note] [QTY]
Taper roller bearing 46,97X85X28,5 1
01X311393AT Offers

[Name] [Note] [QTY]
adjusting washer 0,33 X
01X311393M Offers

[Name] [Note] [QTY]
adjusting washer 0,89 X
01X311393AR Offers

[Name] [Note] [QTY]
adjusting washer 0,41 X
01X311393A Offers

[Name] [Note] [QTY]
adjusting washer 0,45 X
01X311393B Offers

[Name] [Note] [QTY]
adjusting washer 0,49 X
01X311393AS Offers

[Name] [Note] [QTY]
adjusting washer 0,37 X
01X311393D Offers

[Name] [Note] [QTY]
adjusting washer 0,57 X
01X311393E Offers

[Name] [Note] [QTY]
adjusting washer 0,61 X
01X311393F Offers

[Name] [Note] [QTY]
adjusting washer 0,65 X
01X311393H Offers

[Name] [Note] [QTY]
adjusting washer 0,73 X
01X311393J Offers

[Name] [Note] [QTY]
adjusting washer 0,77 X
01X311393K Offers

[Name] [Note] [QTY]
adjusting washer 0,81 X
01X311393L Offers

[Name] [Note] [QTY]
adjusting washer 0,85 X
01X311393AJ Offers

[Name] [Note] [QTY]
adjusting washer 1,49 X
01X311393AH Offers

[Name] [Note] [QTY]
adjusting washer 1,45 X
01X311393AG Offers

[Name] [Note] [QTY]
adjusting washer 1,41 X
01X311393AF Offers

[Name] [Note] [QTY]
adjusting washer 1,37 X
01X311393AE Offers

[Name] [Note] [QTY]
adjusting washer 1,33 X
01X311393AD Offers

[Name] [Note] [QTY]
adjusting washer 1,29 X
01X311393AC Offers

[Name] [Note] [QTY]
adjusting washer 1,25 X
01X311393AB Offers

[Name] [Note] [QTY]
adjusting washer 1,21 X
01X311393AA Offers

[Name] [Note] [QTY]
adjusting washer 1,17 X
01X311393P Offers

[Name] [Note] [QTY]
adjusting washer 0,97 X
01X311393T Offers

[Name] [Note] [QTY]
adjusting washer 1,13 X
01X311393S Offers

[Name] [Note] [QTY]
adjusting washer 1,09 X
01X311393R Offers

[Name] [Note] [QTY]
adjusting washer 1,05 X
01X311393Q Offers

[Name] [Note] [QTY]
adjusting washer 1,01 X
01X311393G Offers

[Name] [Note] [QTY]
adjusting washer 0,69 X
01X311393N Offers

[Name] [Note] [QTY]
adjusting washer 0,93 X
01X311393C Offers

[Name] [Note] [QTY]
adjusting washer 0,53 X
WHT000064 Offers

[Name] [Note] [QTY]
thrust washer 46,9X62X5 1
01X311220B Offers

[Name] [Note] [QTY]
Taper roller bearing 48,6X90X23,66 1
01X311116 Offers

[Name] [Note] [QTY]
needle bearing - Reverse gear 1
46,8X51,8X26,6
01X311217 Offers

[Name] [Note] [QTY]
sliding wheel for reverse gear Z=34 1
012311311D Offers

[Name] [Note] [QTY]
Spring Reverse gear 1
01X311763E Offers

[Name] [Note] [QTY]
synchronizer ring Reverse gear
G >> 29 04 7 1
Replacements: 01X311763F
01X311763F Offers

[Name] [Note] [QTY]
synchronizer ring Reverse gear
G 30 04 7>> 1
Replacements: 0CS311763
01X311762C Offers

[Name] [Note] [QTY]
synchronizing hub Reverse gear 1
01X311764B Offers

[Name] [Note] [QTY]
Sliding sleeve Reverse gear
G 30 04 7>> 1
Replacements: 0B1311764A
01X311285 Offers

[Name] [Note] [Model info] [QTY]
gear 3.gear GVC 1
Z=37/26
01X311285A Offers

[Name] [Note] [Model info] [QTY]
gear 3.gear GYF,GYX 1
Z=37/27
01X311317C Offers

[Name] [Note] [QTY]
Securing ring 44,5X2,02 X
01X311317D Offers

[Name] [Note] [QTY]
Securing ring 44,5X2,06 X
01X311317E Offers

[Name] [Note] [QTY]
Securing ring 44,5X2,10 X
01X311317 Offers

[Name] [Note] [QTY]
Securing ring 44,5X1,9 X
01X311317A Offers

[Name] [Note] [QTY]
Securing ring 44,5X1,94 X
01X311317B Offers

[Name] [Note] [QTY]
Securing ring 44,5X1,98 X
01X311351E Offers

[Name] [Note] [Model info] [QTY]
gear 4-speed GVC 1
Z=33/31
01X311351C Offers

[Name] [Note] [Model info] [QTY]
gear 4-speed GYF,GYX 1
Z=32/31
01X311361C Offers

[Name] [Note] [Model info] [QTY]
gear 5-speed GVC 1
Z=29/34
01X311361A Offers

[Name] [Note] [Model info] [QTY]
gear 5-speed GYX 1
Z=28/35
01X311361F Offers

[Name] [Note] [Model info] [QTY]
gear 5-speed GYF 1
Z=29/35
01X311391AG Offers

[Name] [Note] [QTY]
adjusting washer 0,61 X
01X311391E Offers

[Name] [Note] [QTY]
adjusting washer 1,01 X
01X311391Q Offers

[Name] [Note] [QTY]
adjusting washer 1,41 X
01X311391P Offers

[Name] [Note] [QTY]
adjusting washer 1,37 X
01X311391N Offers

[Name] [Note] [QTY]
adjusting washer 1,33 X
01X311391M Offers

[Name] [Note] [QTY]
adjusting washer 1,29 X
01X311391L Offers

[Name] [Note] [QTY]
adjusting washer 1,25 X
01X311391K Offers

[Name] [Note] [QTY]
adjusting washer 1,21 X
01X311391J Offers

[Name] [Note] [QTY]
adjusting washer 1,17 X
01X311391H Offers

[Name] [Note] [QTY]
adjusting washer 1,13 X
01X311391D Offers

[Name] [Note] [QTY]
adjusting washer 0,97 X
01X311391AE Offers

[Name] [Note] [QTY]
adjusting washer 0,69 X
01X311391AJ Offers

[Name] [Note] [QTY]
adjusting washer 0,53 X
01X311391C Offers

[Name] [Note] [QTY]
adjusting washer 0,93 X
01X311391F Offers

[Name] [Note] [QTY]
adjusting washer 1,05 X
01X311391G Offers

[Name] [Note] [QTY]
adjusting washer 1,09 X
01X311391AF Offers

[Name] [Note] [QTY]
adjusting washer 0.65 X
01X311391AH Offers

[Name] [Note] [QTY]
adjusting washer 0,57 X
01X311391AD Offers

[Name] [Note] [QTY]
adjusting washer 0,73 X
01X311391AC Offers

[Name] [Note] [QTY]
adjusting washer 0,77 X
01X311391AB Offers

[Name] [Note] [QTY]
adjusting washer 0,81 X
01X311391A Offers

[Name] [Note] [QTY]
adjusting washer 0.85 X
01X311391B Offers

[Name] [Note] [QTY]
adjusting washer 0,89 X
01X311230 Offers

[Name] [QTY]
spacer bush 1
01X311389D Offers

[Name] [Note] [Model info] [QTY]
gear 6th gear GYX 1
Z=25/39
01X311389F Offers

[Name] [Note] [Model info] [QTY]
gear 6th gear GVC 1
Z=27/37
01X311389E Offers

[Name] [Note] [Model info] [QTY]
gear 6th gear GYF 1
Z=26/37
01X311344D Offers

[Name] [Note] [QTY]
Securing ring 35,5X2,02 X
01X311344E Offers

[Name] [Note] [QTY]
Securing ring 35,5X2,05 X
01X311344B Offers

[Name] [Note] [QTY]
Securing ring 35,5X1,96 X
01X311344H Offers

[Name] [Note] [QTY]
Securing ring 35,5X2,14 X
01X311344 Offers

[Name] [Note] [QTY]
Securing ring 35,5X1,9 X
01X311344A Offers

[Name] [Note] [QTY]
Securing ring 35,5X1,93 X
01X311344C Offers

[Name] [Note] [QTY]
Securing ring 35,5X1,99 X
01X311344K Offers

[Name] [Note] [QTY]
Securing ring 35,5X2,20 X
01X311344J Offers

[Name] [Note] [QTY]
Securing ring 35,5X2,17 X
01X311344F Offers

[Name] [Note] [QTY]
Securing ring 35,5X2,08 X
01X311344G Offers

[Name] [Note] [QTY]
Securing ring 35,5X2,11 X
N0119047 Offers

[Name] [Note] [QTY]
End cap 18 1
01X311429 Offers

[Name] [Note] [QTY]
roller sleeve 35,5X50,5X17 1
[Name] [Note]
Retaining plate
see illustration: 301-035
[Name] [Note]
Hexagon socket head bolt
see illustration: 301-035
[Name] [Note]
Transmission housing cover
see illustration: 301-035
N90860012 Offers

[Name] [Note] [QTY]
Securing ring 48,5X2,5 X
N90860013 Offers

[Name] [Note] [QTY]
Securing ring 48,5X2,53 X
N90860014 Offers

[Name] [Note] [QTY]
Securing ring 48,5X2,56 X
N90860015 Offers

[Name] [Note] [QTY]
Securing ring 48,5X2,59 X
N90860016 Offers

[Name] [Note] [QTY]
Securing ring 48,5X2,62 X
N90860017 Offers

[Name] [Note] [QTY]
Securing ring 48,5X2,65 X
01X311325B Offers

[Name] [Note] [QTY]
needle bearing - 1.gear 1
48,5X52,5X25,9
01X311250D Offers

[Name] [Note] [QTY]
change gear 1.gear 1
Z=33/9
Replacements: 01X311250F
01X311277G Offers

[Name] [Note] [QTY]
inner ring 1.gear 1
01X311259G Offers

[Name] [QTY]
Intermediate ring 2
01X311247P Offers

[Name] [Note] [QTY]
synchronizer ring 1./2.gear 2
Replacements: 0B1311247B
