Engine cover and engine bay

Engine decorative cover

Assembly diagrams

6 diagrams

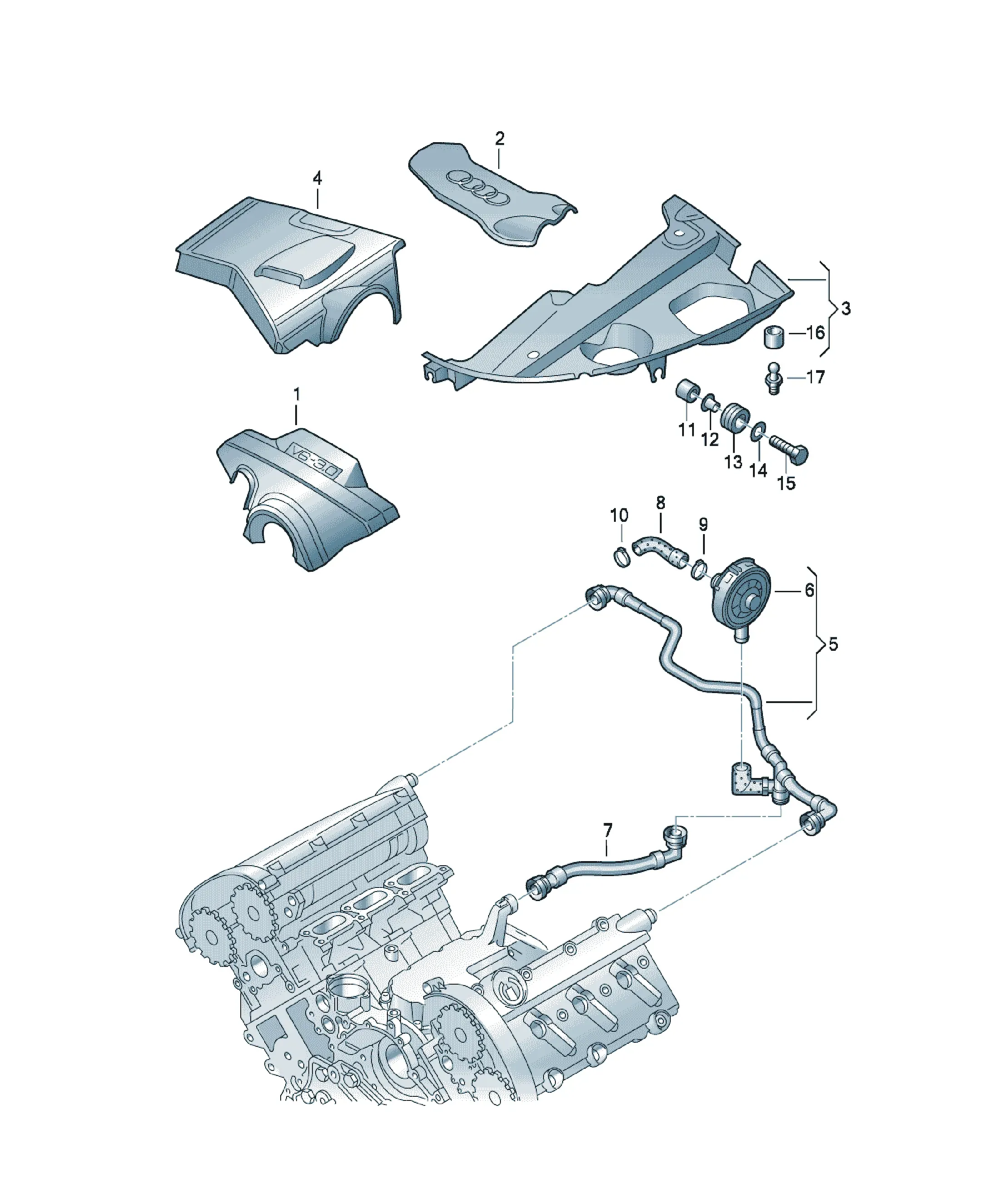

Engine decorative cover diagram

Parts

16 parts

Зажимная шайба
N90962502 Offers

[Name] [Note] [QTY]
Clamping washer B-2.0X9.75 4
Emblem
06C103940B Offers

[Name] [Note] [QTY]
maker's plate 1
also use: N 909 625 02 4
Accompanying details: N 90962502
Replacements: 06C103940C
06C103927D Offers

[Name] [Note] [QTY]
cover for engine compartment front 1
171407293B Offers

[Name] [Note] [QTY]
terminal 31X7 1
4D0959477 Offers

[Name] [QTY]
spacer bush 3
Replacements: 4D0959477A
078129734A Offers

[Name] [QTY]
Distance piece 1
078129669 Offers

[Name] [QTY]
Grommet 1
N0116954 Offers

[Name] [Note] [QTY]
Washer 6,1X18X1,3 1
N0103495 Offers

[Name] [Note] [QTY]
Hexagon bolt M6X45 1
06C103925C Offers

[Name] [Note] [QTY]
cover for engine compartment rear 1
[Name]
Not for this model
06C103217H Offers

[Name] [QTY]
Breather line 1
06C103245 Offers

[Name] [QTY]
Valve 1
06C103235A Offers

[Name] [QTY]
Breather line 1
06C103221F Offers

[Name] [QTY]
Vent hose 1
N90489801 Offers

[Name] [Note] [QTY]
clamp 33,5X10X0,8 1
