Engine cover and engine bay

Engine decorative cover

Assembly diagrams

6 diagrams

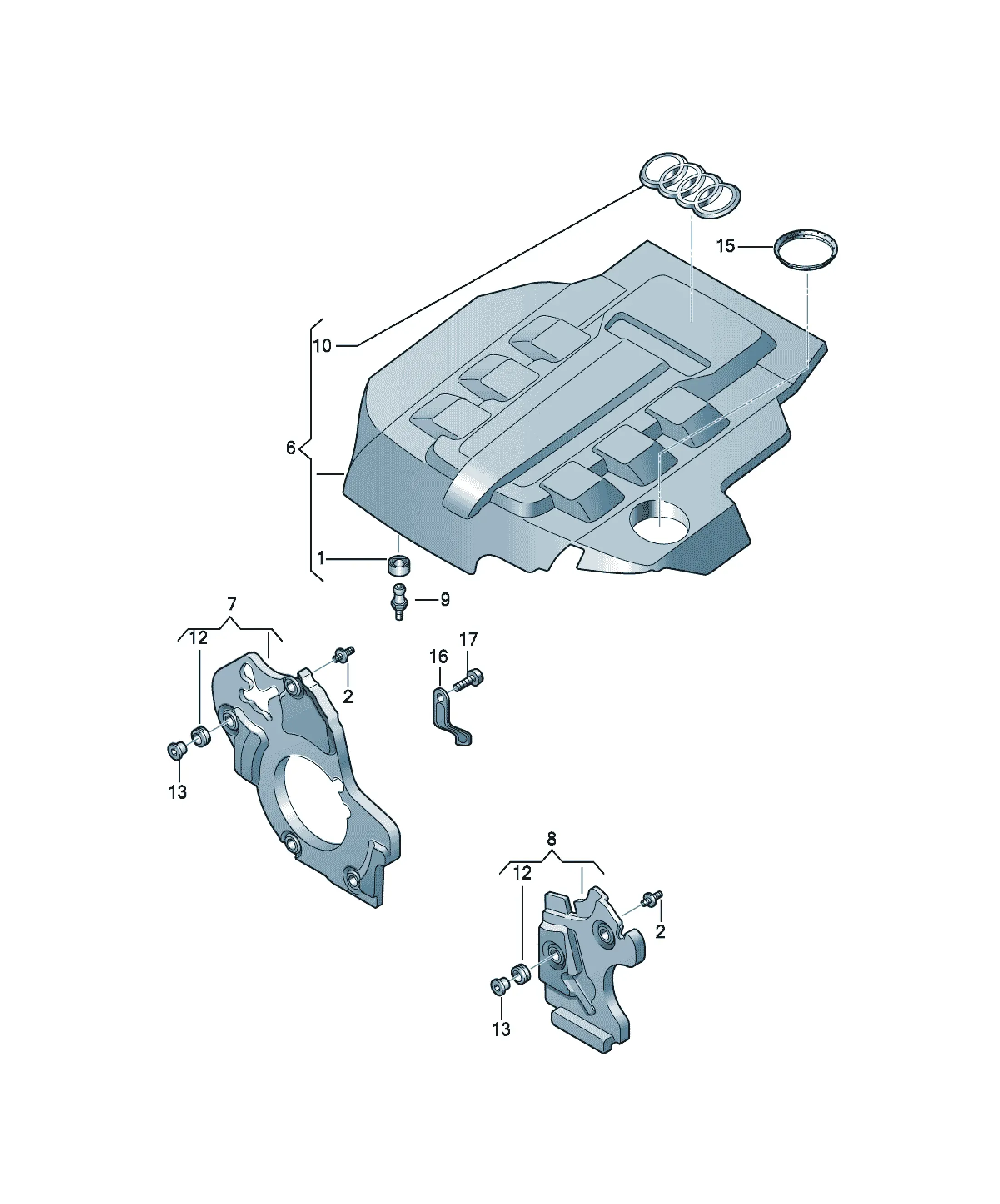

Engine decorative cover diagram

Parts

18 parts

Зажимная шайба
N90962502 Offers

[Name] [Note] [QTY]
Clamping washer B-2.0X9.75 4
07C103226 Offers

[Name] [QTY]
push-on connector 4
06C103940B Offers

[Name] [Note] [QTY]
maker's plate 1
also use: N 909 625 02 4
Accompanying details: N 90962502
Replacements: 06C103940C
059109151 Offers

[Name] [QTY]
Grommet
F >> 4F-6-013 500* 6
[Name]
F 4F-6-013 501>>*
No replacement part
[Name]
F 4F-6-013 501>>*
No replacement part
WHT000750 Offers

[Name] [Note] [QTY]
Collar nut with hexagon socket M6
F >> 4F-6-013 500* 6
[Name] [Note]
seal ring
see illustration: 103-055
Use item: 23
059103370 Offers

[Name] [QTY]
Bracket 1
N10170302 Offers

[Name] [Note] [QTY]
round hd. screw M6X10 1
WHT000939 Offers

[Name] [Note] [QTY]
Threaded pin M6X6,4/M6X12 4
059103925BJ Offers

[Name] [Note] [Model info] [QTY]
cover for intake manifold 'AUDI TDI' BPP,BSG 1
'V6 - 2,7'
059103925BA Offers

[Name] [Note] [Model info] [QTY]
cover for intake manifold 'AUDI TDI' BMK,BNG,ASB 1
'V6 - 3,0'
Replacements: 059103925BH
059103926R Offers

[Name] [QTY]
Cover
F >> 4F-6-013 500* 1
[Name]
F 4F-6-013 501>>*
No replacement part
059103926S Offers

[Name] [QTY]
Cover
F >> 4F-6-013 500* 1
[Name]
F 4F-6-013 501>>*
No replacement part
WHT000508 Offers

[Name] [Note] [QTY]
Ball pin M6 2
