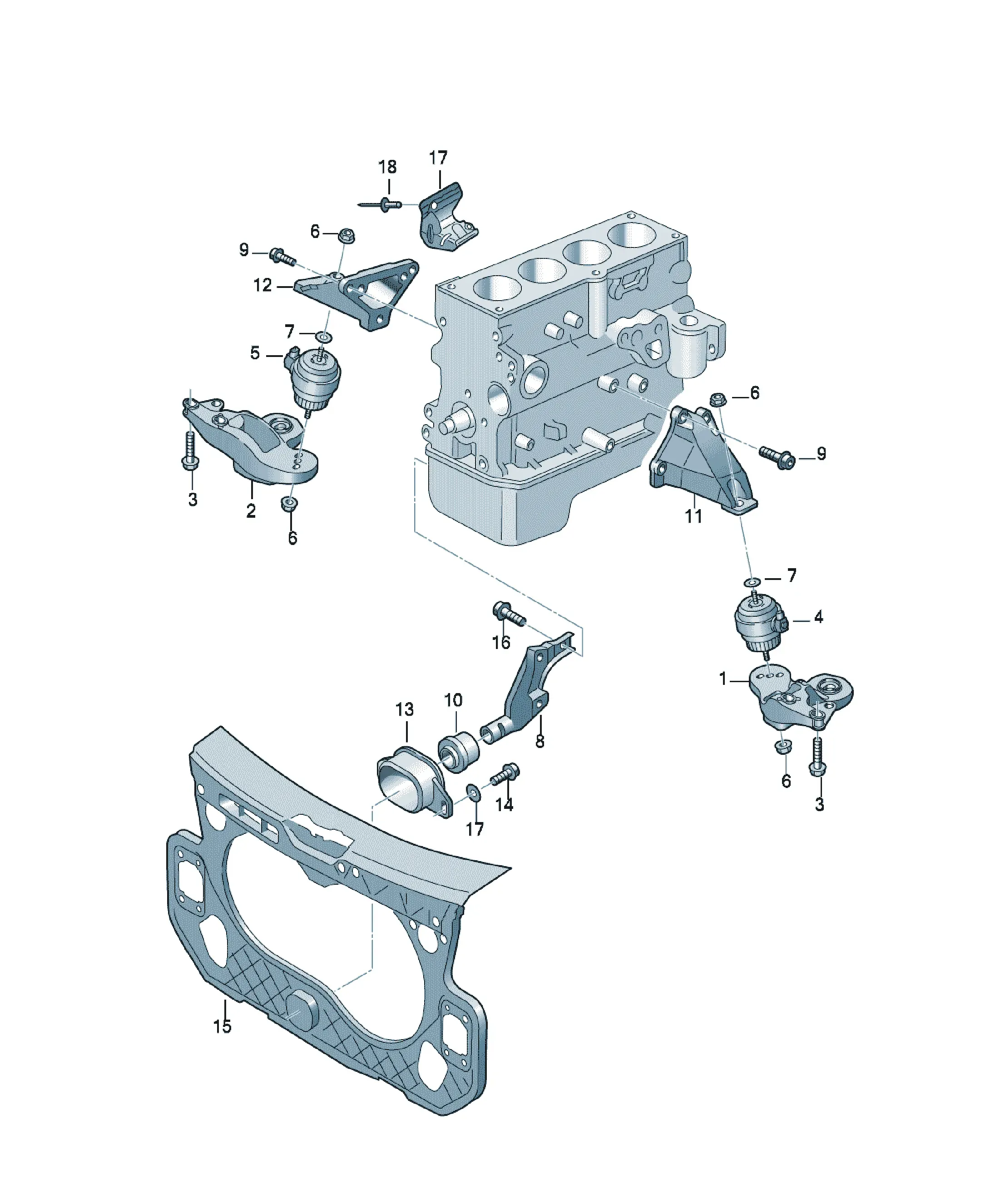

Engine and transmission mounting

[Name] [QTY]

Parts set for engine and gear lowering 1

repair set

N 91048401 hexagon head bolt (combi) M12X1,5X130X90 4

N 91066102 hexagon head bolt (combi) M10X35 6

N 91068701 hexagon head bolt (combi) M10X25 4

N 90863802 hexagon head bolt (combi) M8X22 4

[Name] [Note] [Model info] [QTY]

Console left BPJ,BYK 1

[Name] [Note] [Model info] [QTY]

Console left BLB,BNA,BRF, 1

BRE

[Name] [Model info] [QTY]

Stop buffer BLB,BNA,BRF, 1

BRE

[Name] [Model info] [QTY]

Stop buffer BPJ,BYK 1

[Name] [Note] [Model info] [QTY]

Support left BPJ,BYK 1

[Name] [Note] [Model info] [QTY]

Support left BLB,BNA,BRF, 1

BRE

[Name] [Note] [Model info] [QTY]

Support right BPJ,BYK 1

also use: 4F0 199 388 C

Accompanying details: 4F0199388C

[Name] [Note] [Model info] [QTY]

Support right BLB,BNA,BRF, 1

more than one significance, see symbols b, c, f, n or parts information BRE

[Name] [Note] [QTY]

Stop front 1

[Name] [Note] [QTY]

Hexagon bolt M8X30 4

[Name] [Note]

Cross tube

see illustration: 805-000

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M8X30 3

[Name] [Note] [QTY]

Washer 8,4X22,5X4 4

[Name] [Note] [QTY]

Cover plate for rubber-metal bearing right front 1

[Name] [Note] [Model info] [QTY]

Console right BLB,BNA,BRF, 1

BRE

[Name] [Note] [Model info] [QTY]

Console right BPJ,BYK 1

[Name] [Note] [QTY]

bolt,hex.hd.with shoul.(combi) M10X70 4

[Name] [Note] [Model info] [QTY]

hydro-mounting left BPJ,BYK 1

[Name] [Note] [Model info] [QTY]

hydro-mounting left BLB,BNA,BRF, 1

electric BRE

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

Possible single wire: 000 979 125 1,0 X

000 979 125 A 1,0 X

matching contact housing: 1J0 973 802

[Name] [Note] [Model info] [QTY]

hydro-mounting right

F 4F-6-065 001>>* Automatic infin. gear+ 1

BPJ,BYK

[Name] [Note] [Model info] [QTY]

hydro-mounting right

F >> 4F-6-065 000* Manual gearbox+ 1

BPJ

[Name] [Note] [Model info] [QTY]

hydro-mounting right Manual gearbox+ 1

BPJ

[Name] [Note] [Model info] [QTY]

hydro-mounting right BLB,BNA,BRF, 1

BRE

[Name] [Note] [QTY]

Hexagon flange nut, self-locking M10 4

[Name] [Note] [QTY]

Washer 10,1X30X1,5

F >> 4F-6-186 000* 2

Replacements: N 0116974

[Name] [Note] [QTY]

Washer 10,1X30X1,5

F 4F-6-186 001>>* 2

[Name] [Model info] [QTY]

Support BPJ,BYK 1

[Name] [Model info] [QTY]

Support BLB,BNA,BRF, 1

BRE

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M10X35

F 4F-6-180 001>>* 3

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M10X30

F 4F-6-180 001>>* 3

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M10X35

F >> 4F-6-180 000* 6

Replacements: N 90320206
