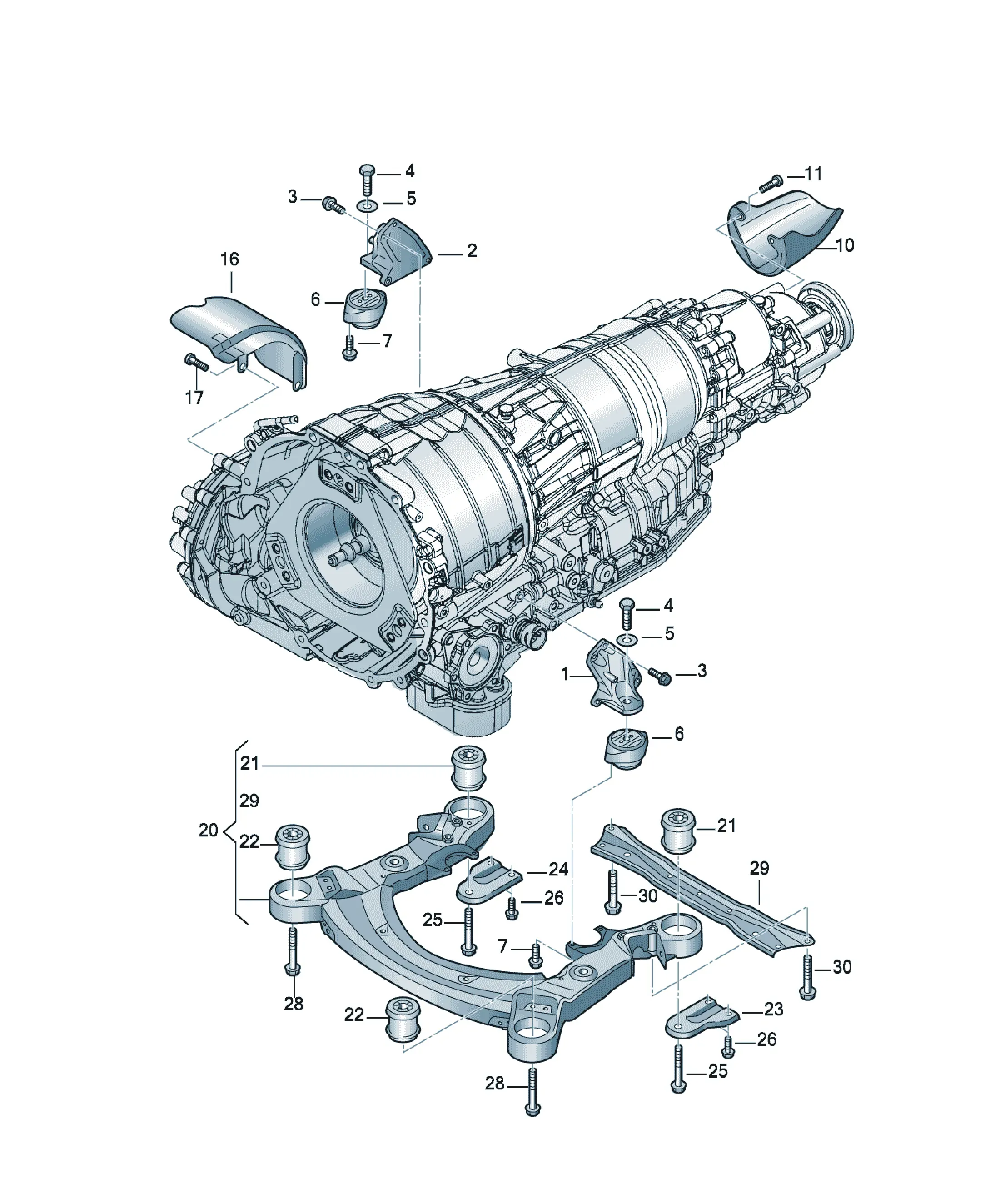

Front subframe

[Name] [QTY]

Parts set for engine and gear lowering 1

repair set

N 91048401 hexagon head bolt (combi) M12X1,5X130X90 4

N 91066102 hexagon head bolt (combi) M10X35 6

N 91068701 hexagon head bolt (combi) M10X25 4

N 90863802 hexagon head bolt (combi) M8X22 4

[Name] [QTY]

Clip X

Support frame

[Name] [Note] [QTY]

Gearbox support left 1

[Name] [QTY]

Guard plate 1

[Name] [Note] [QTY]

flat round head bolt M8X20 2

[Name] [QTY]

Guard plate 1

[Name] [Note] [QTY]

flat round head bolt M8X20 2

[Name] [Note] [QTY]

Gearbox support right 1

[Name] [QTY]

Support frame 1

[Name] [Note] [QTY]

Bonded rubber bush rear 2

[Name] [Note] [QTY]

Bonded rubber bush front 2

[Name] [Note] [QTY]

Support left 1

[Name] [Note] [QTY]

Support right 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M12X1,5X130X90 2

[Name] [Note] [QTY]

hexagon head bolt (combi) M10X25 4

[Name] [Note] [QTY]

hexagon head bolt (combi) M12X1,5X130X90 2

[Name] [QTY]

Brace 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X30 8

[Name] [Note] [QTY]

hexagon head bolt (combi) M10X80 4

[Name] [Note] [QTY]

Hexagon bolt M10X35 2

[Name] [Note] [QTY]

Washer 10,5X34X4 2

[Name] [QTY]

Bonded rubber bush 2

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X22 4
